Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ambient Temperature Sensor / Switch HVAC

Ambient Temperature Sensor / Switch HVAC

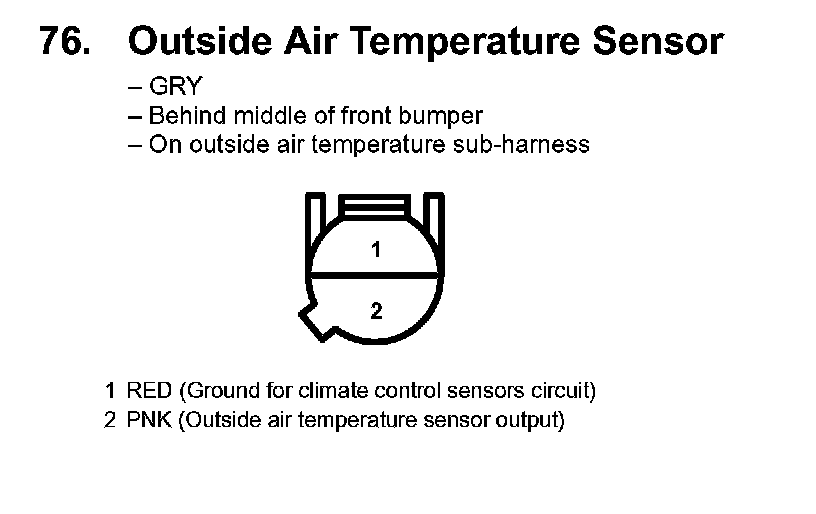

76 Outside Air Temperature Sensor:
