Home >> Acura >> 2009 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 241 - Fuel Pump Control Module ('09: SH-AWD)

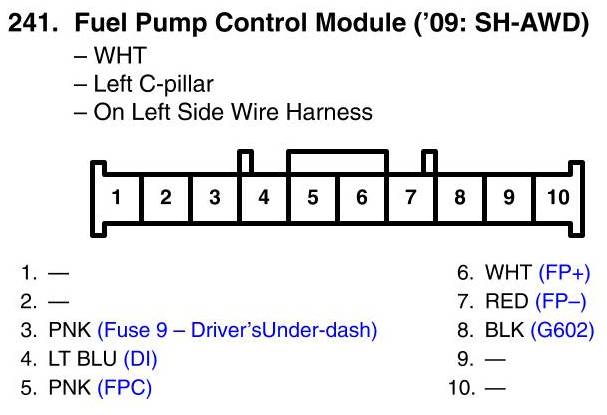

View 241 - Fuel Pump Control Module ('09: SH-AWD)
