Home >> Acura >> 2012 >> RDX AWD L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 334 - USB Jack In-Line Connector View

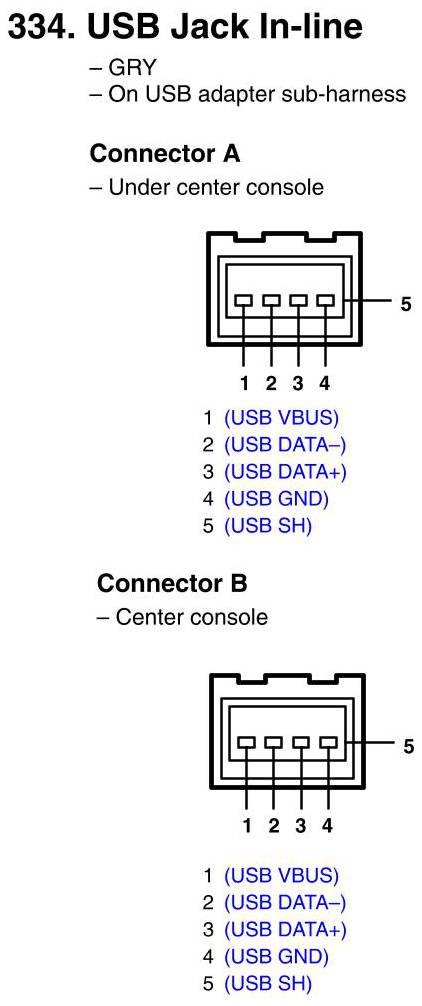

View 334 - USB Jack In-Line Connector View
