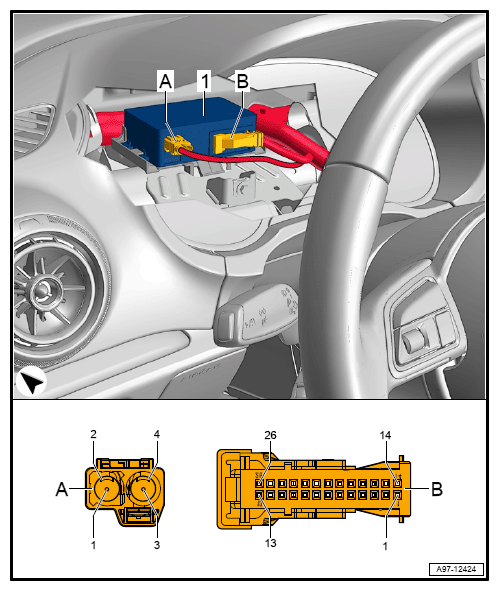

Control Module For Emergency Call Module And Communication Unit -J949- Location

  1. 1  - Control Module For Emergency Call Module And Communication Unit -J949-
  2. A  - 4-Pin Connector -T4BN-, Purple
  3. B  - 26-Pin Connector -T26E-, Black
G12759860Courtesy of AUDI OF AMERICA, LLC
