Pin Arrangements Vehicle Electrical System Control Module -J519-

Courtesy of AUDI OF AMERICA, LLC

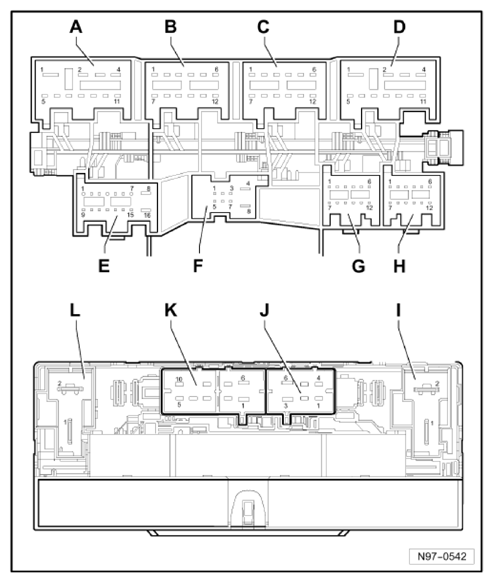

1. A  - 11-Pin Connector -T11B-, Black
2. B  - 12-Pin Connector -T12C-, Black
3. C  - 12-Pin Connector -T12D-, Brown
4. D  - 11-Pin Connector -T11C-, Brown
5. E  - 16-Pin Connector -T16A-, Black
6. F  - 8-Pin Connector -T8H-, Black
7. G  - 12-Pin Connector -T12E-, Black
8. H  - Not Used
9. I  - Not Used J - 6-Pin Connector -T6H-, Black
10. K  - 10-Pin Connector -T10D-, Black
11. L  - Double Connector -T2T-, Black
