Home >> Buick >> 2003 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column

Steering Column

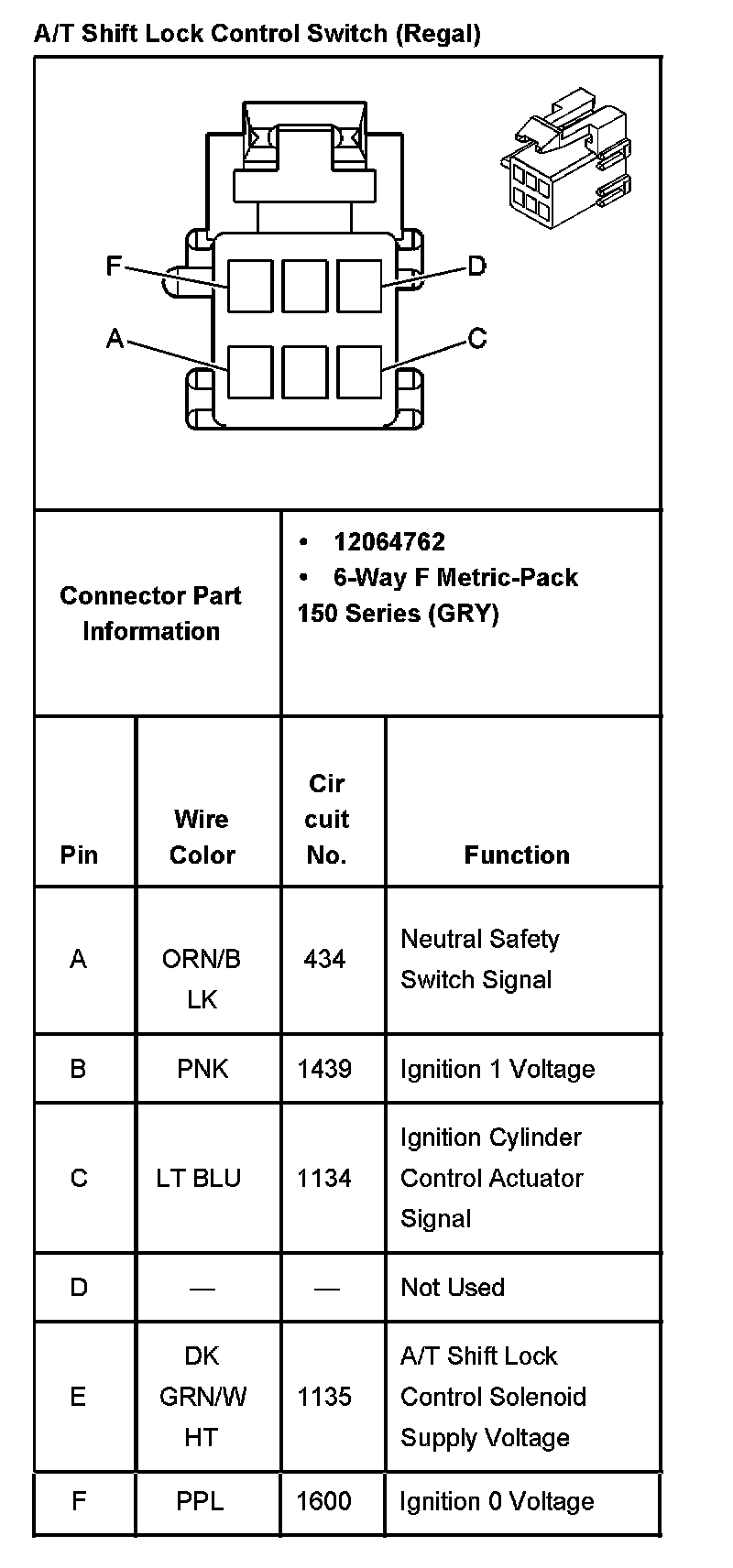

A/T Shift Lock Control Switch:

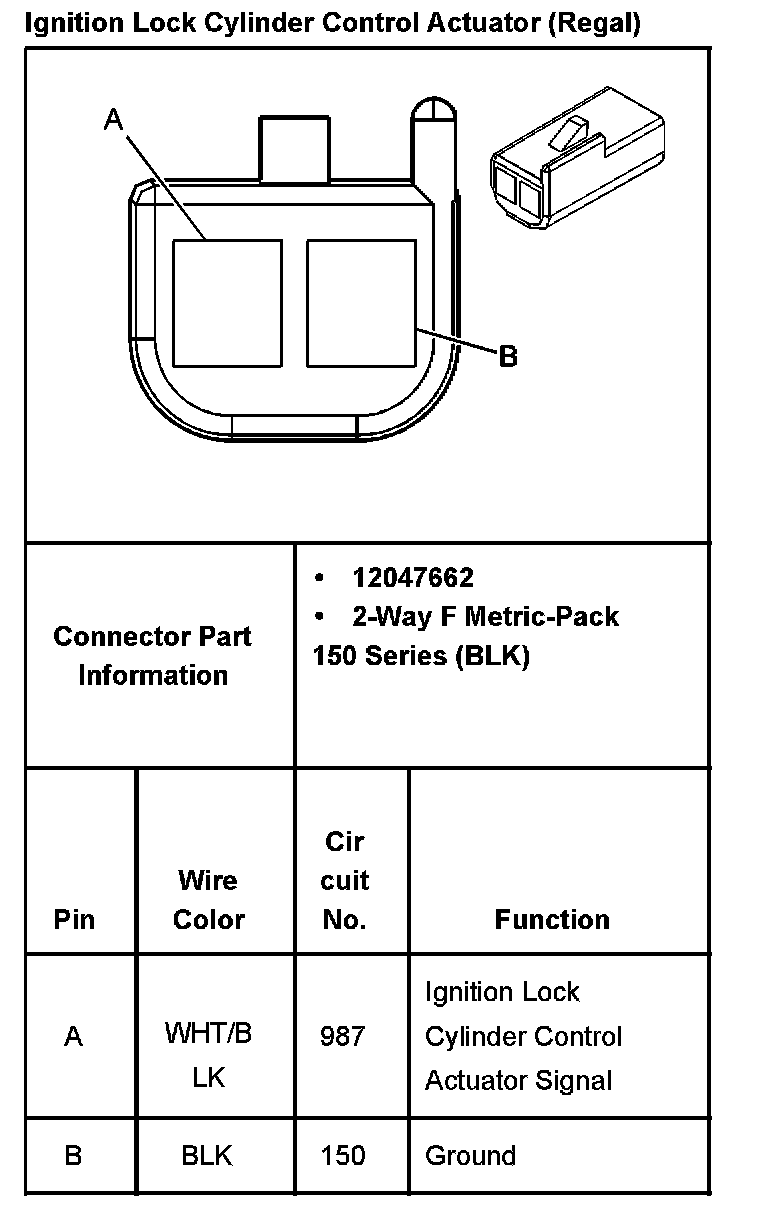

Ignition Lock Cylinder Control Actuator (Regal):
