Cellular Phone Microphone
Cellular Phone Microphone

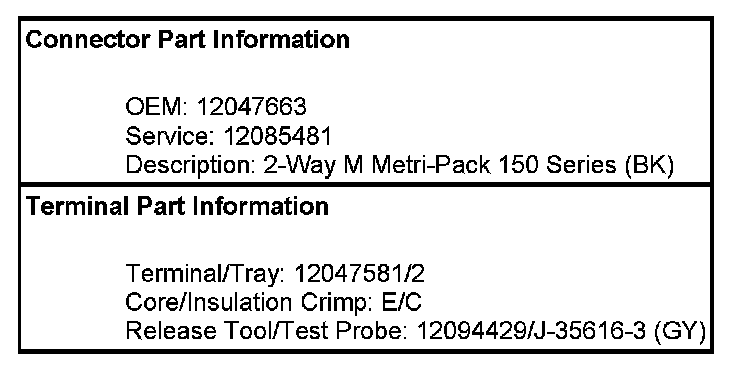

Entertainment/Communication Connector End Views

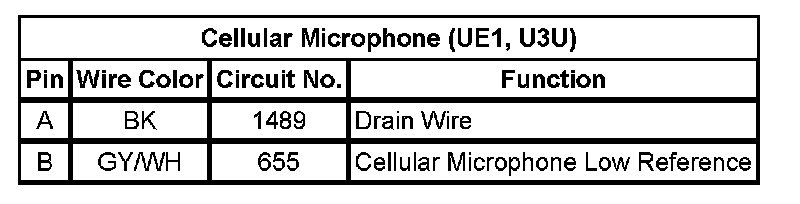

Cellular Microphone (UE1, U3U)
