Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Switch

Seat Temperature Switch

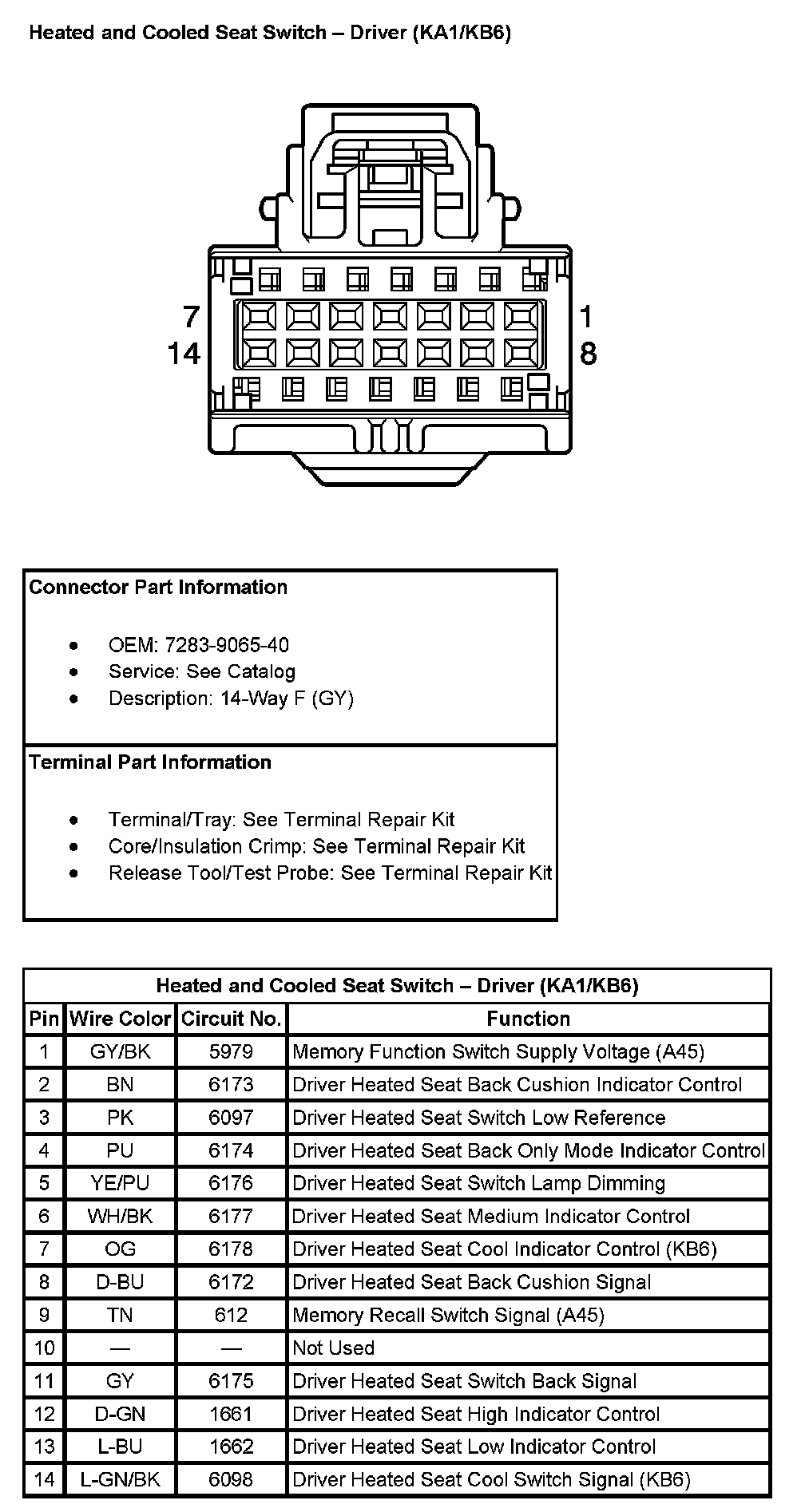

Heated And Cooled Seat Switch - Driver (With RPO Code KA1/KB6):

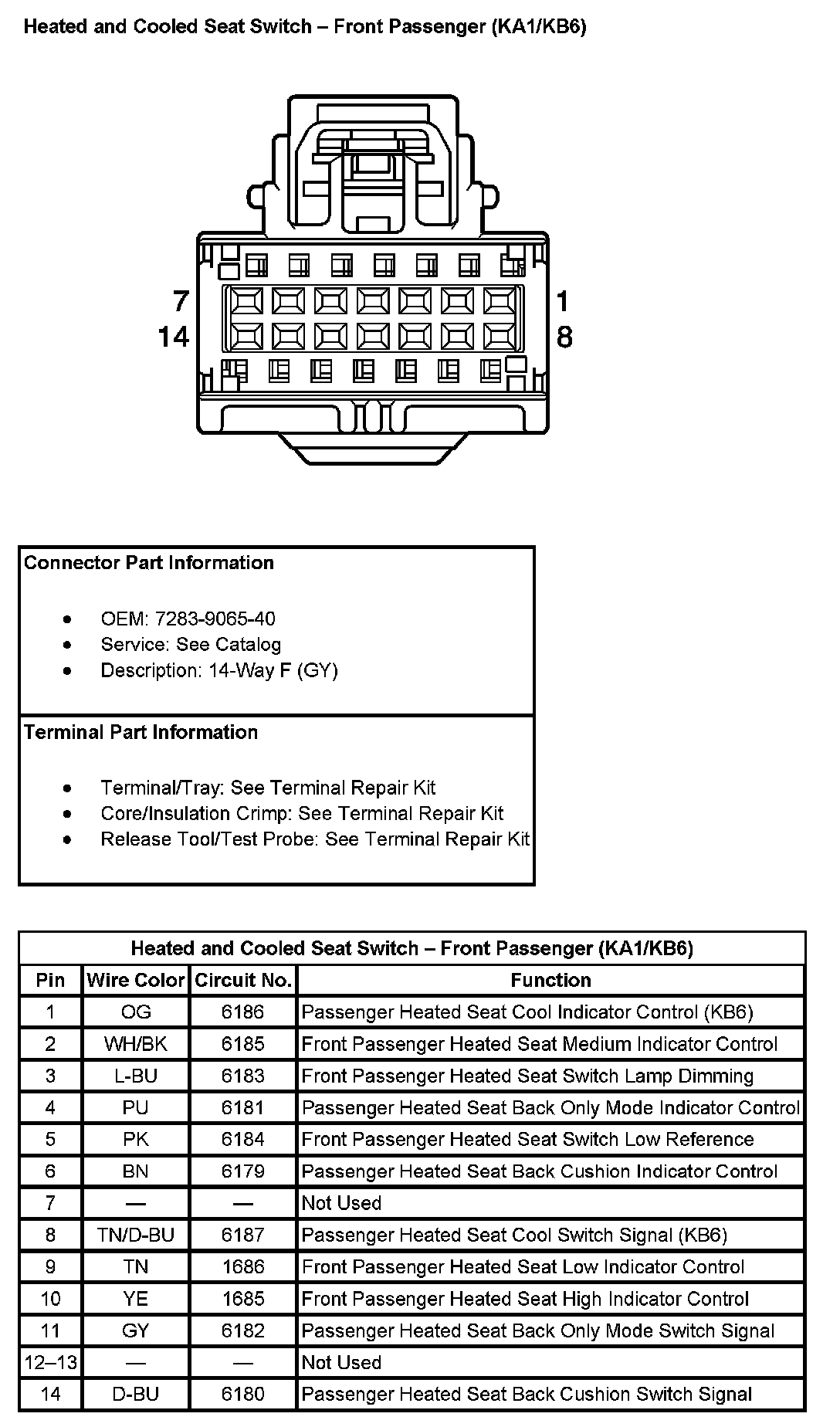

Heated And Cooled Seat Switch - Front Passenger (With RPO Code KA1/KB6):
