Parking Assist Control Module



Object Detection Connector End Views

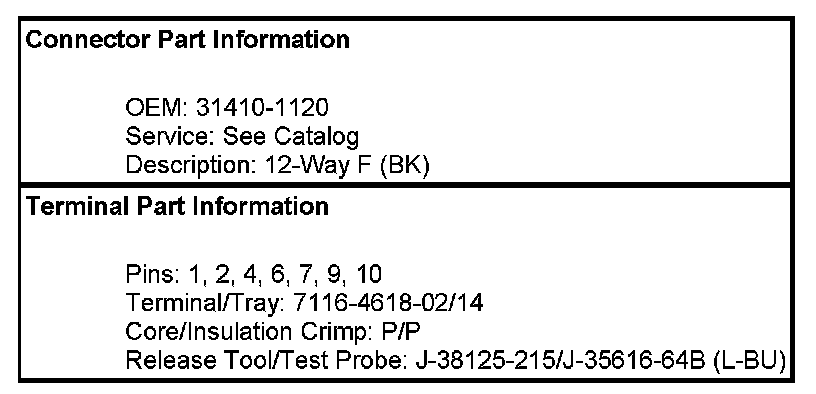

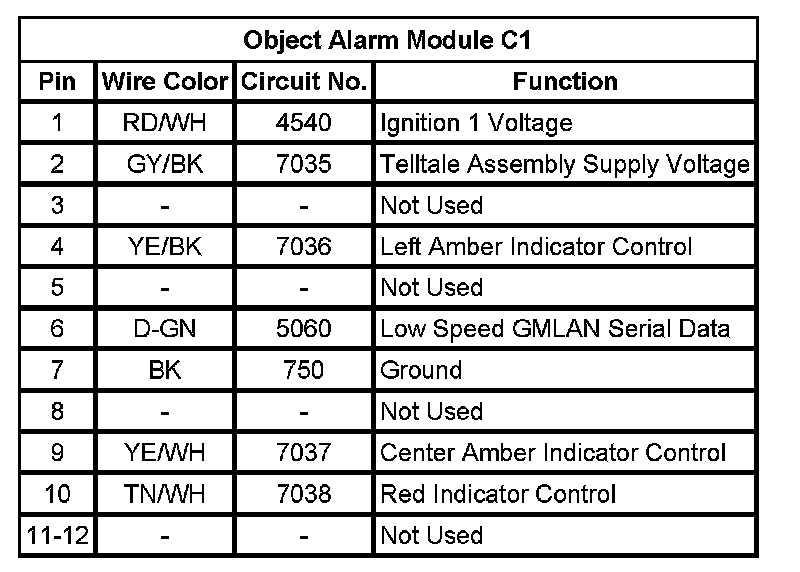

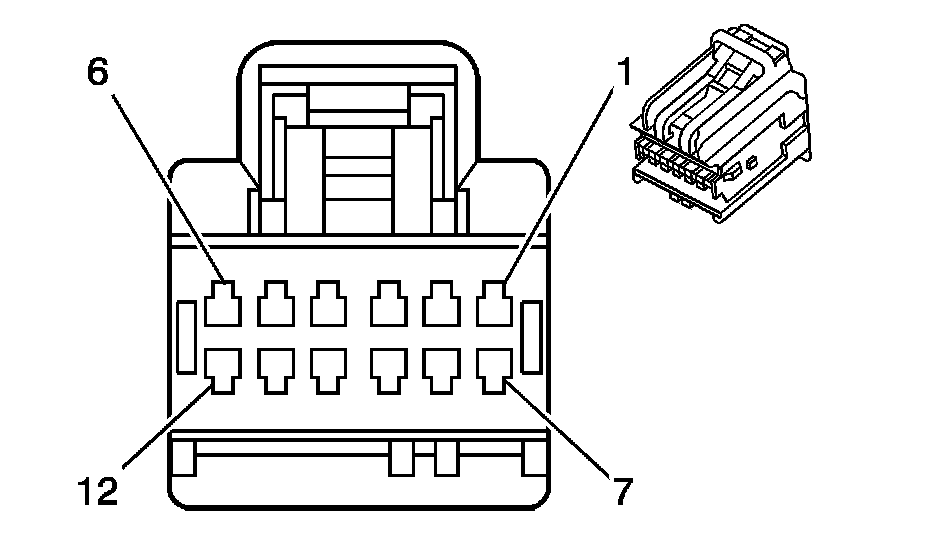

Object Alarm Module C1

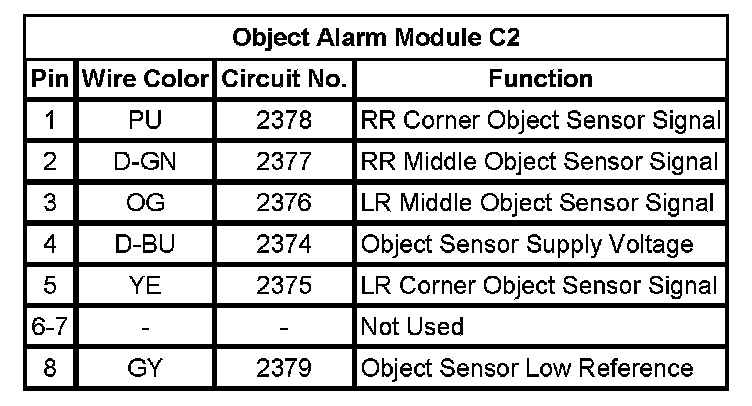

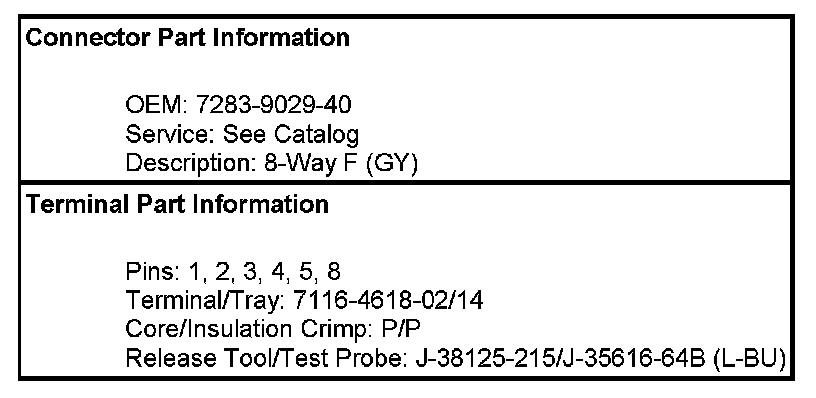

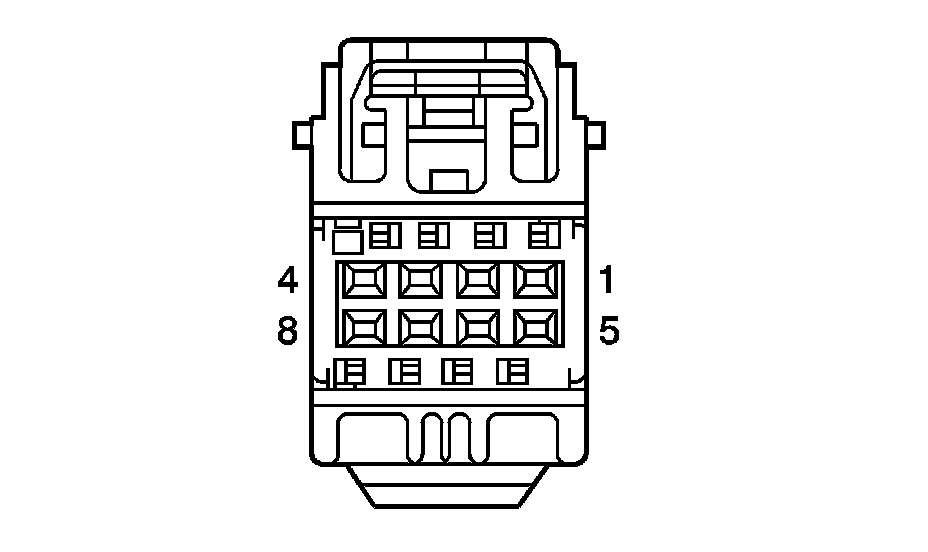

Object Alarm Module C2
