Home >> Buick >> 2007 >> Lucerne V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

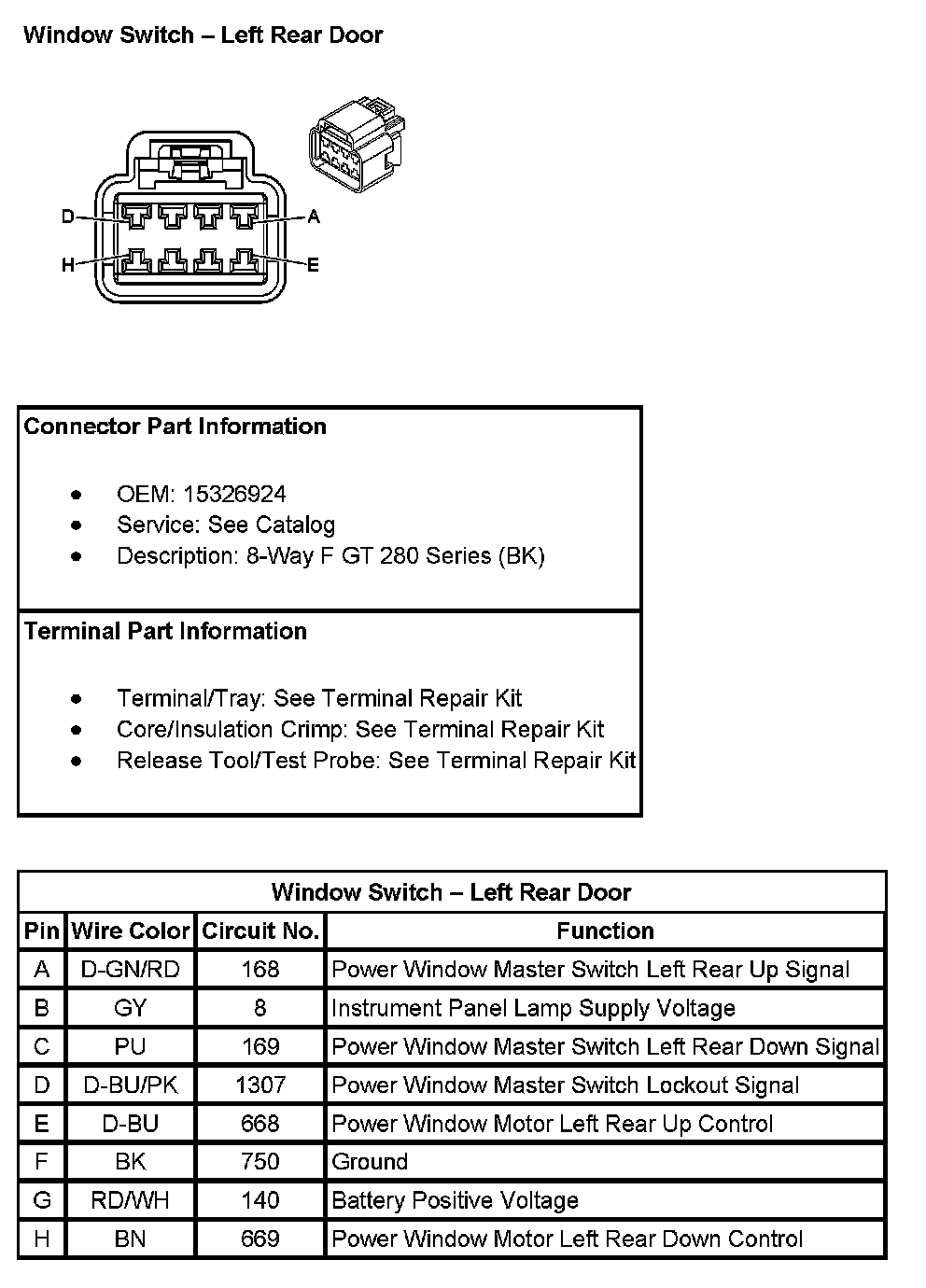

Window Switch - Left Rear Door:

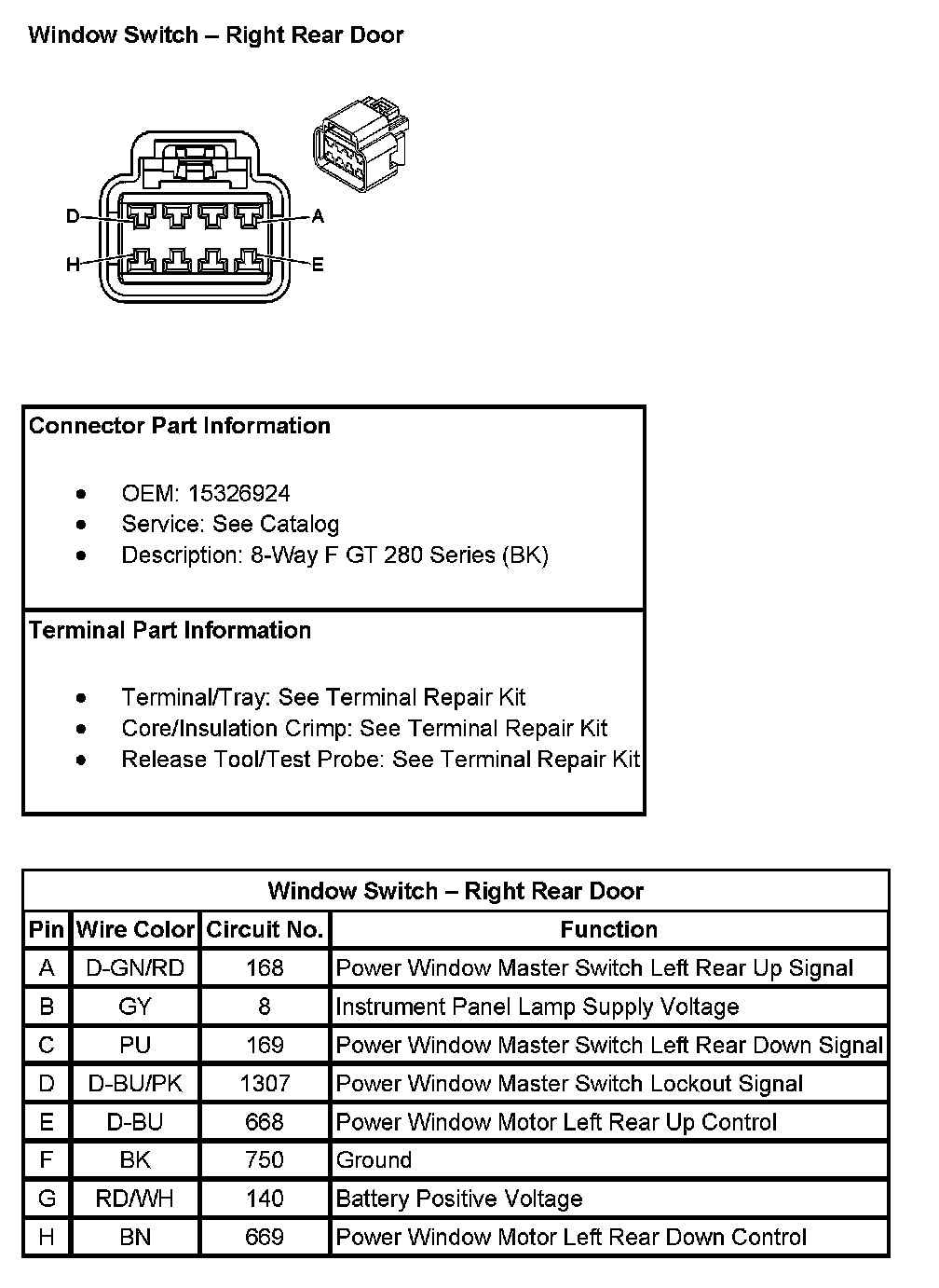

Window Switch - Right Rear Door:
