Impact Sensor



Component Connector End Views

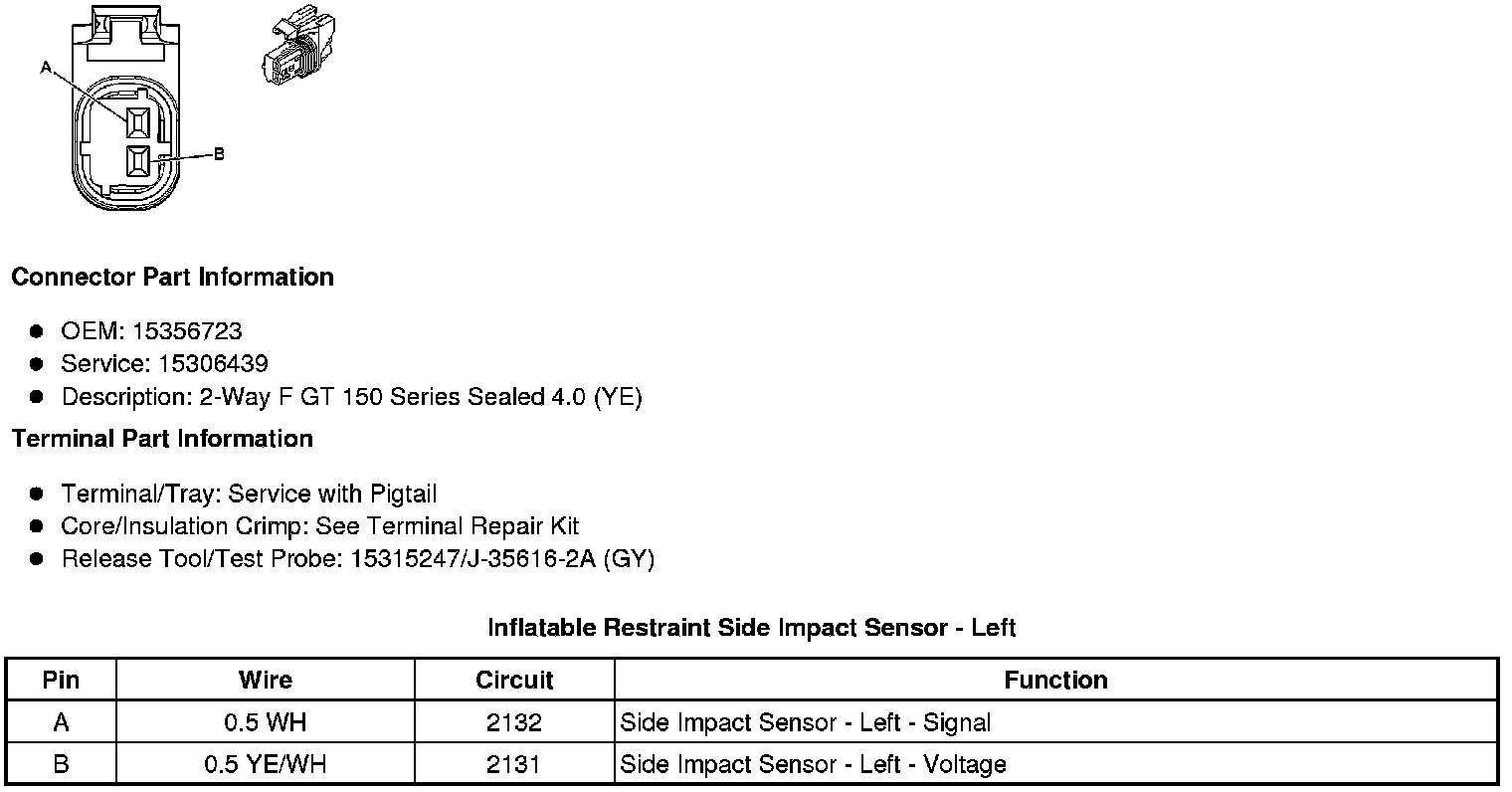

Inflatable Restraint Side Impact Sensor - Left

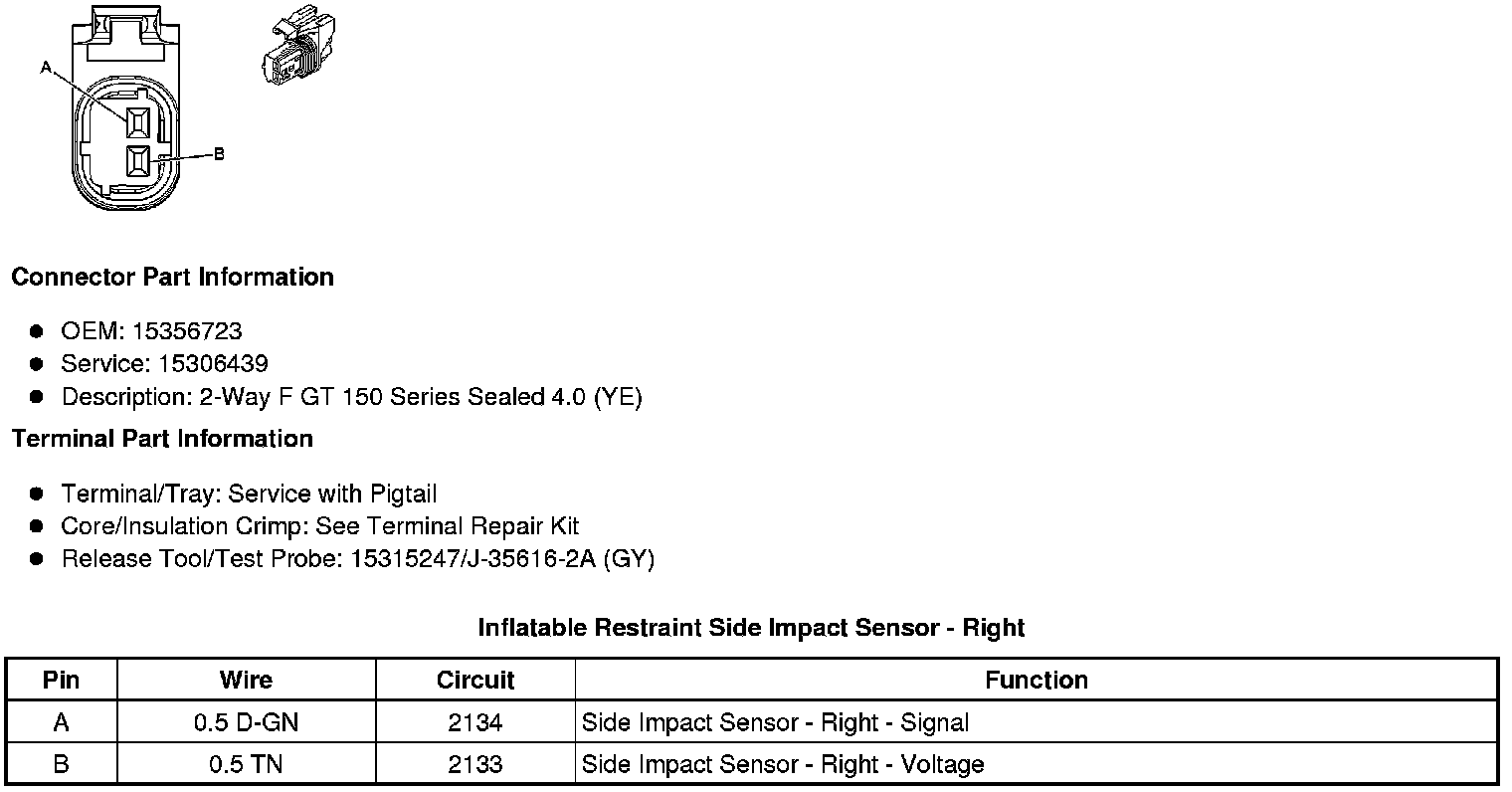

Inflatable Restraint Side Impact Sensor - Right
