LEMON Manuals: Even more car manuals for everyone
Home >> Cadillac >> 2003 >> Seville V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Lower Control Valve Body Assembly

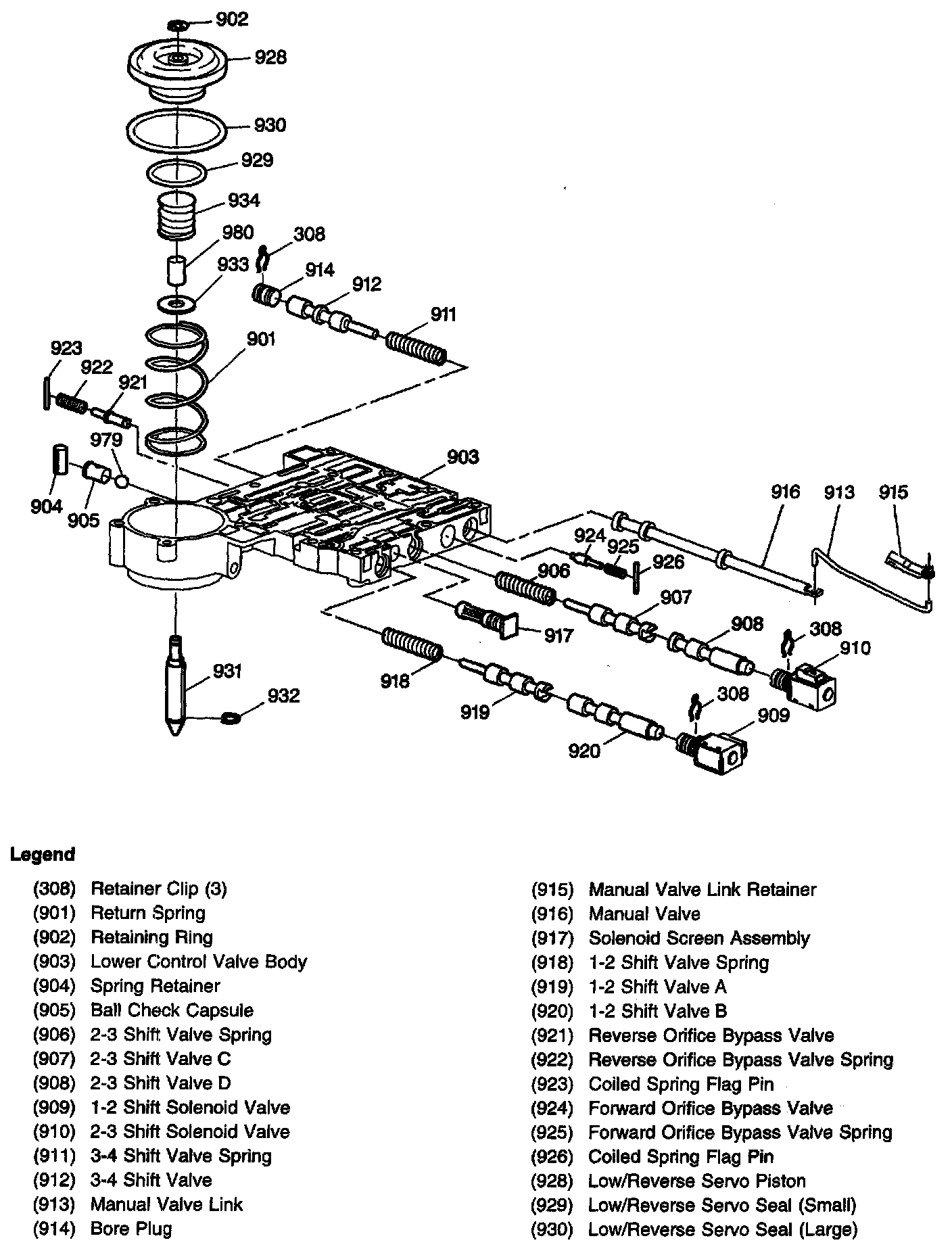

Lower Control Valve Body Assembly

Part 1 Of 2:



Part 2 Of 2:
