Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Diagrams >> Displays and Gages Connector End Views

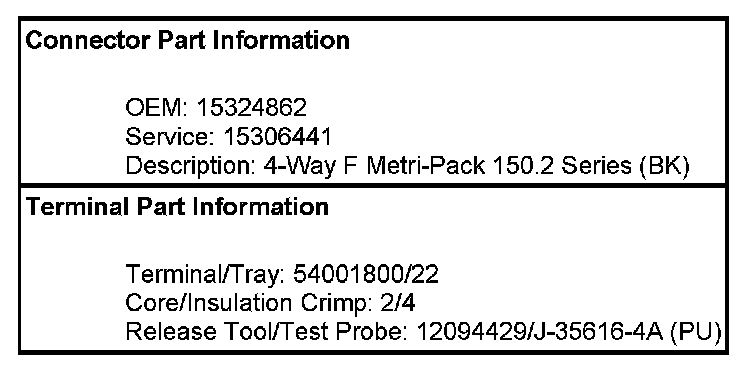

Displays and Gages Connector End Views



Displays and Gages Connector End Views

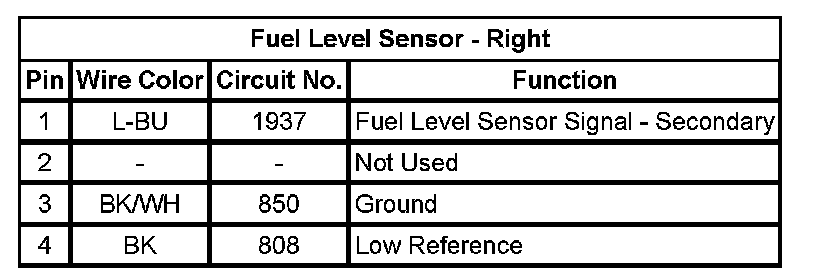

Fuel Level Sensor - Right
