Home >> Cadillac >> 2008 >> CTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Temperature Sensor/Switch, Transfer Case

Temperature Sensor/Switch, Transfer Case

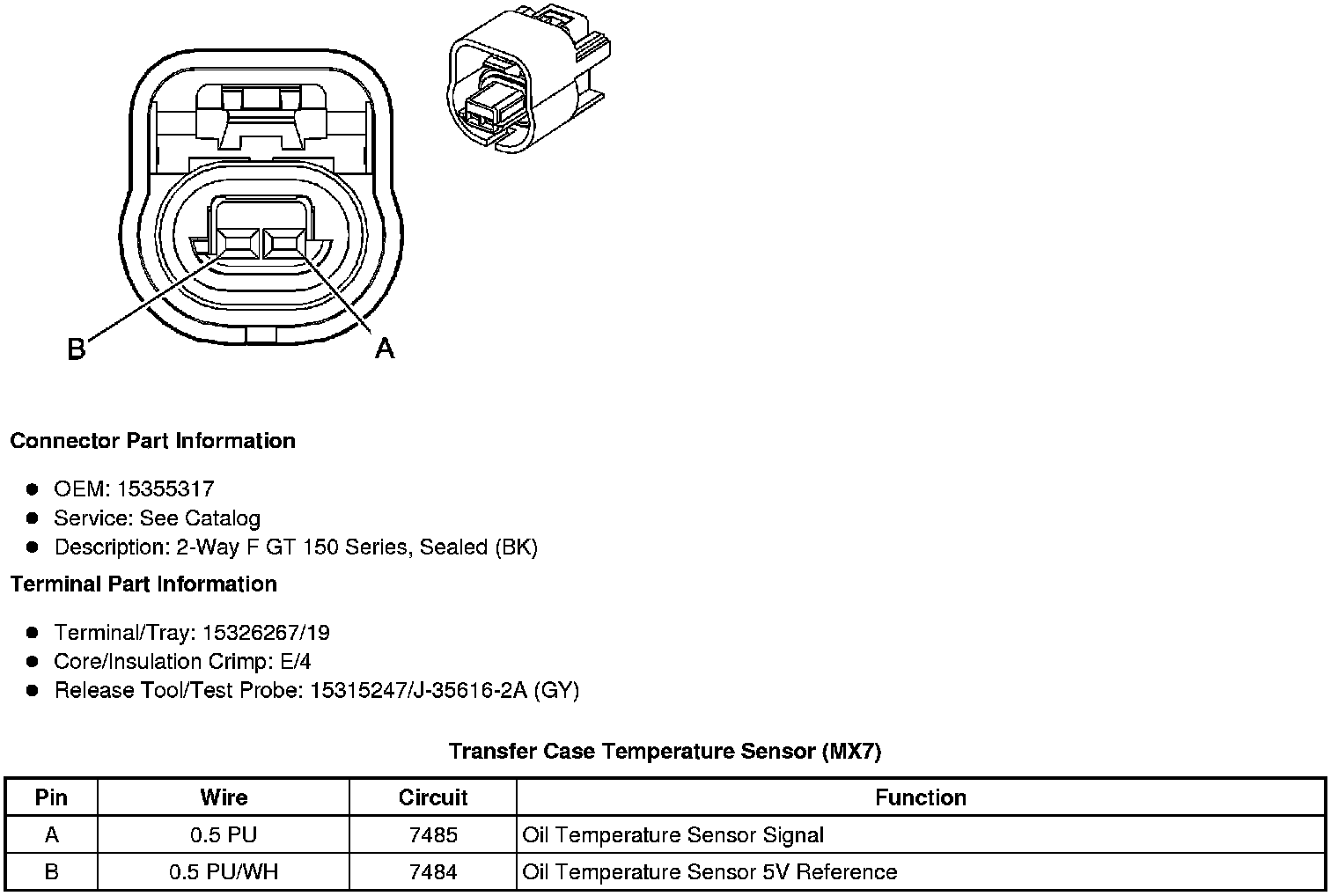

Transfer Case Temperature Sensor (MX7)
