Home >> Cadillac >> 2008 >> CTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Monitoring System >> Tire Pressure Module

Tire Pressure Module

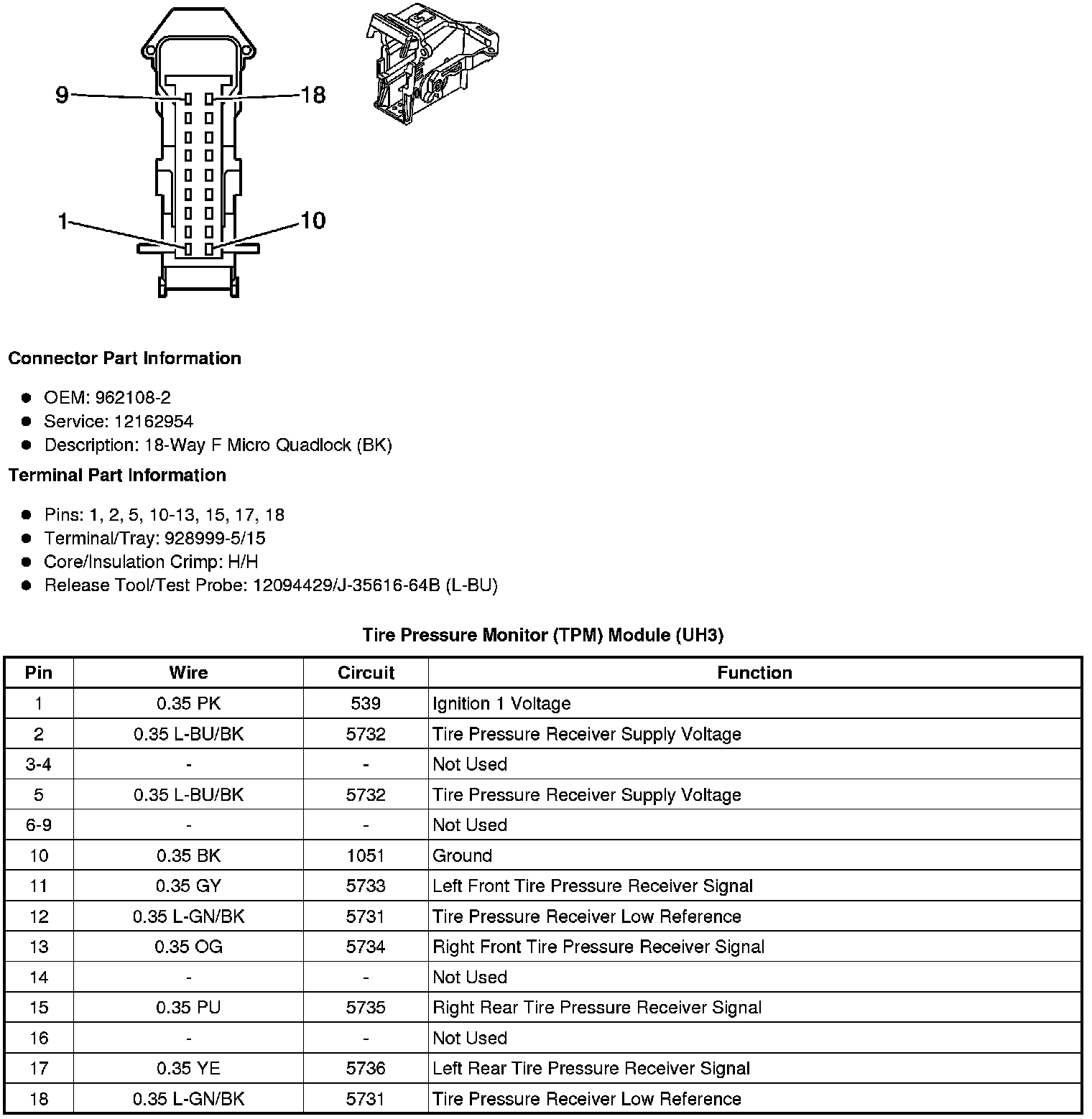

Tire Pressure Monitor (TPM) Module (UH3)

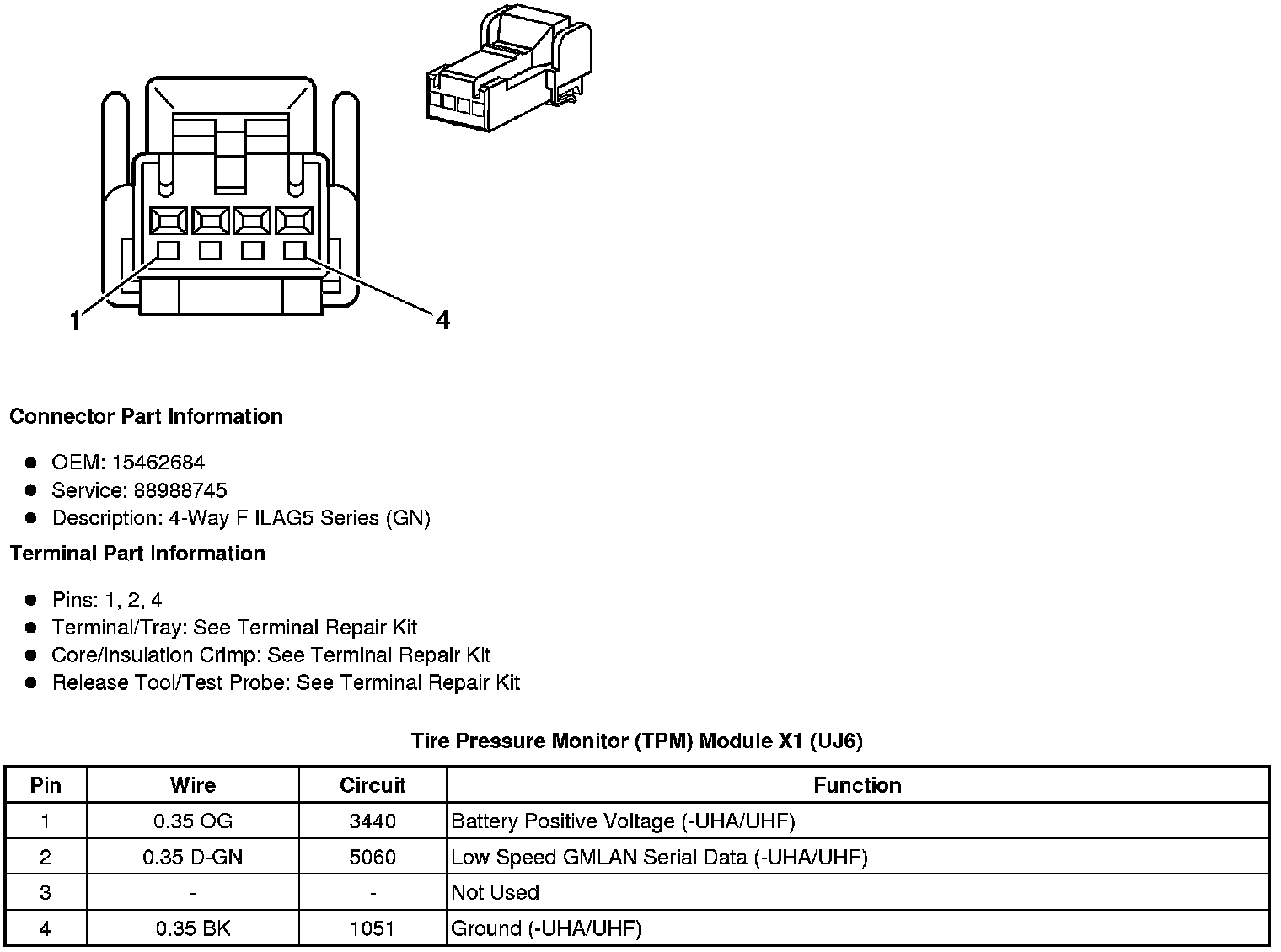

Tire Pressure Monitor (TPM) Module X1 (UJ6)
