Steering Mounted Controls Assembly



Component Connector End Views

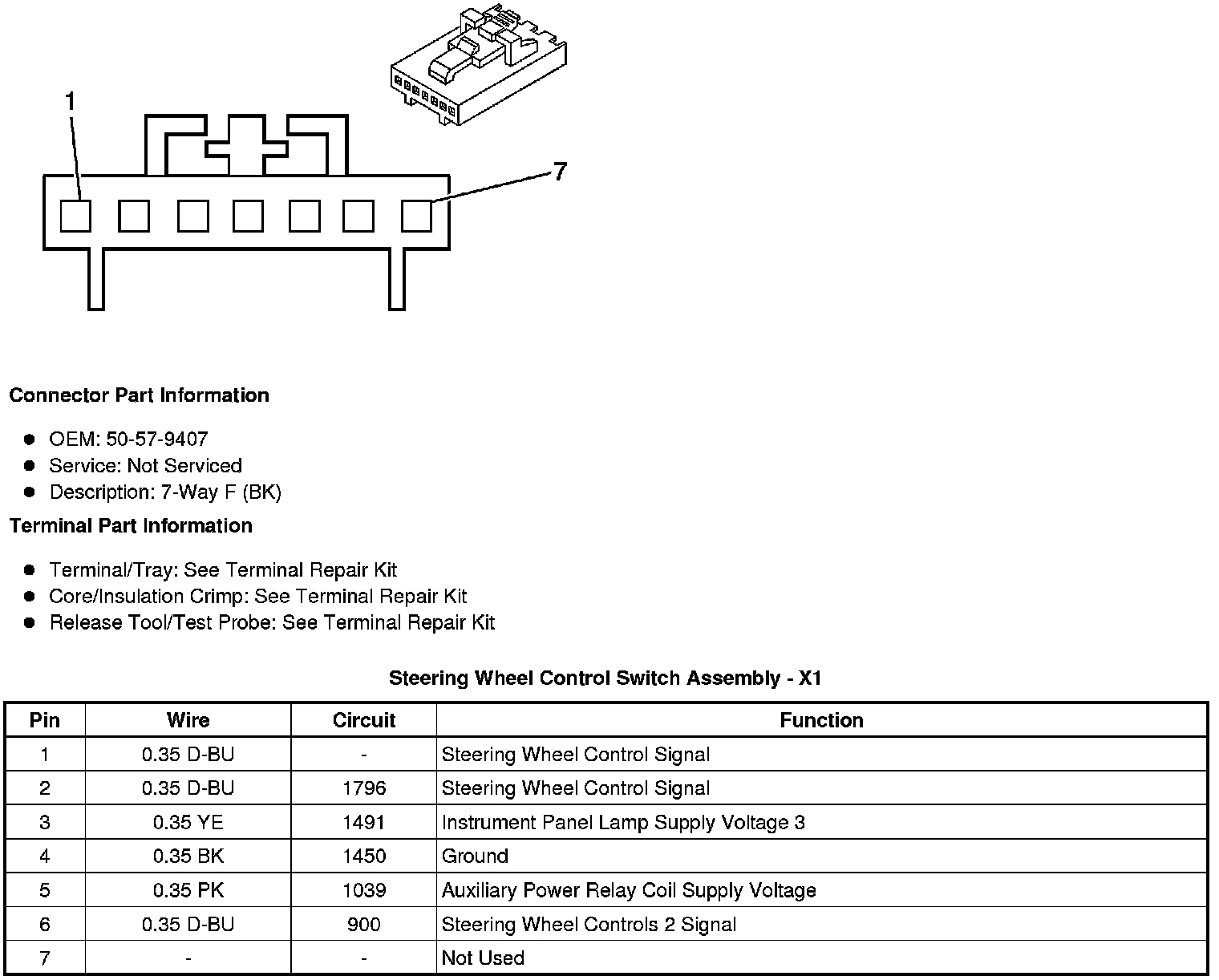

Steering Wheel Control Switch Assembly - X1

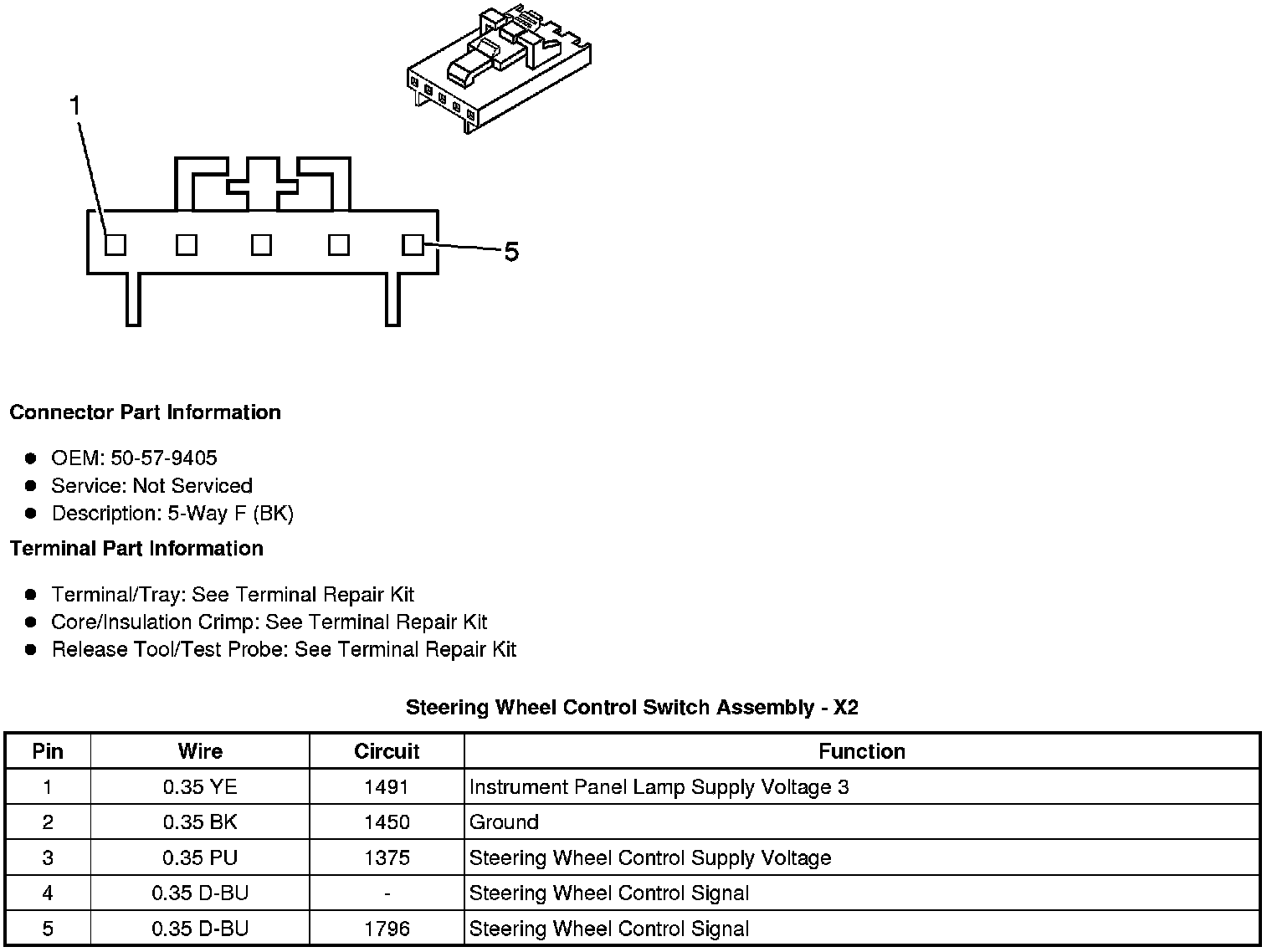

Steering Wheel Control Switch Assembly - X2
