Amplifier, Sound System




Component Connector End Views

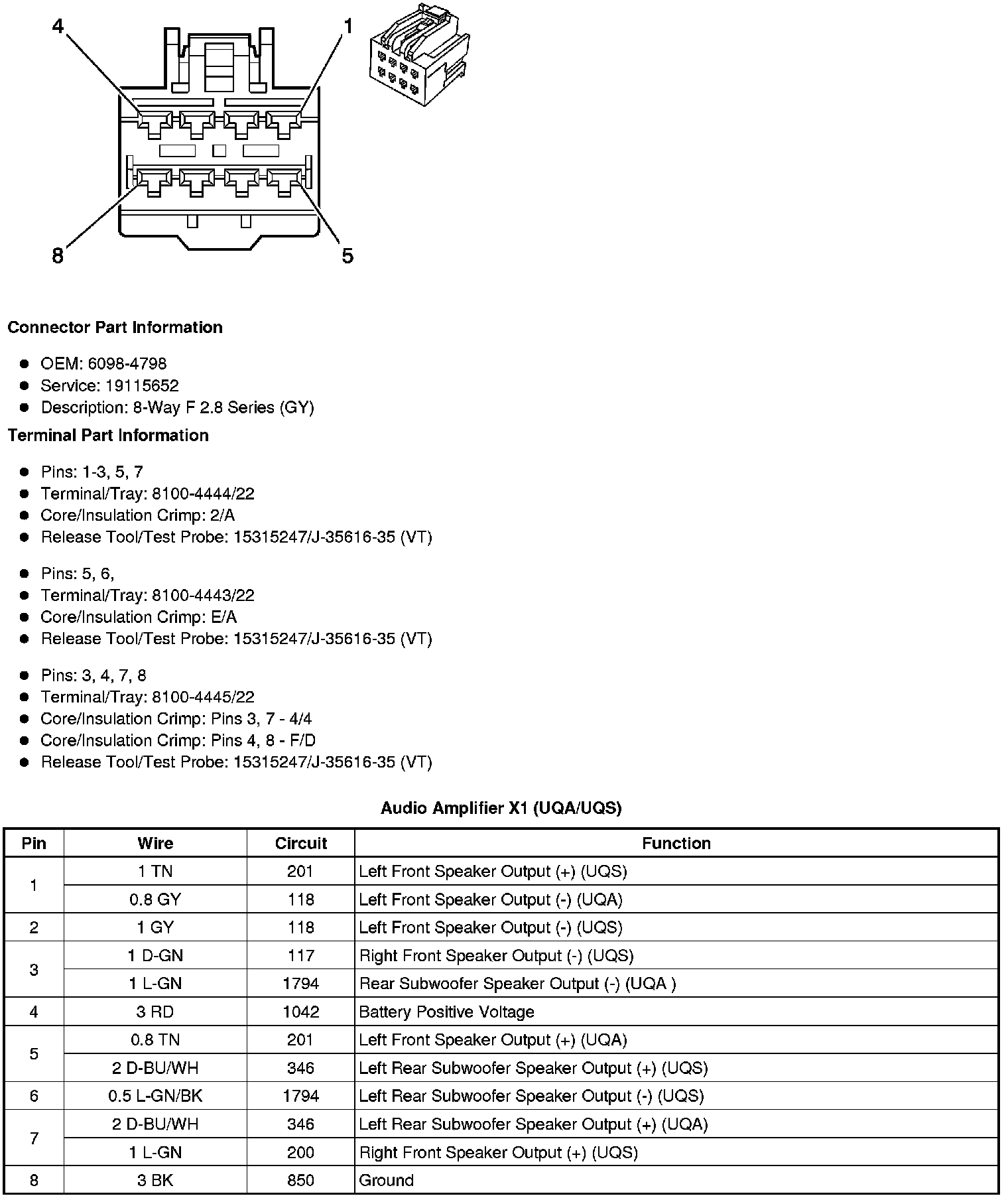

Audio Amplifier X1 (UQA/UQS)

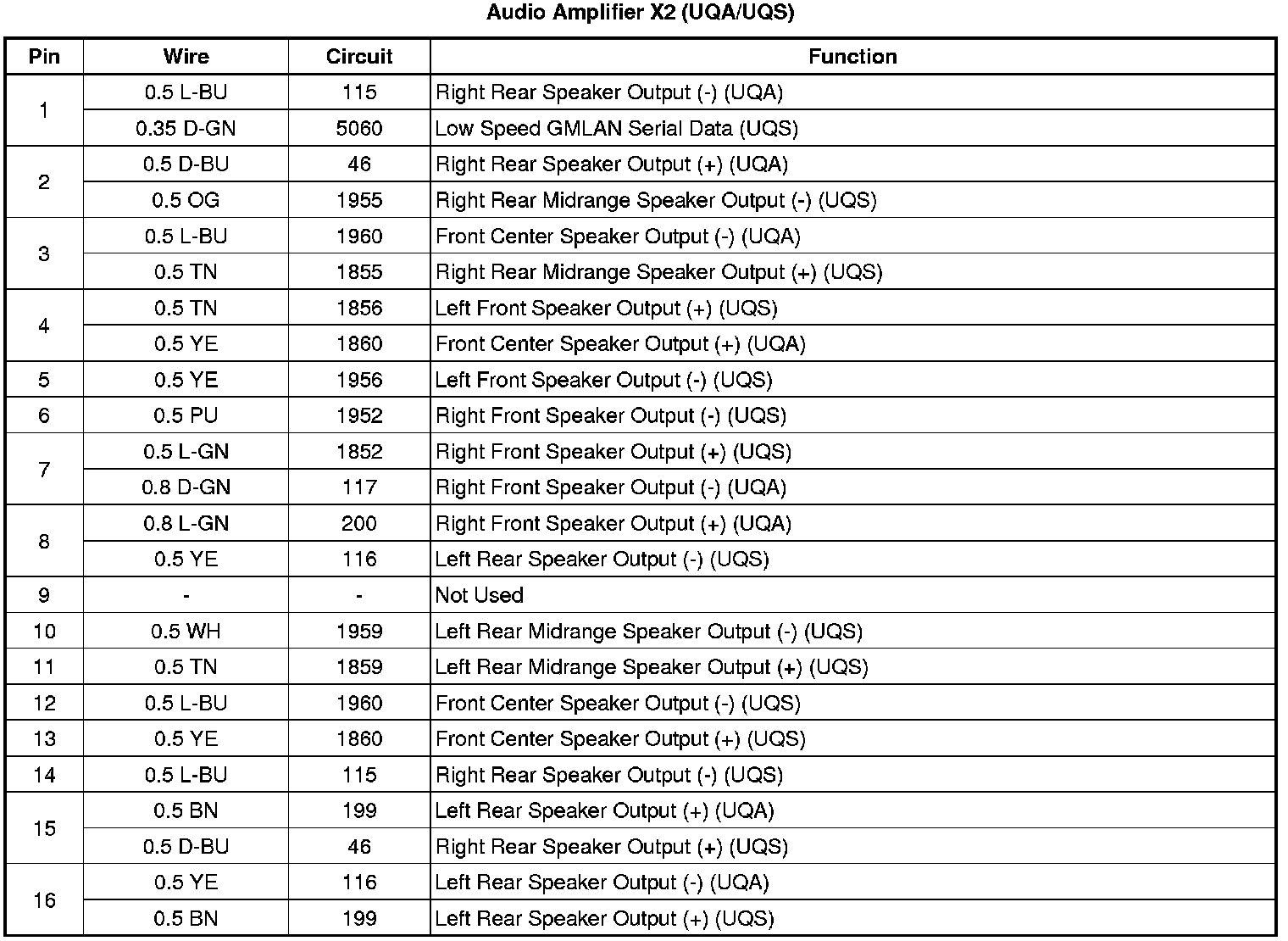

Audio Amplifier X2 (UQA/UQS)

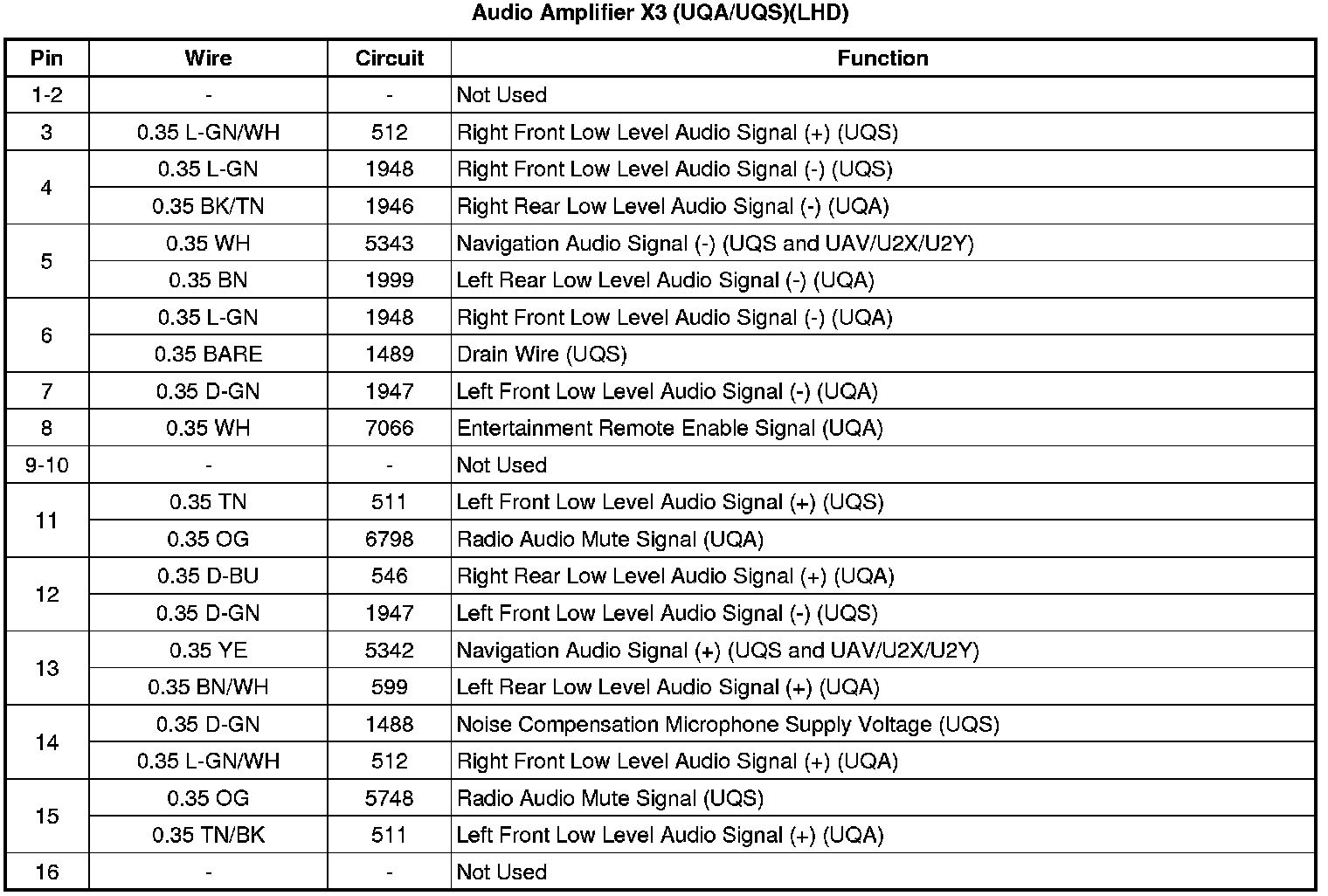

Audio Amplifier X3 (UQA/UQS)(LHD)

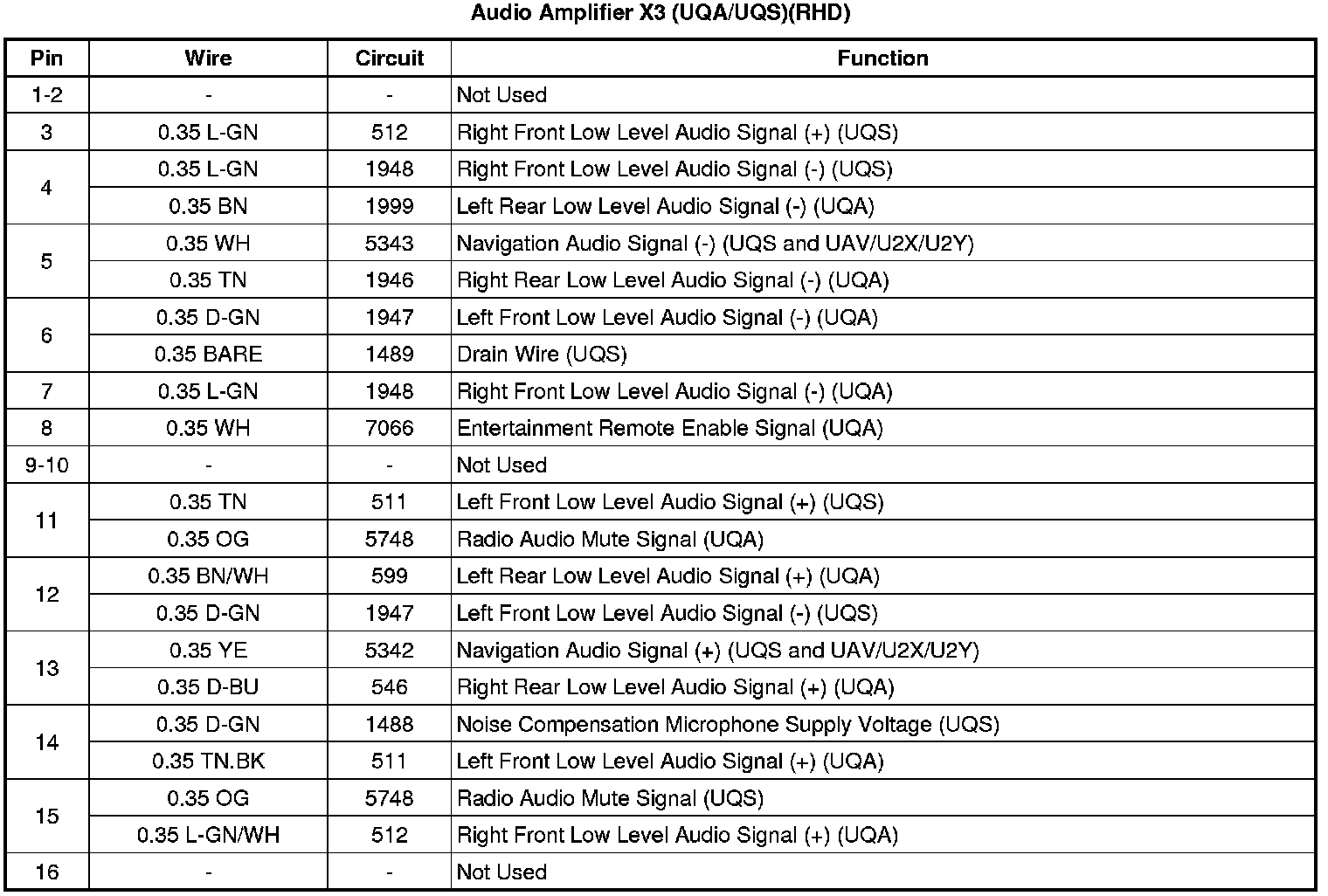

Audio Amplifier X3 (UQA/UQS)(RHD)

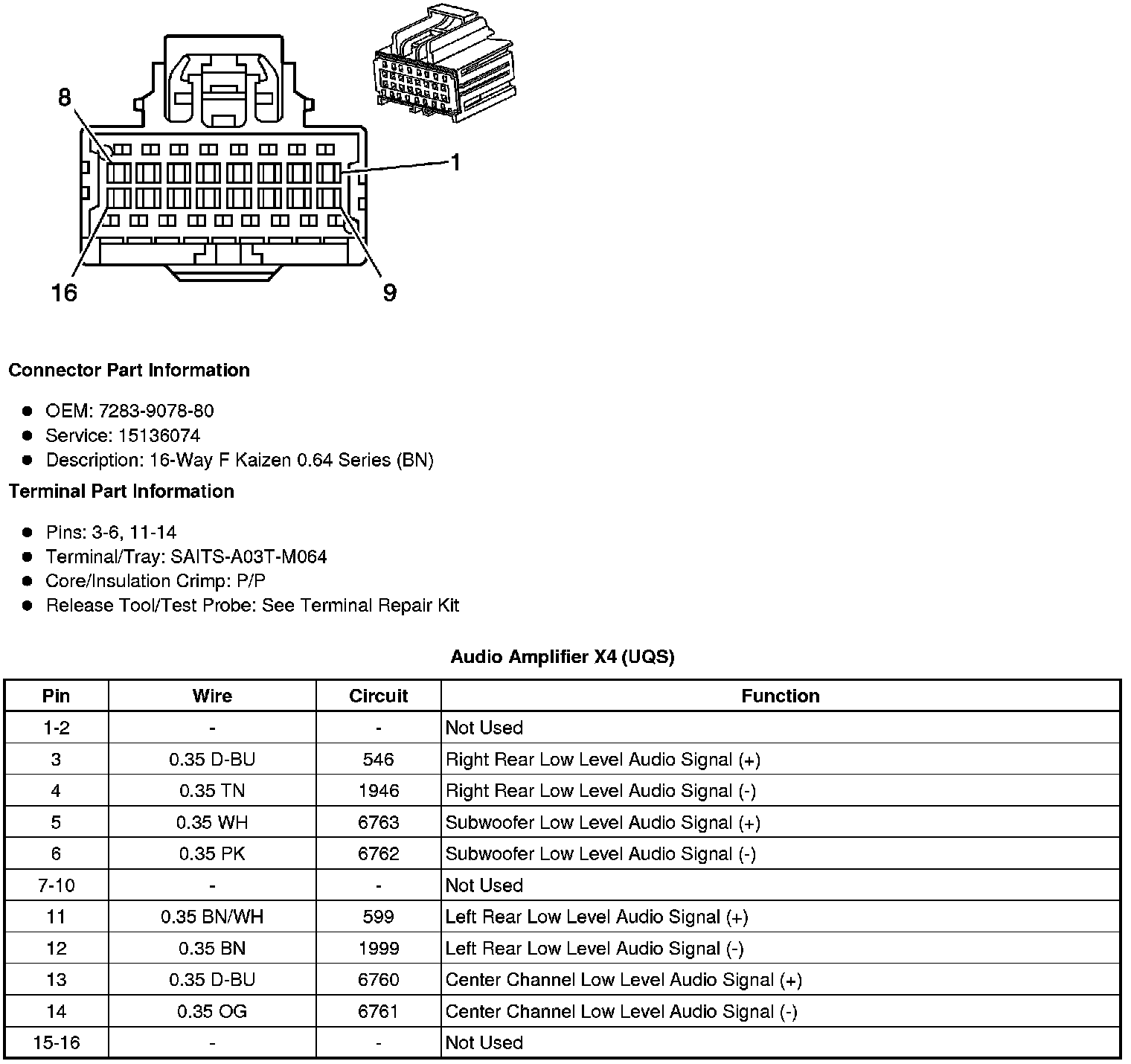

Audio Amplifier X4 (UQS)
