Home >> Cadillac >> 2009 >> CTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Temperature Sensor/Switch, M/T

Transmission Temperature Sensor/Switch, M/T

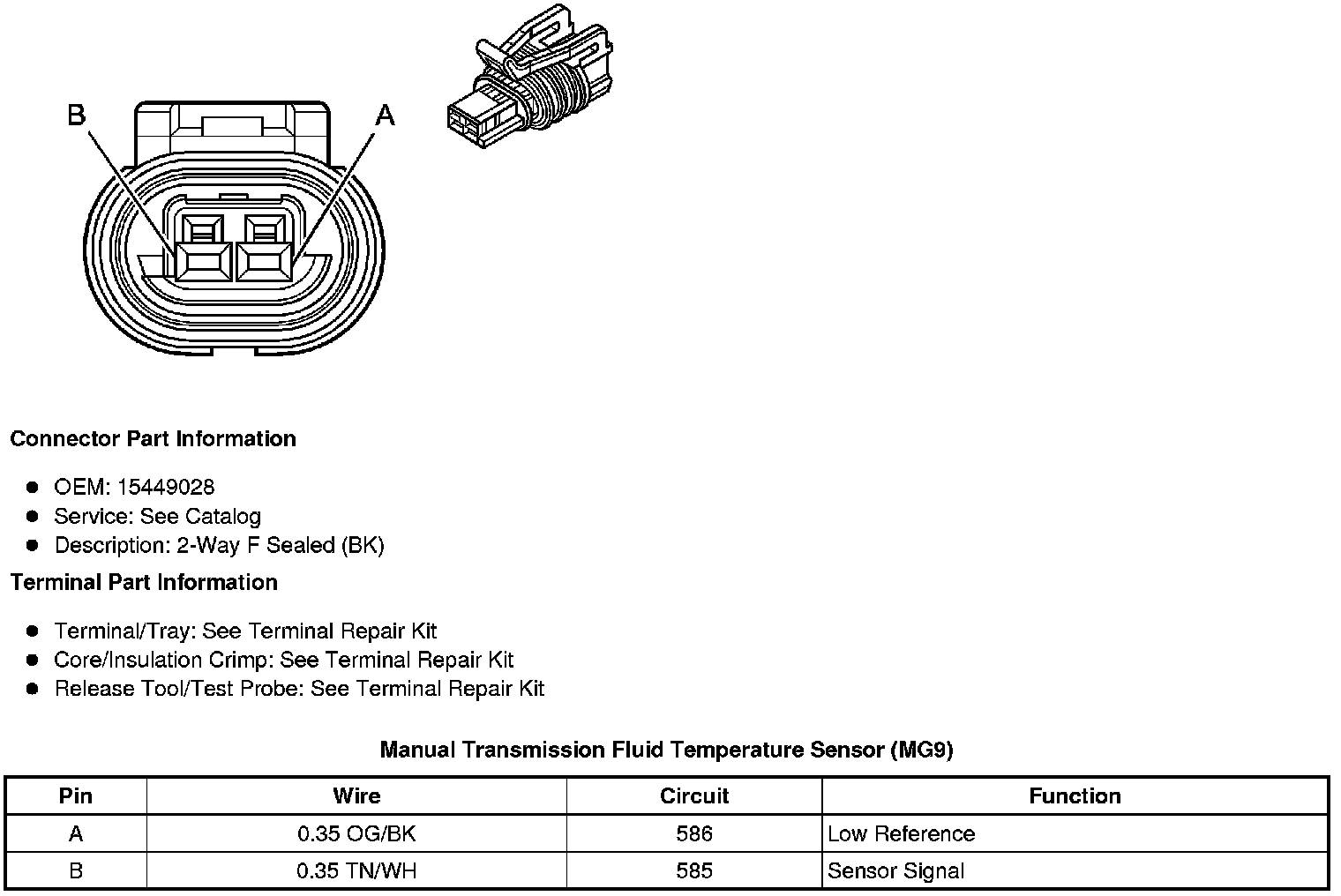

Component Connector End Views

Manual Transmission Fluid Temperature Sensor (MG9)
