Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module >> I/P Outputs, ECM, Heater and A/C Programmer

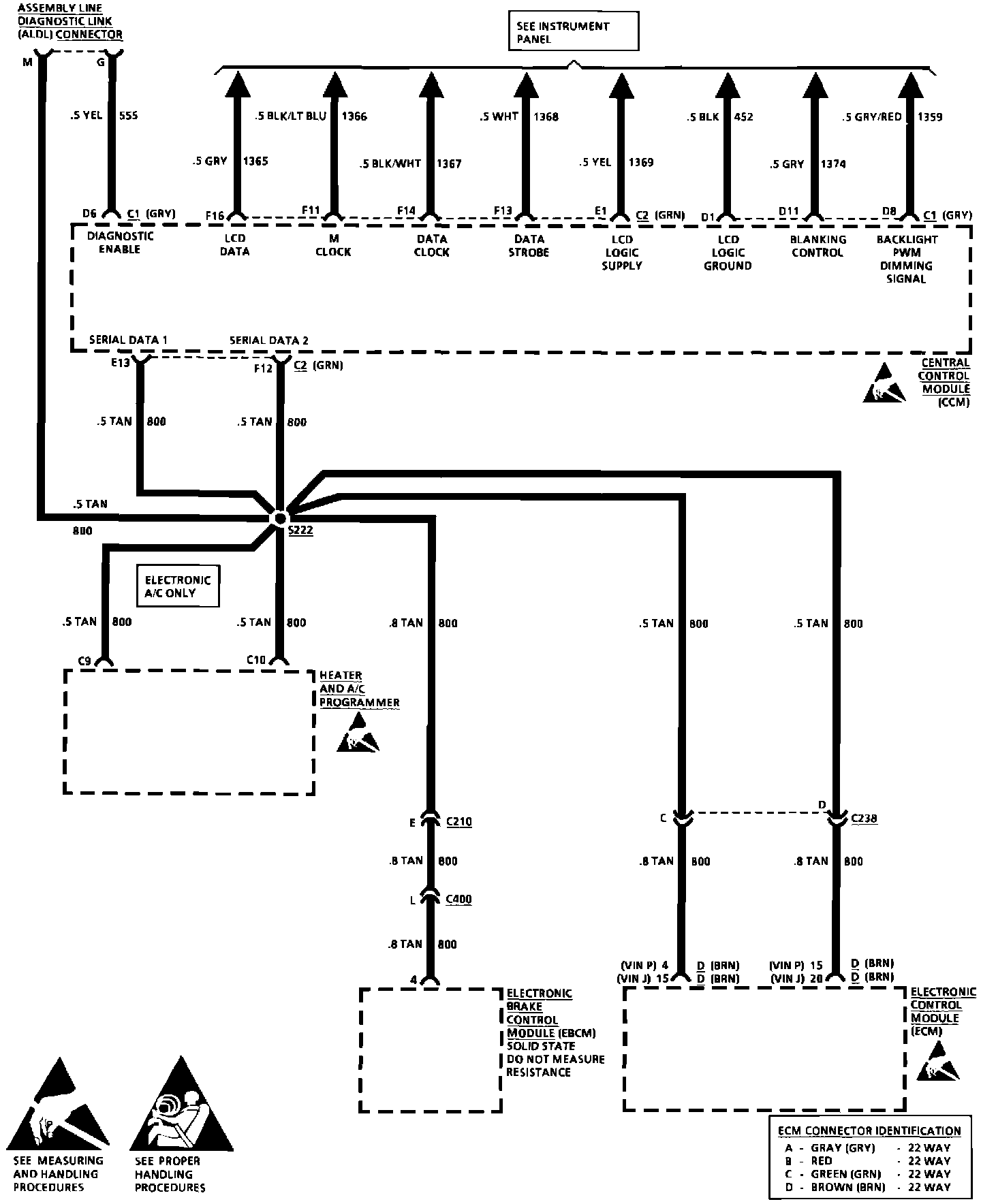

I/P Outputs, ECM, Heater and A/C Programmer

Central Control Module (CCM):
