Home >> Chevrolet >> 1994 >> S10/T10 P/U 2WD L4-134 2.2L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Computers and Control Systems >> System Specifications >> With Automatic Transmission >> Blue Connector

Blue Connector

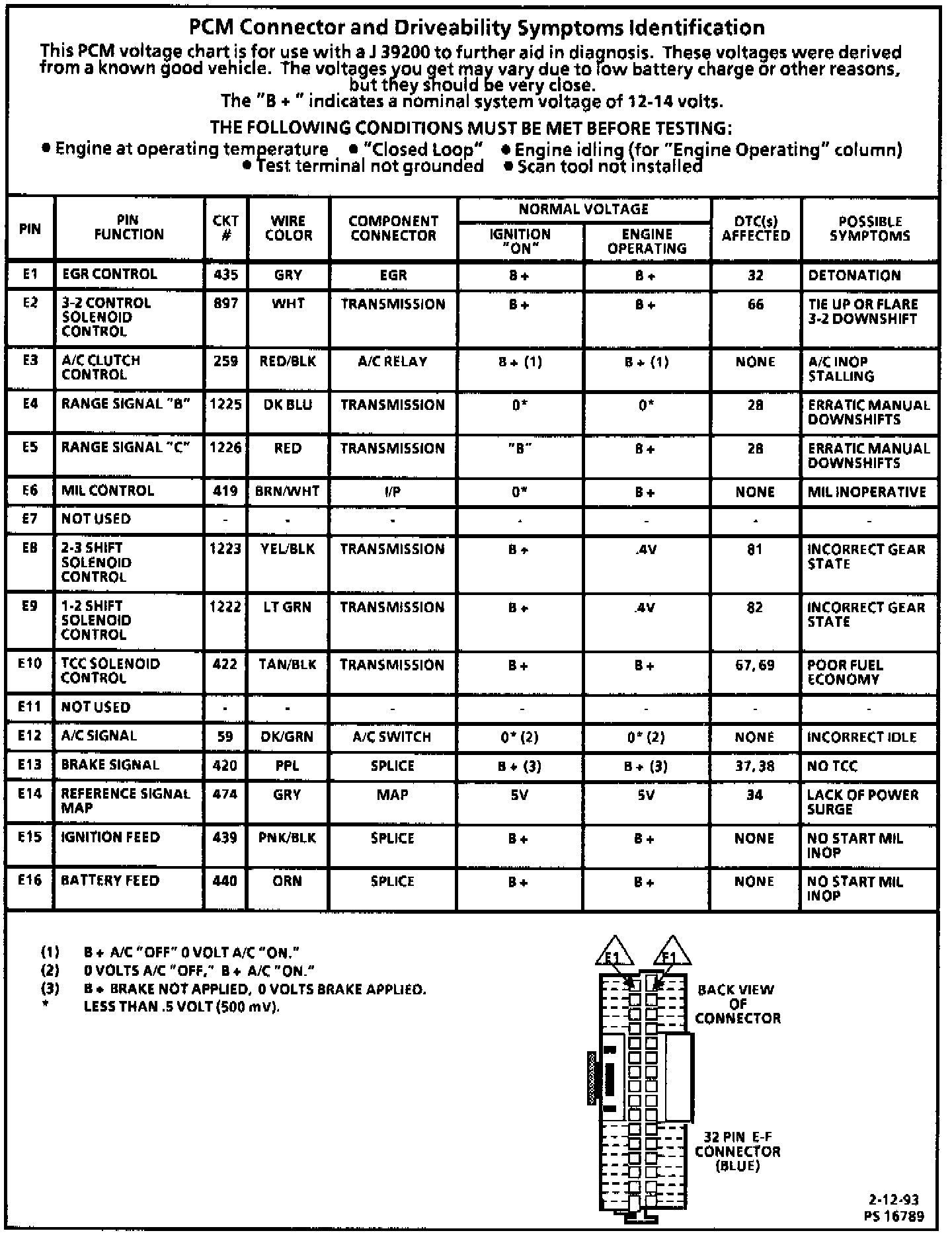

Pinout Chart:

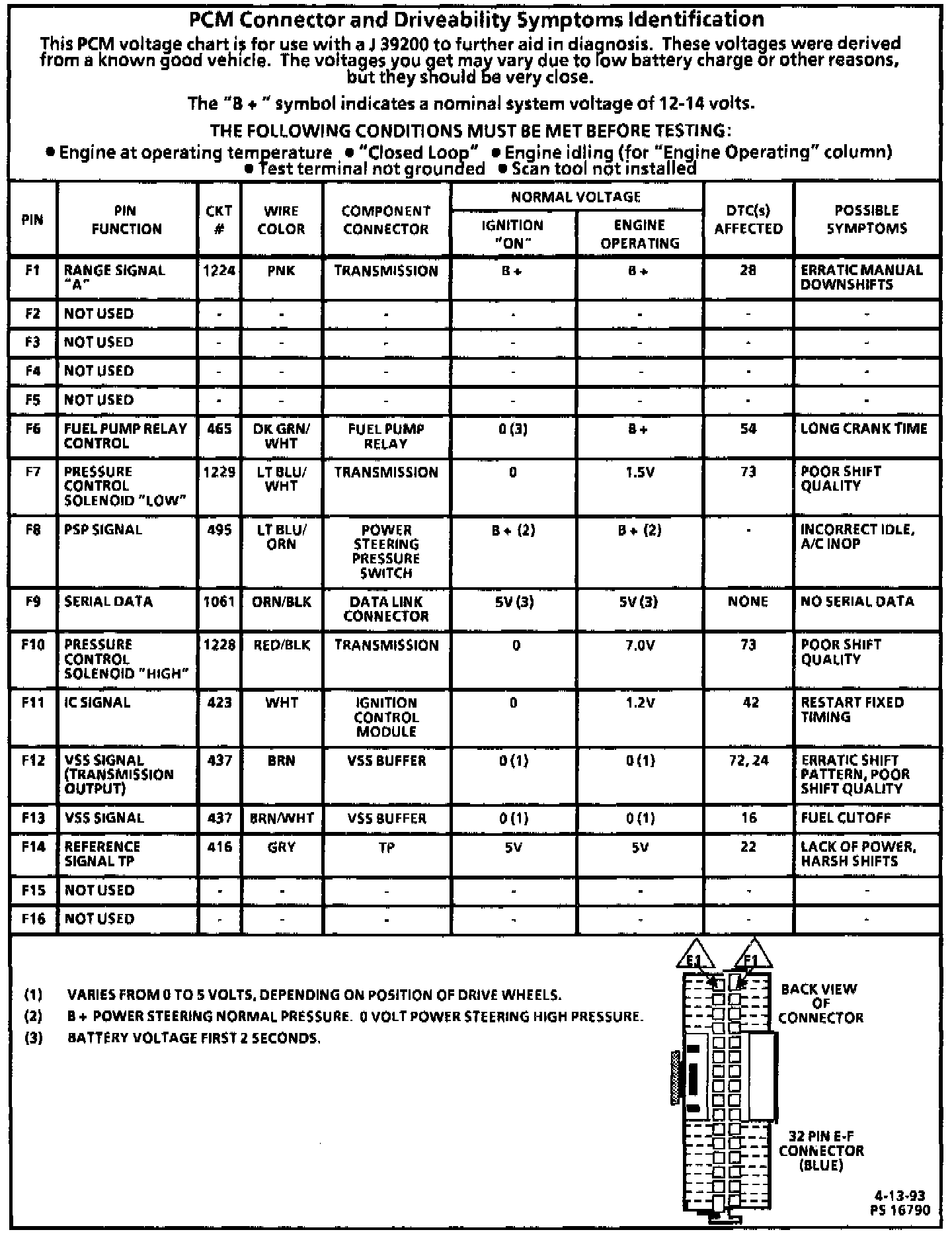

Pinout Chart:
