Control Assembly, HVAC

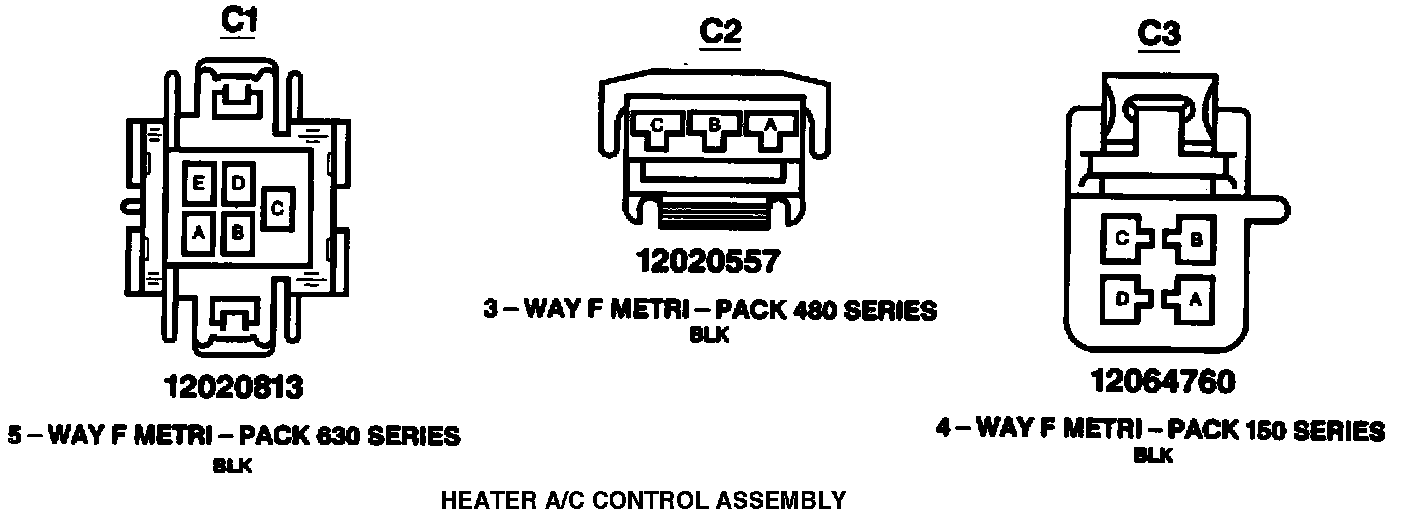

Heater A/C Control Assembly C1, C2 And C3:

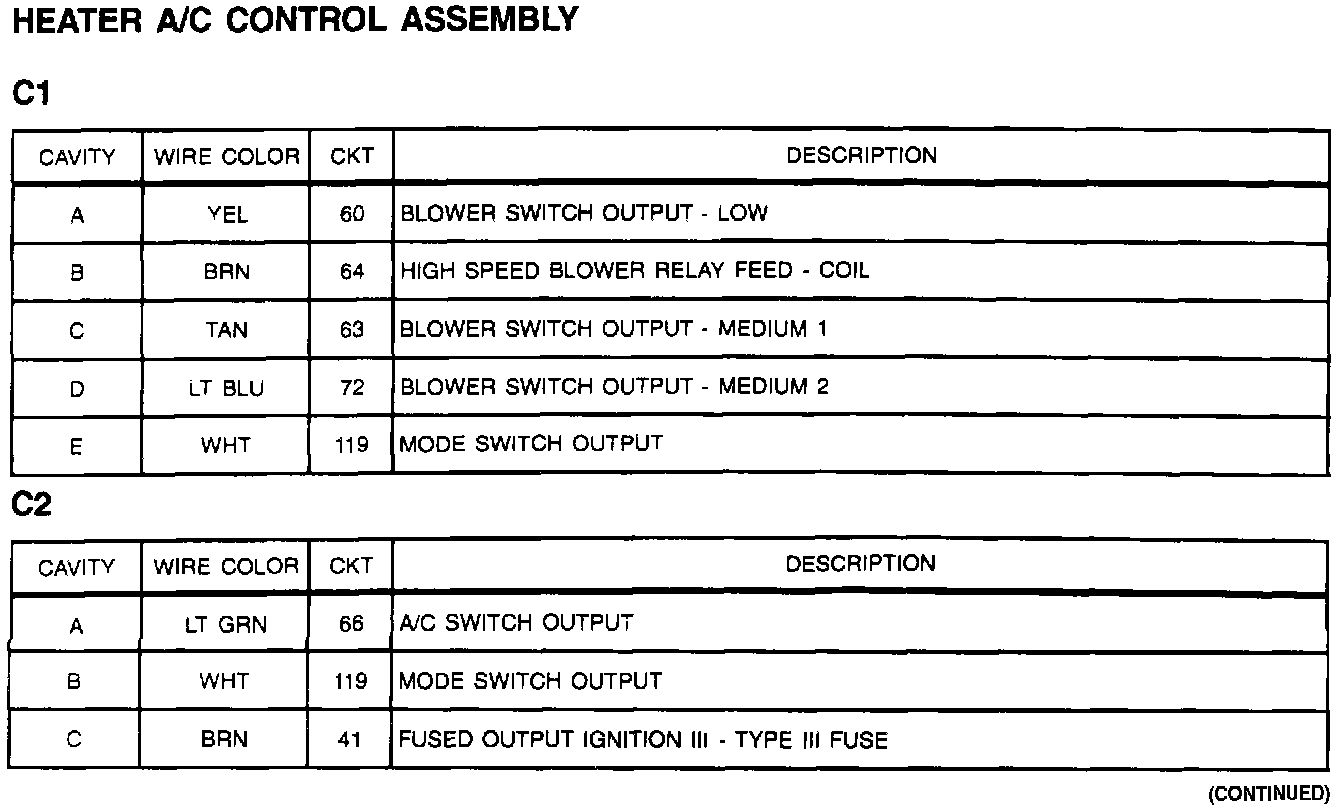

Heater A/C Control Assembly C1, C2 And C3 (Part 1 Of 2):

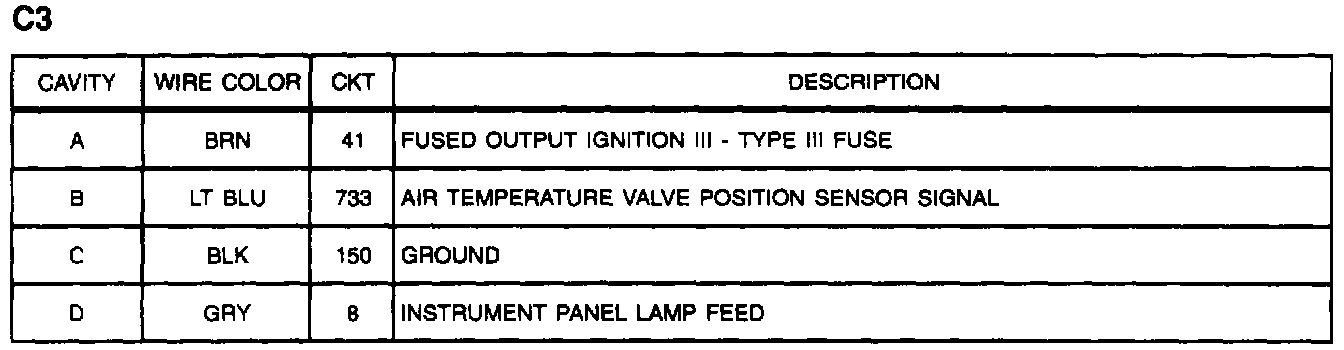

Heater A/C Control Assembly C1, C2 And C3 (Part 2 Of 2):
