Home >> Chevrolet >> 2002 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> System Diagram

System Diagram

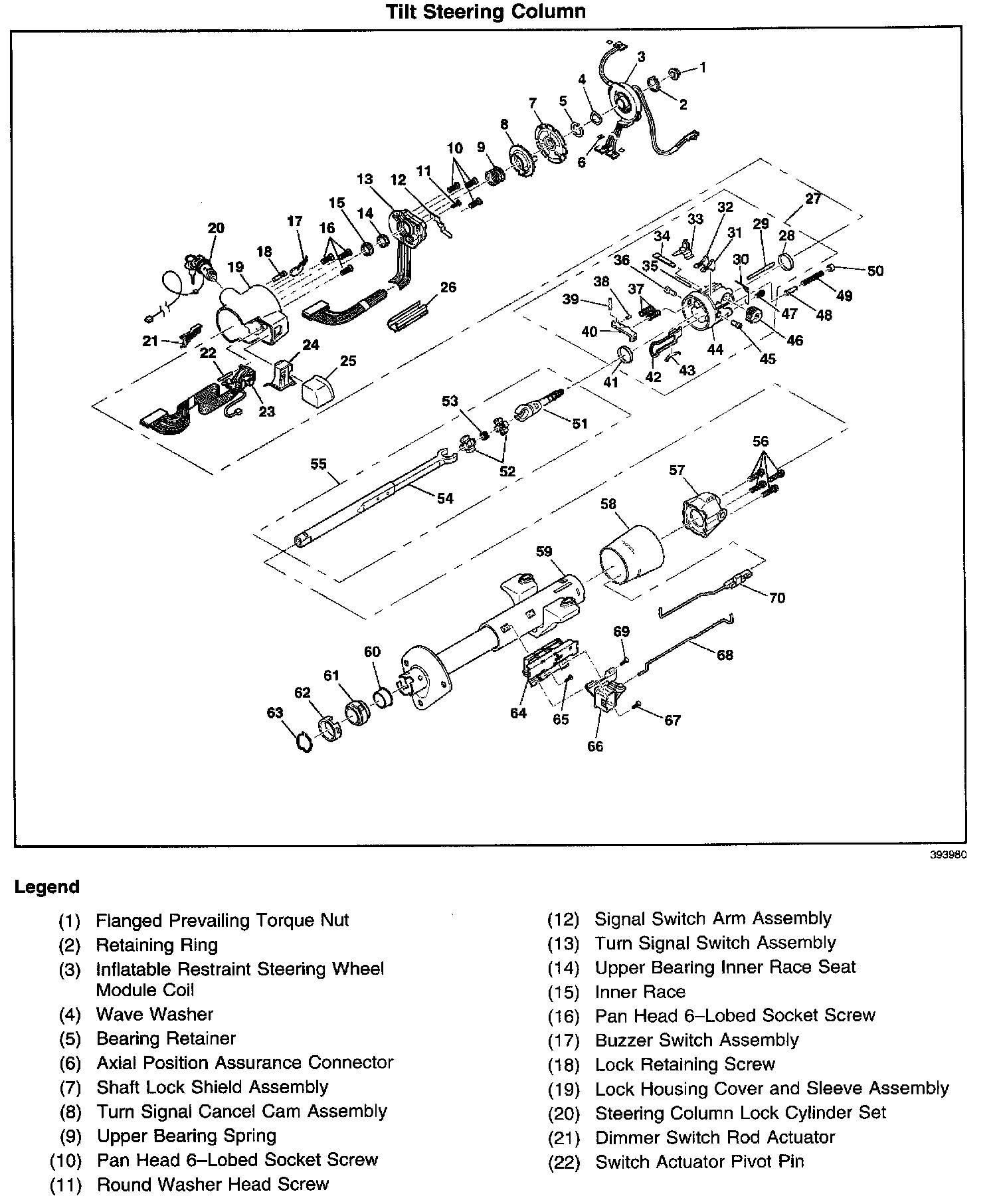

Locations View Part 1:

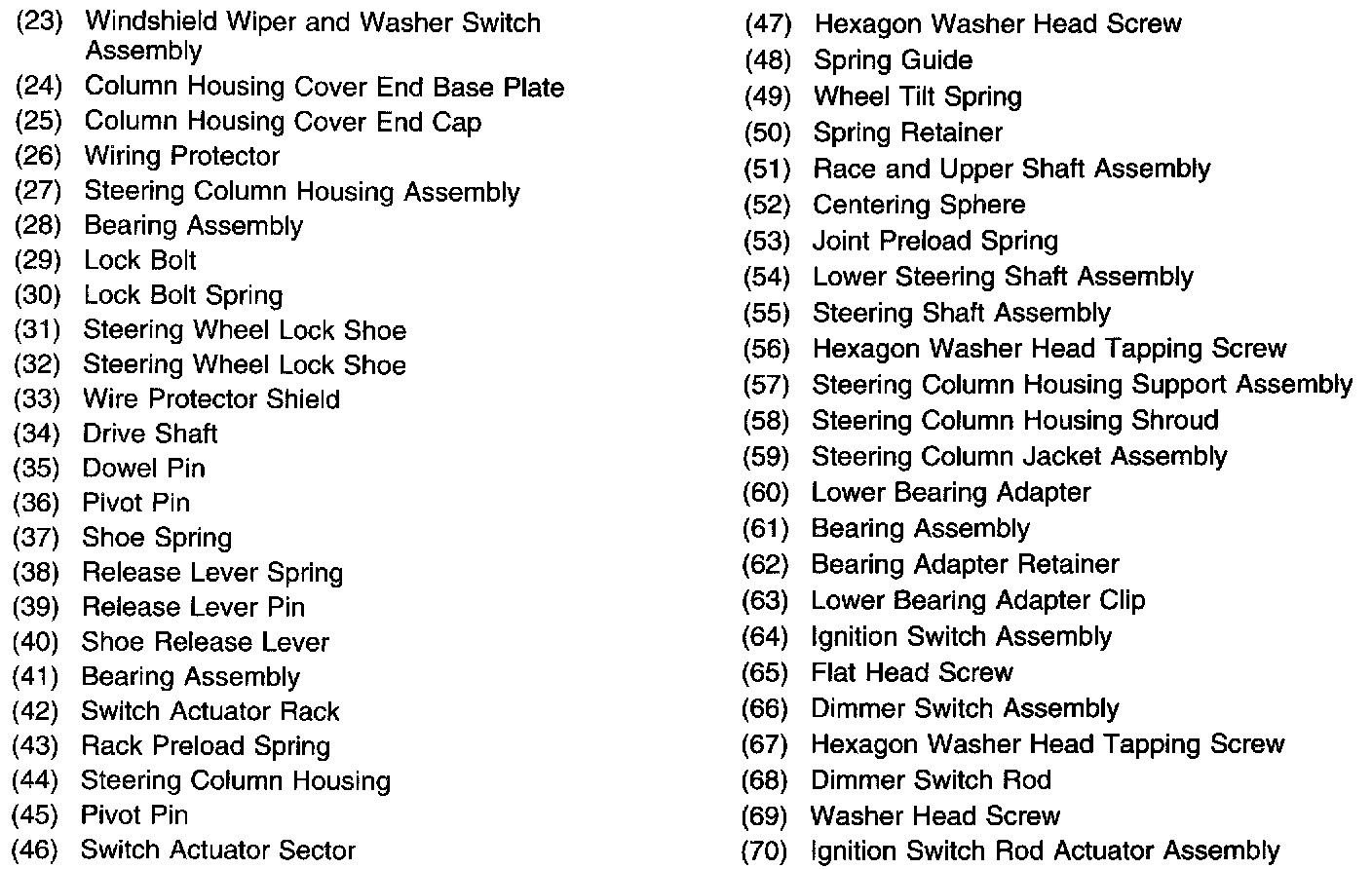

Locations View Part 2:
