Wheel Speed Sensor

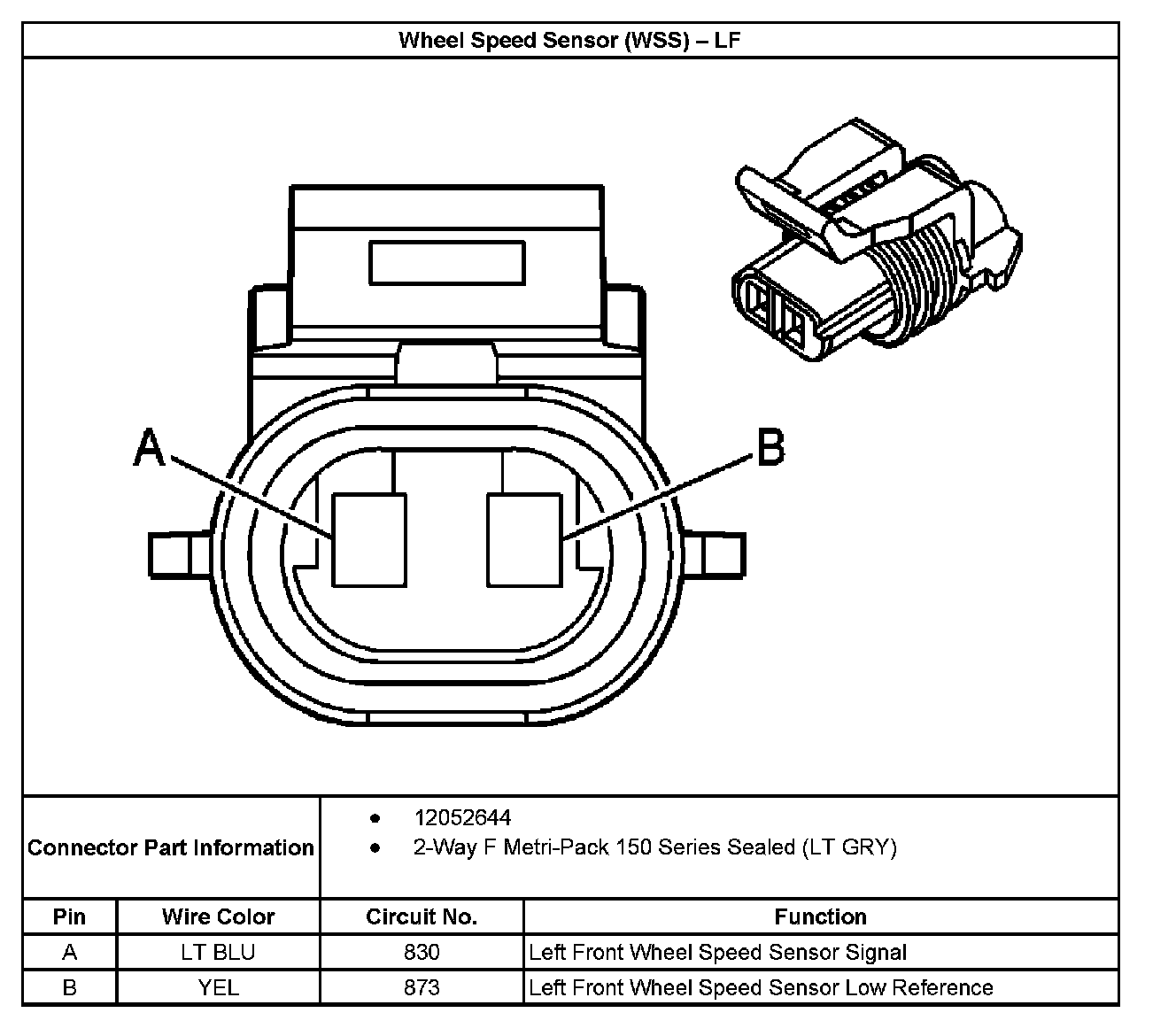

Wheel Speed Sensor LF:

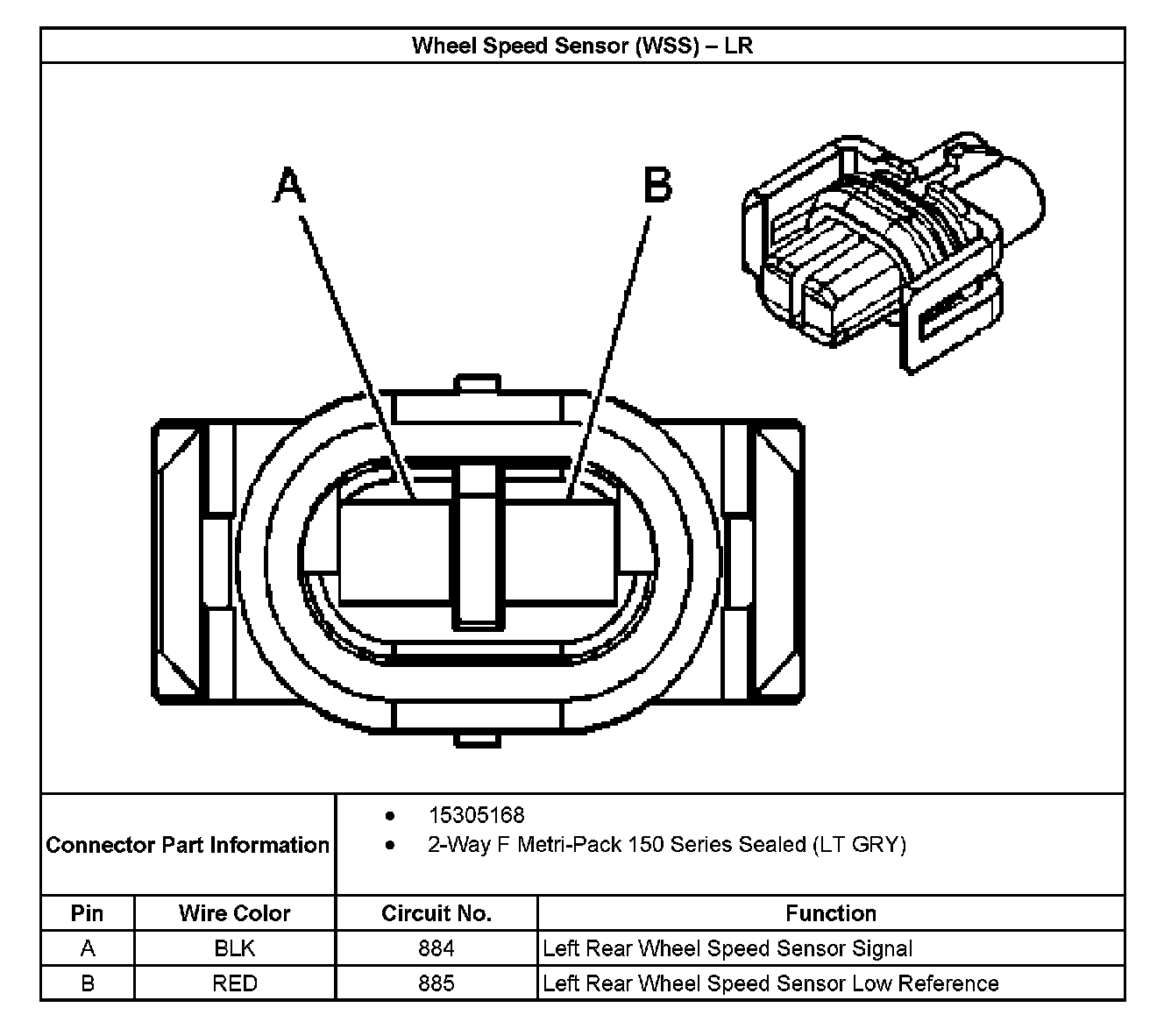

Wheel Speed Sensor LR:

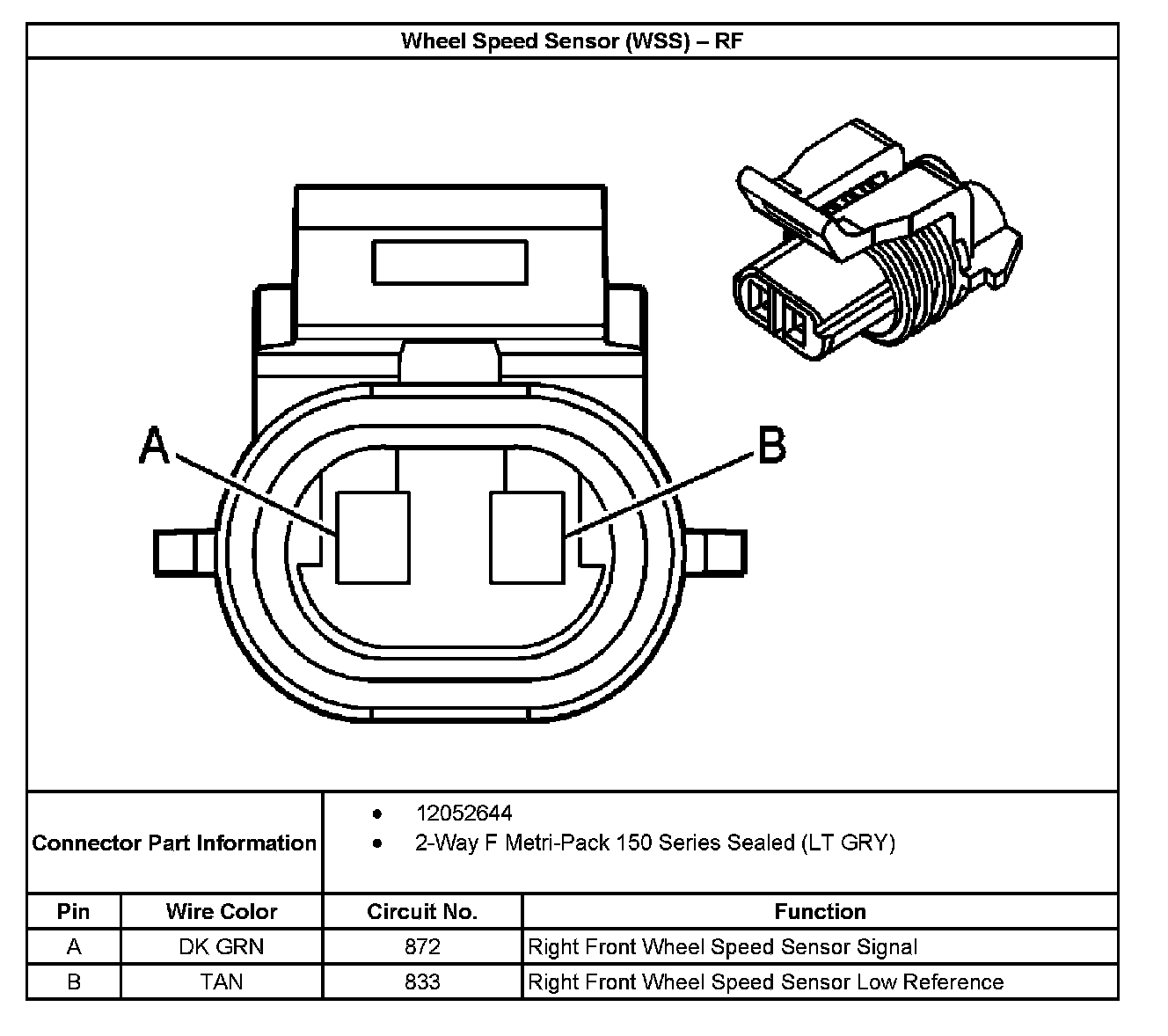

Wheel Speed Sensor RF:

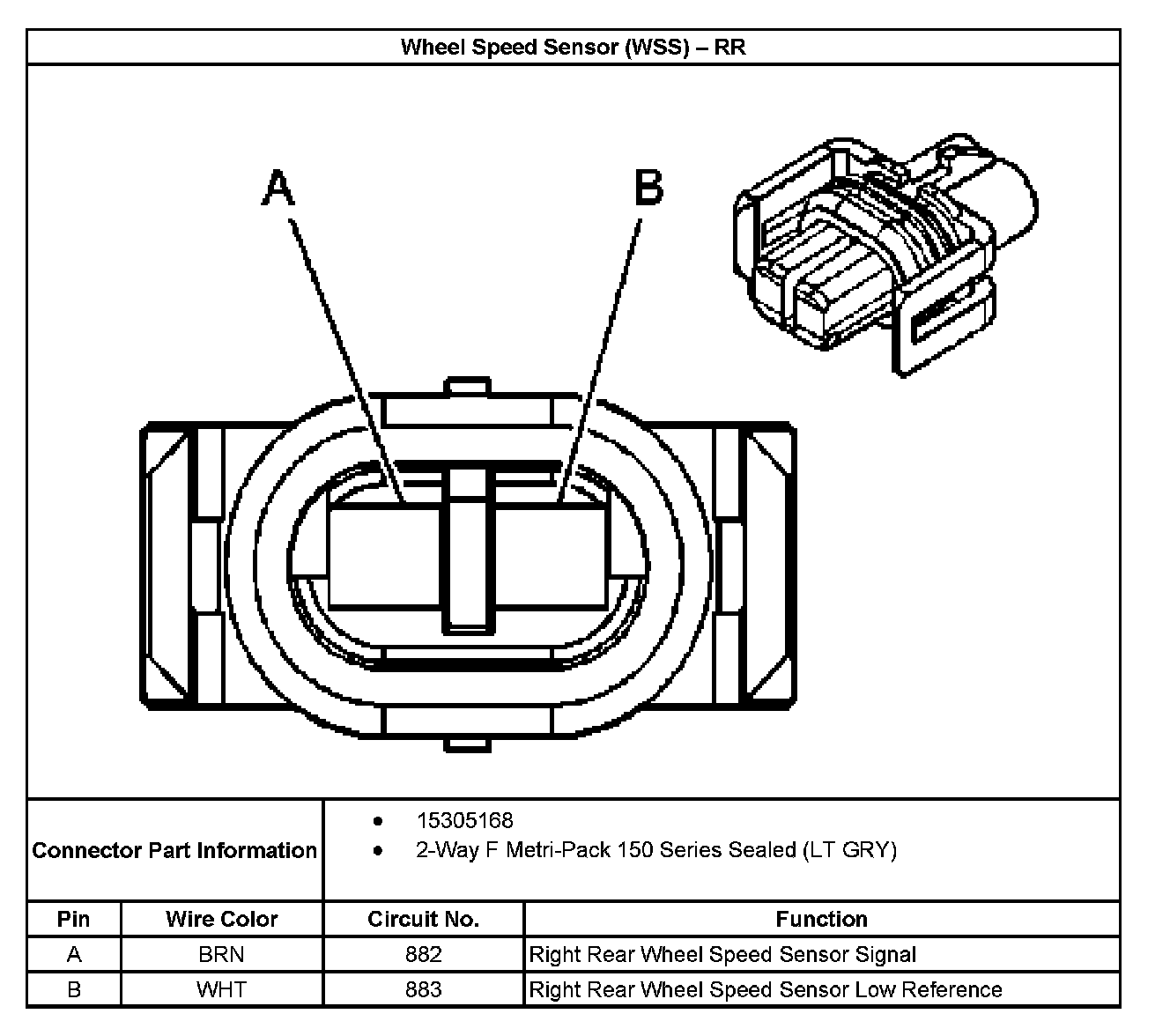

Wheel Speed Sensor RR:
