Intake Manifold

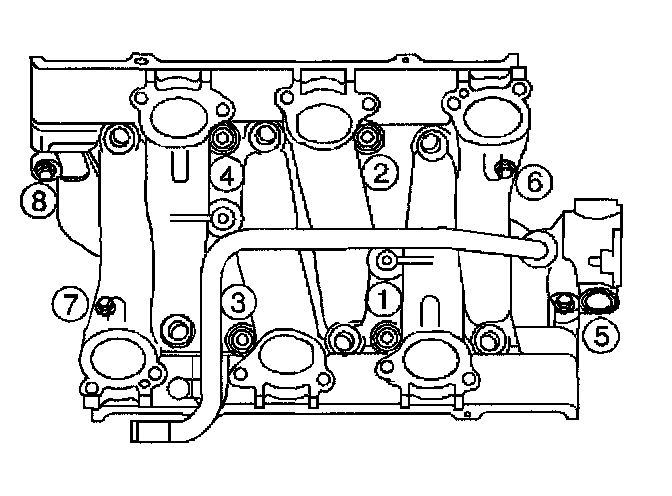

Lower Intake Manifold:
Lower Intake Manifold Bolts
First Pass 7 Nm (62 in lbs)
Final Pass 13 Nm (115 in lbs)
Upper Intake Manifold Bolt/Stud 25 Nm (18 ft. lbs.)
Throttle Body Bolt/Stud 25 Nm (18 ft. lbs.)
Lower Intake Manifold Bolts
First Pass 7 Nm (62 in lbs)
Final Pass 13 Nm (115 in lbs)
Upper Intake Manifold Bolt/Stud 25 Nm (18 ft. lbs.)
Throttle Body Bolt/Stud 25 Nm (18 ft. lbs.)
