Power Window Switch
>>
Window Switch - Driver
Window Switch - Driver

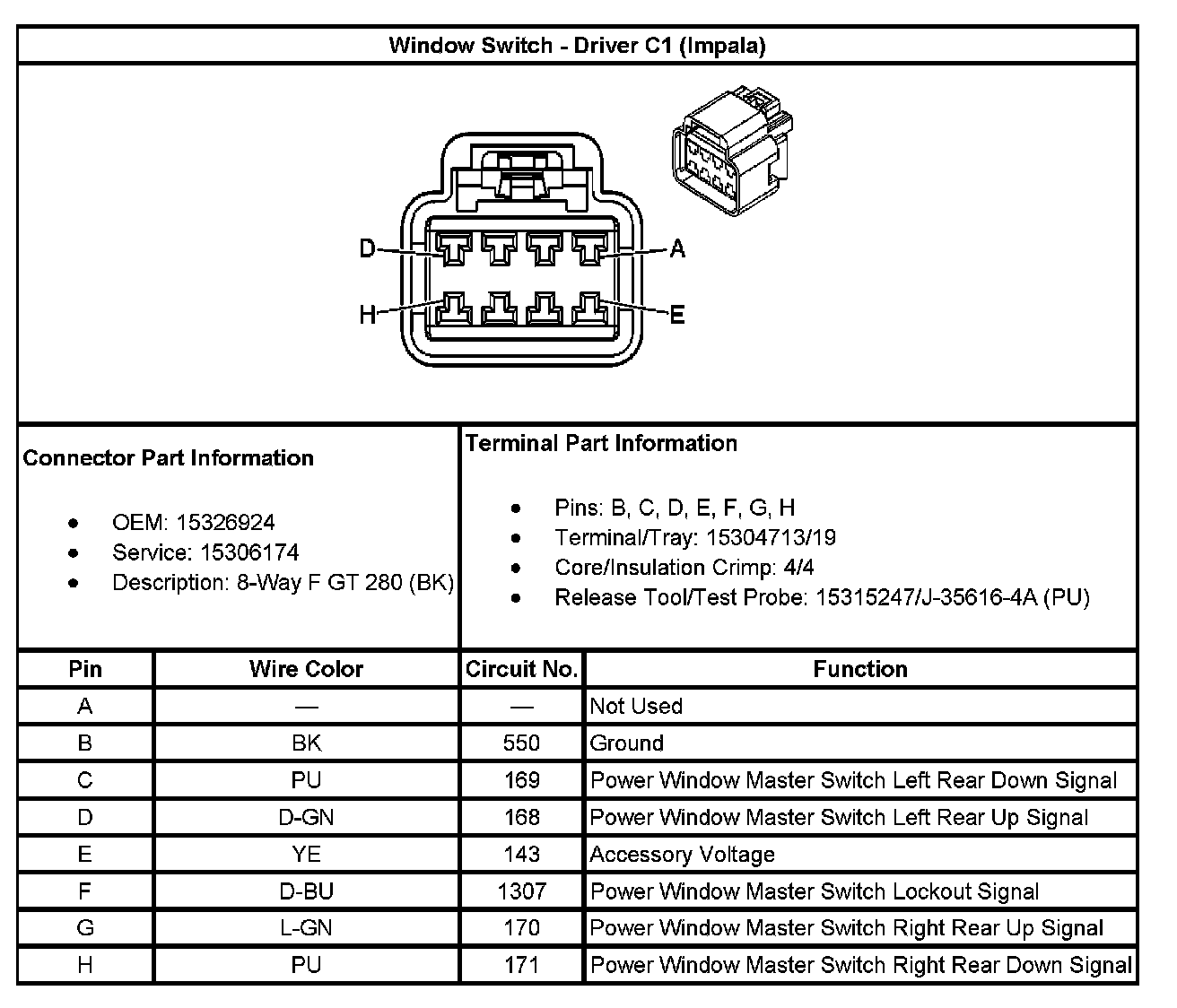

Window Switch - Driver C1:

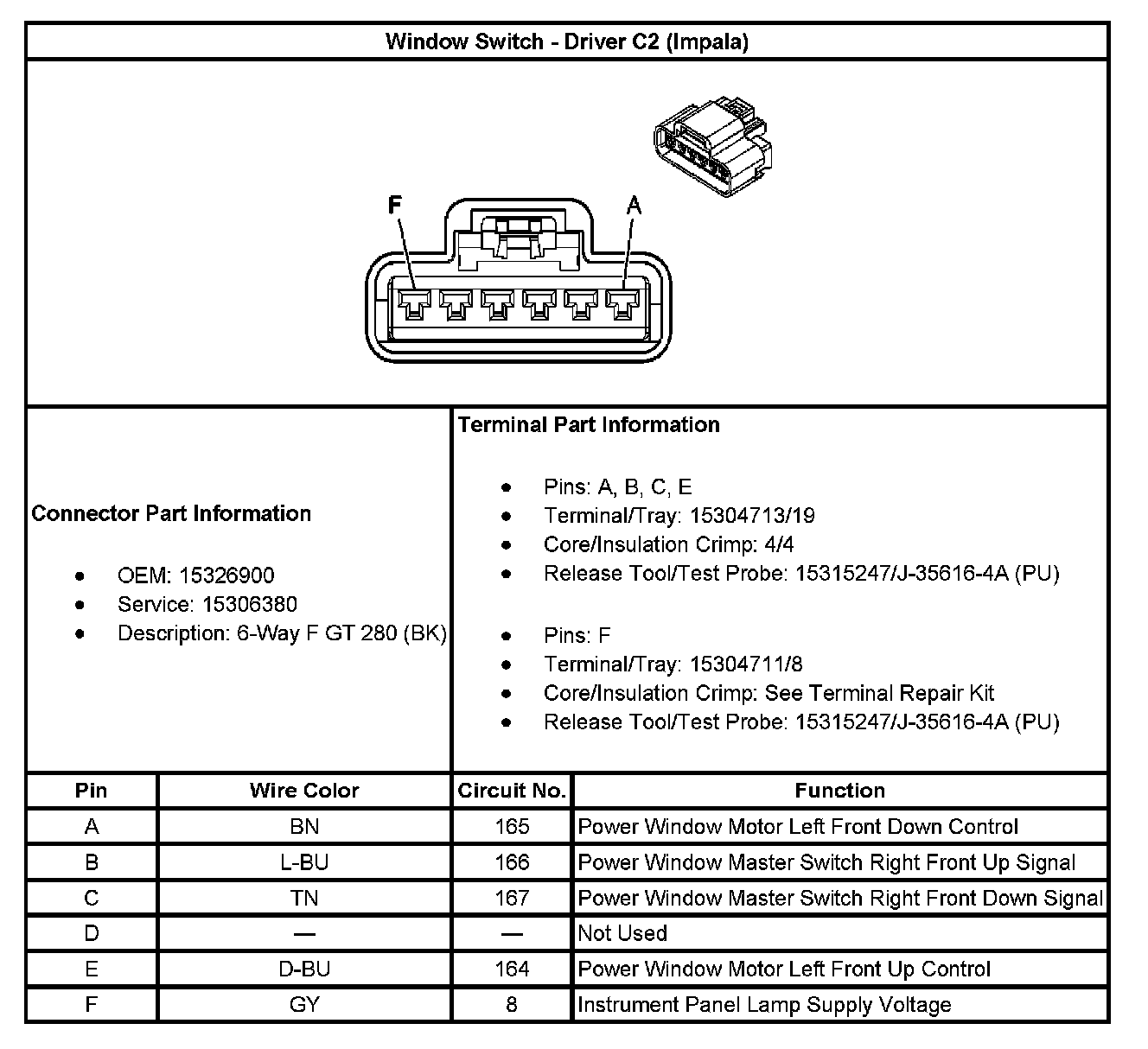

Window Switch - Driver C2:
