Door Module

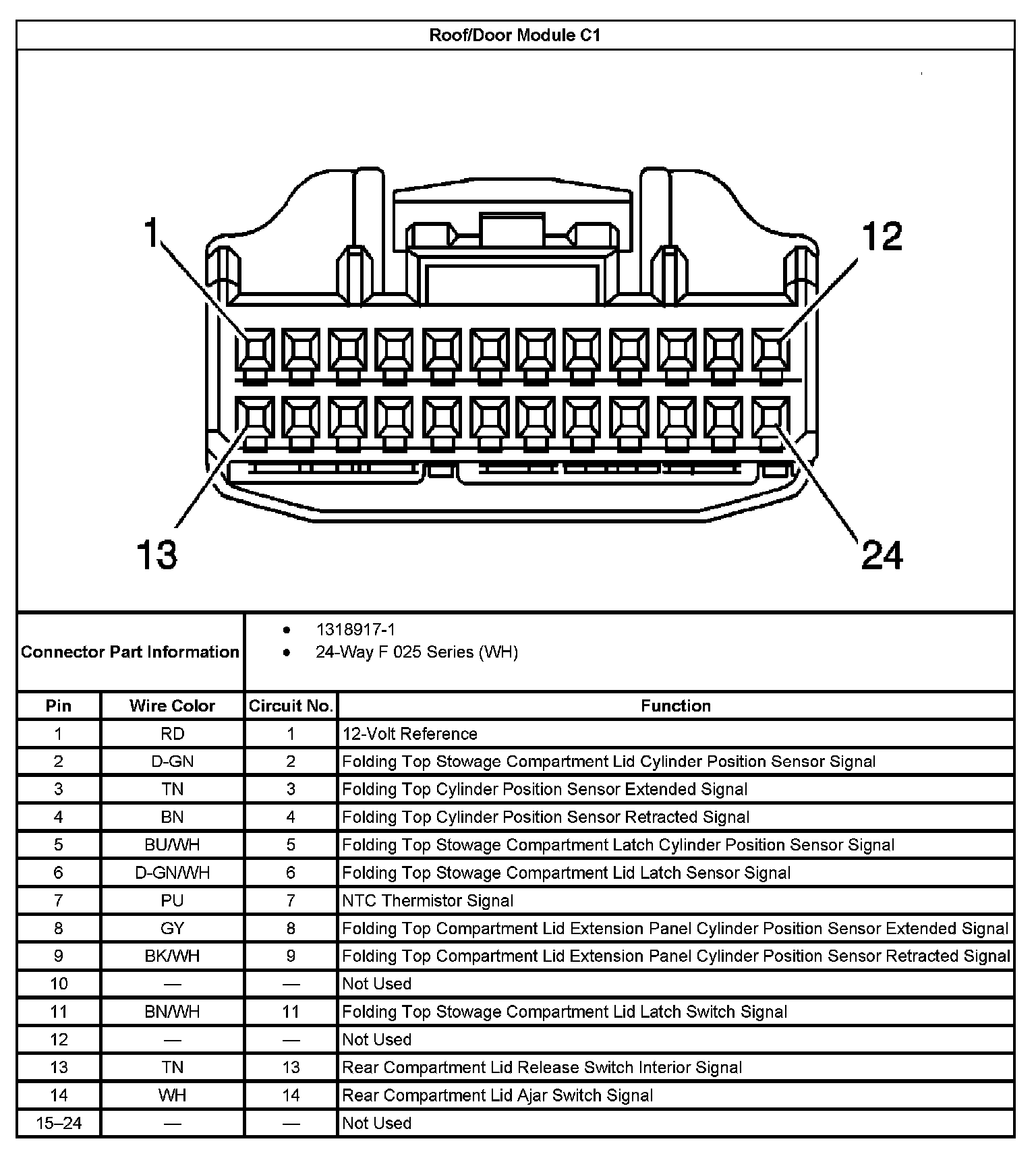

Roof/Door Module C1:

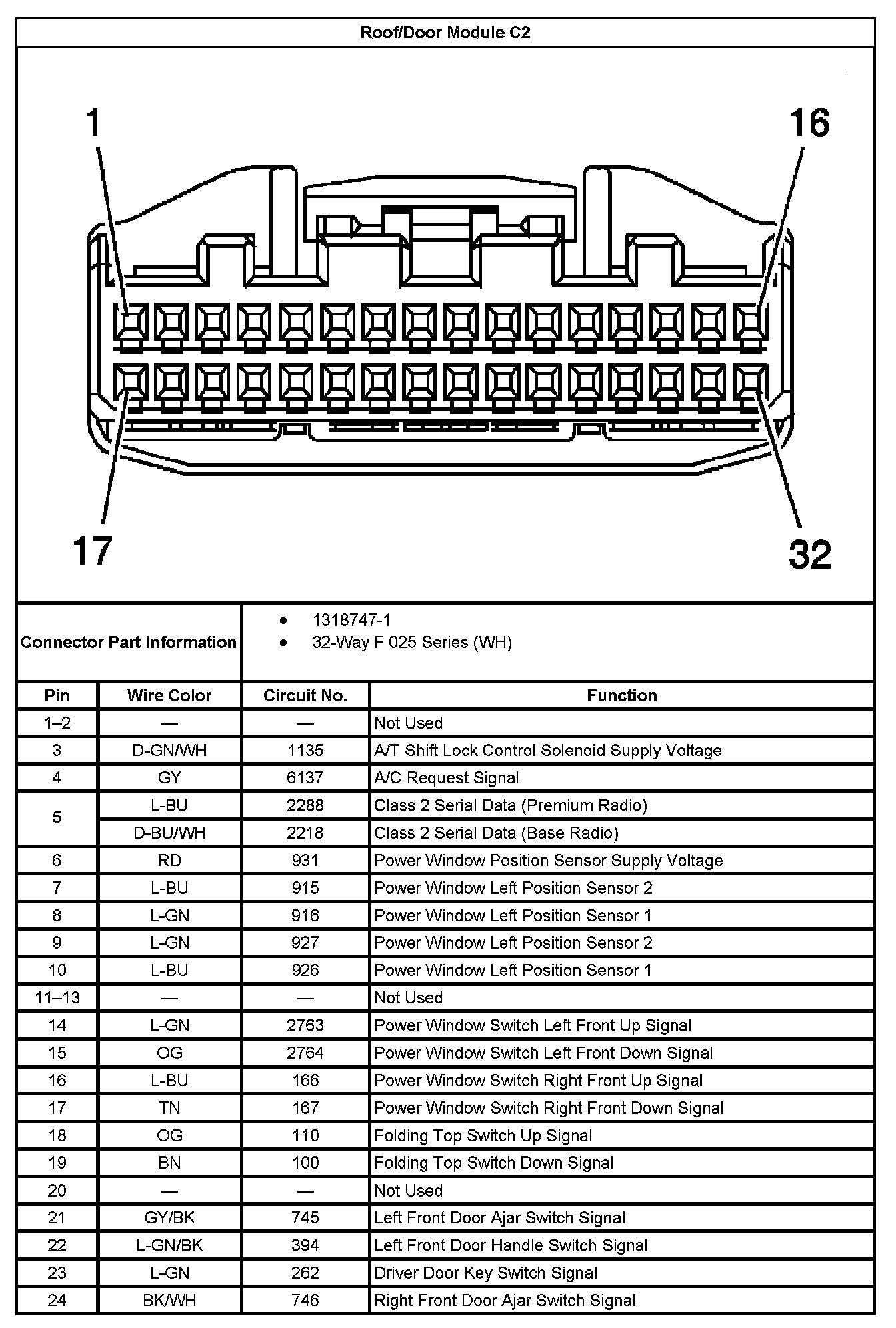

Roof/Door Module C2 Part 1:

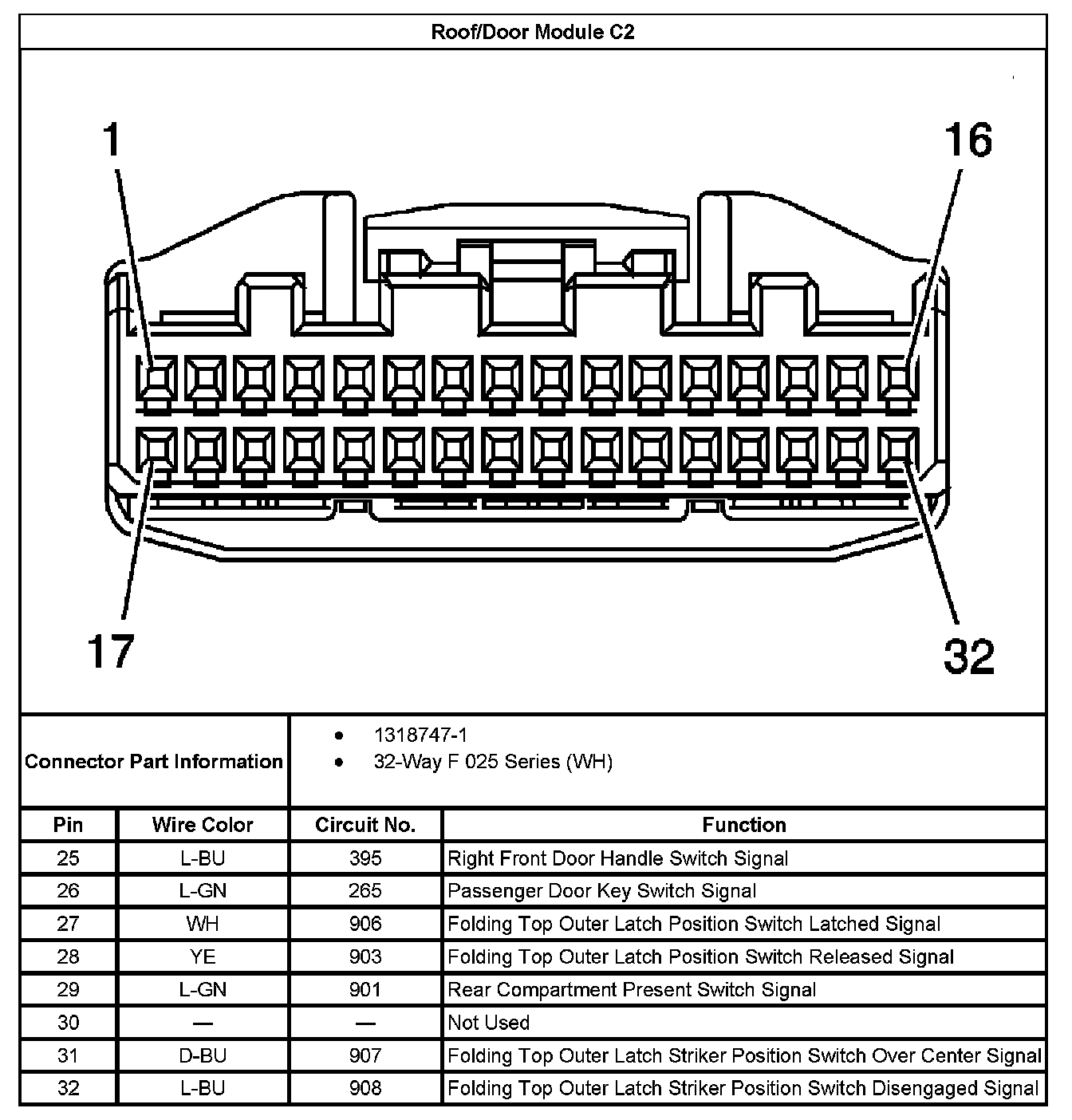

Roof/Door Module C2 Part 2:

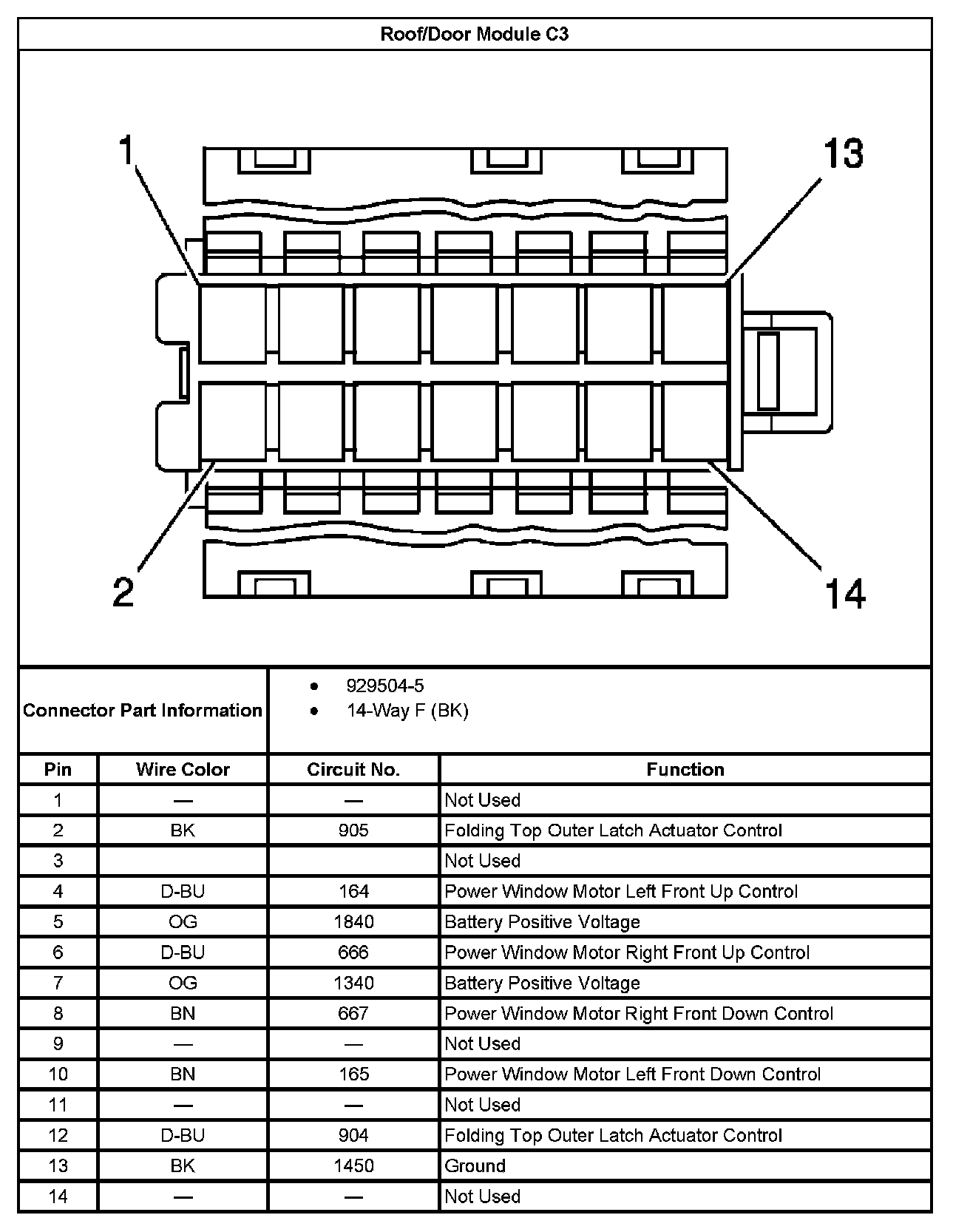

Roof/Door Module C3:



Roof/Door Module C4:

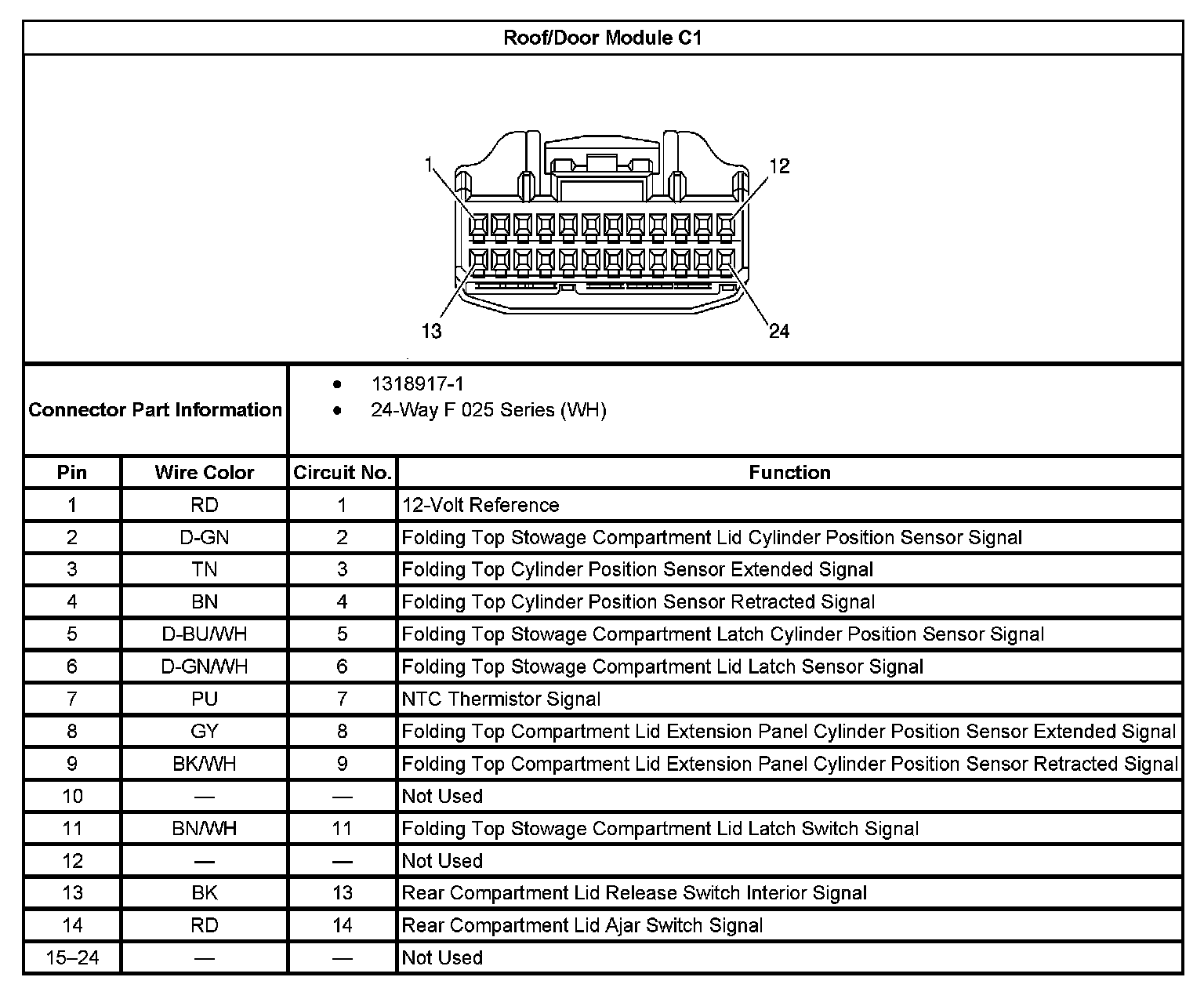

Roof/Door Module C1:

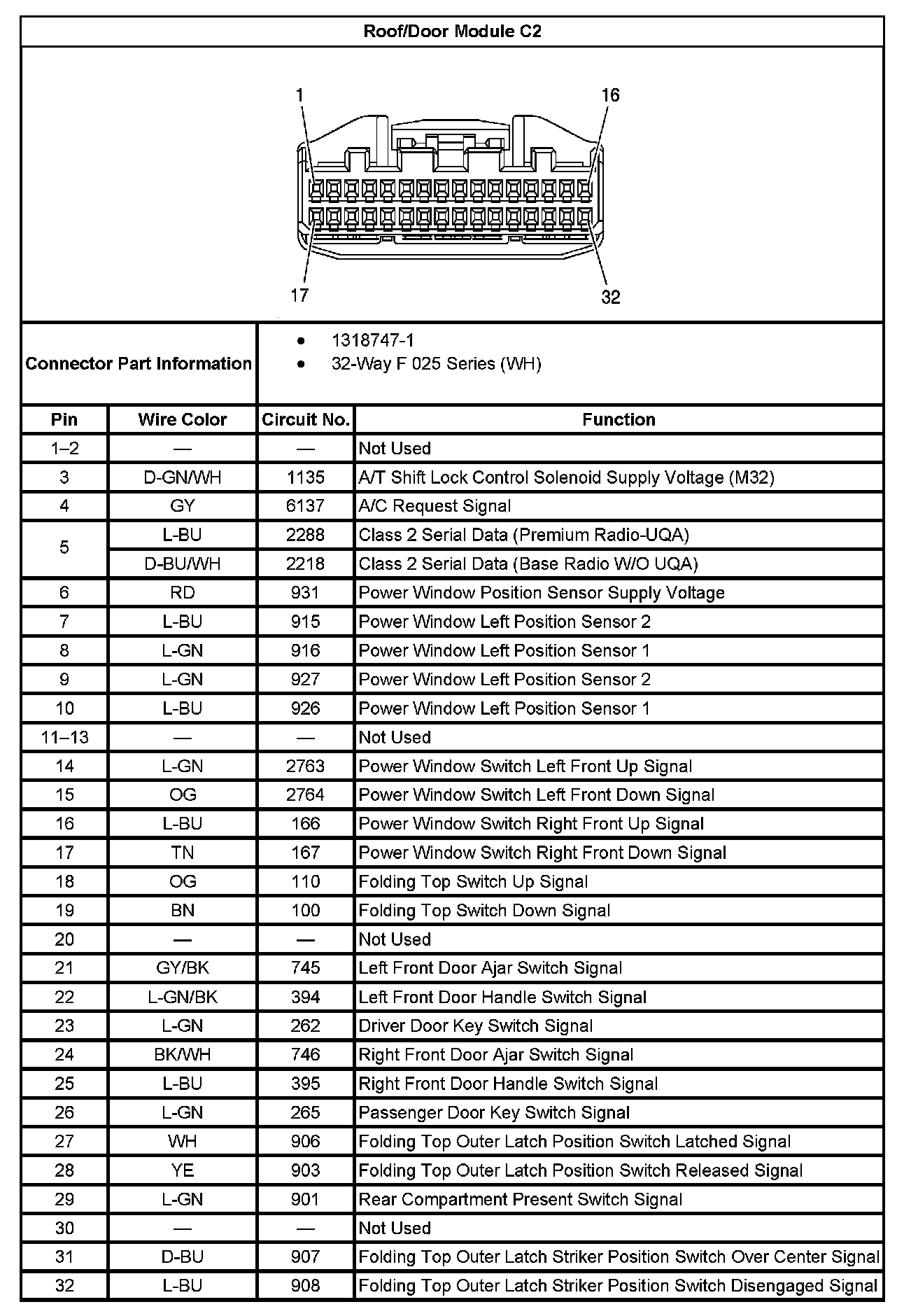

Roof/Door Module C2:

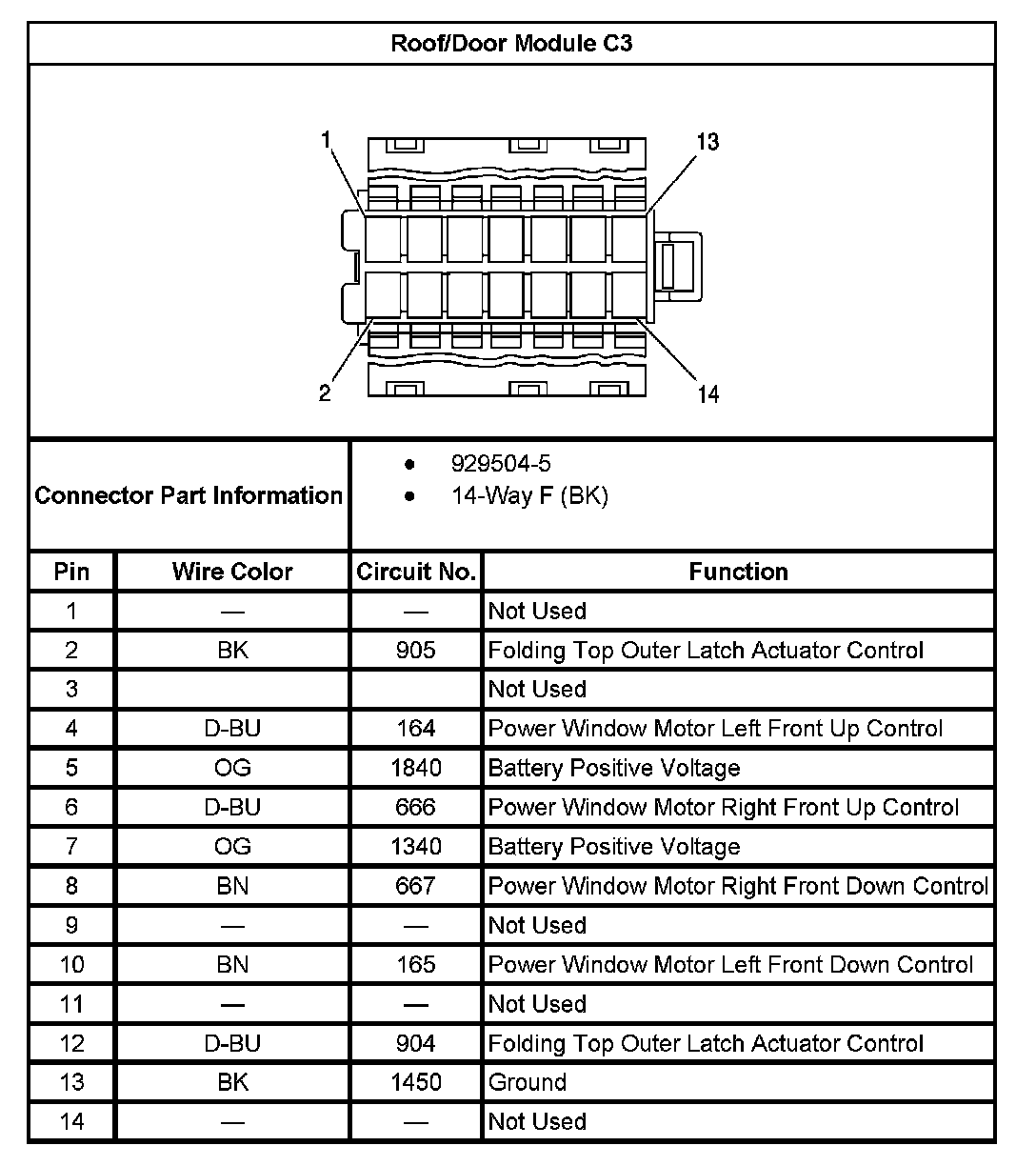

Roof/Door Module C3:



Roof/Door Module C4:
