Home >> Chevrolet >> 2007 >> TrailBlazer 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ambient Light Sensor

Ambient Light Sensor

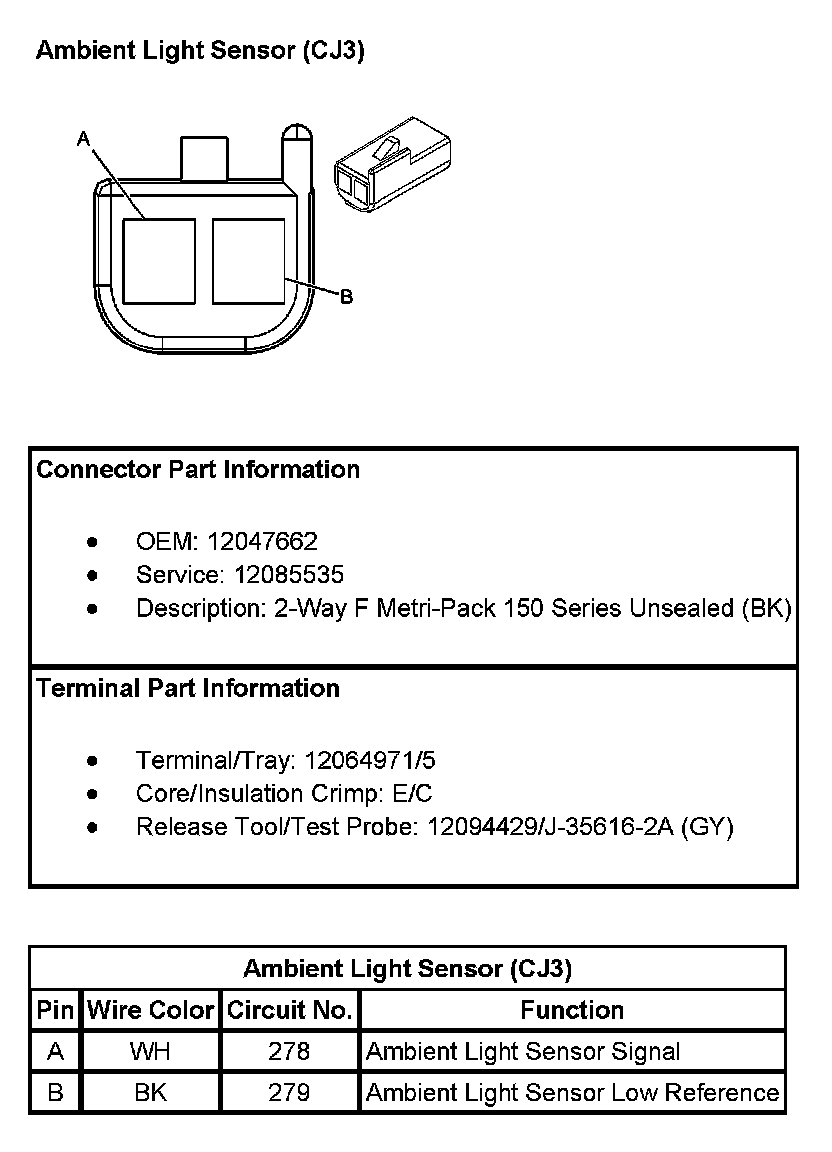

Ambient Light Sensor (With RPO Code CJ3):
