Home >> Chevrolet >> 2007 >> TrailBlazer 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Fluid Pressure Sensor/Switch, A/T

Fluid Pressure Sensor/Switch, A/T

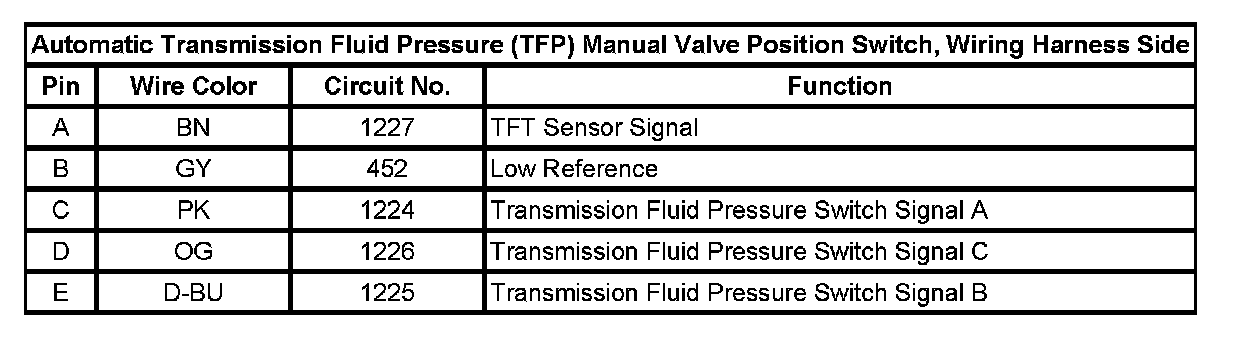

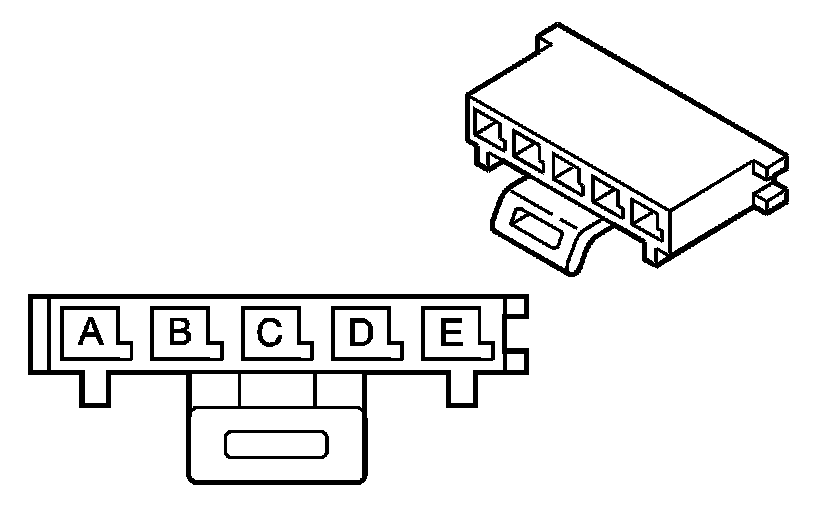

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side







Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
