Home
>>
Chevrolet
>>
2007
>>
TrailBlazer 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling System
Connector End Views

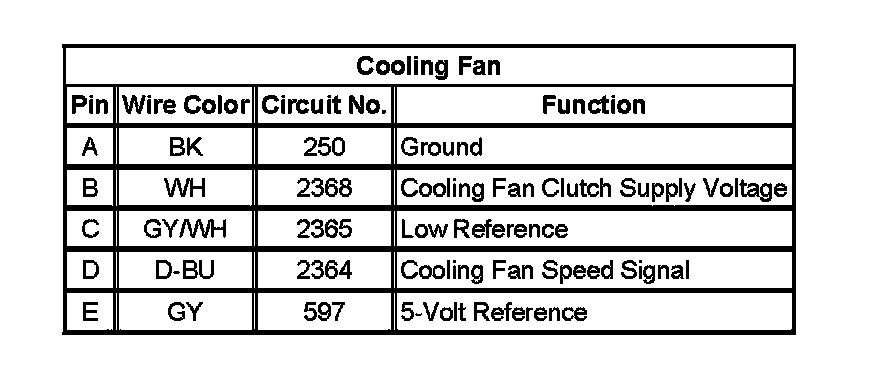

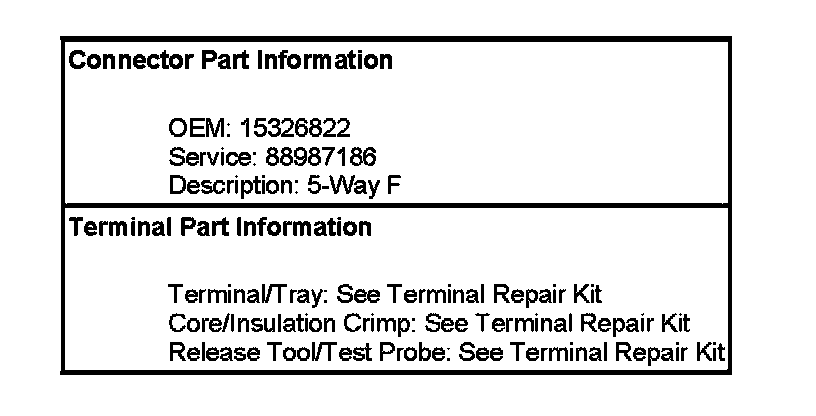

Cooling Fan:
