Transmission Speed Sensor, M/T




Component Connector End Views

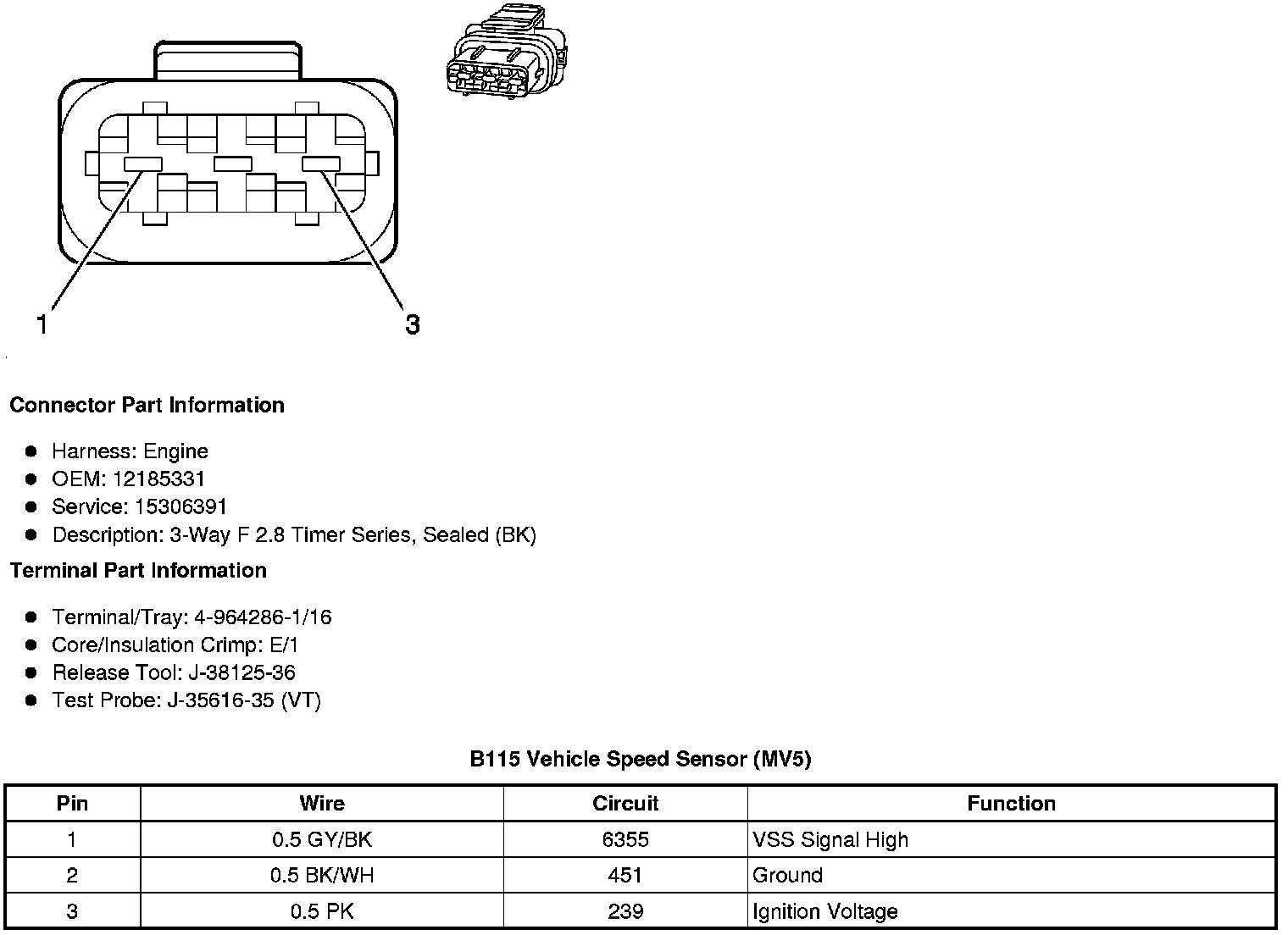

B115 Vehicle Speed Sensor (MV5)

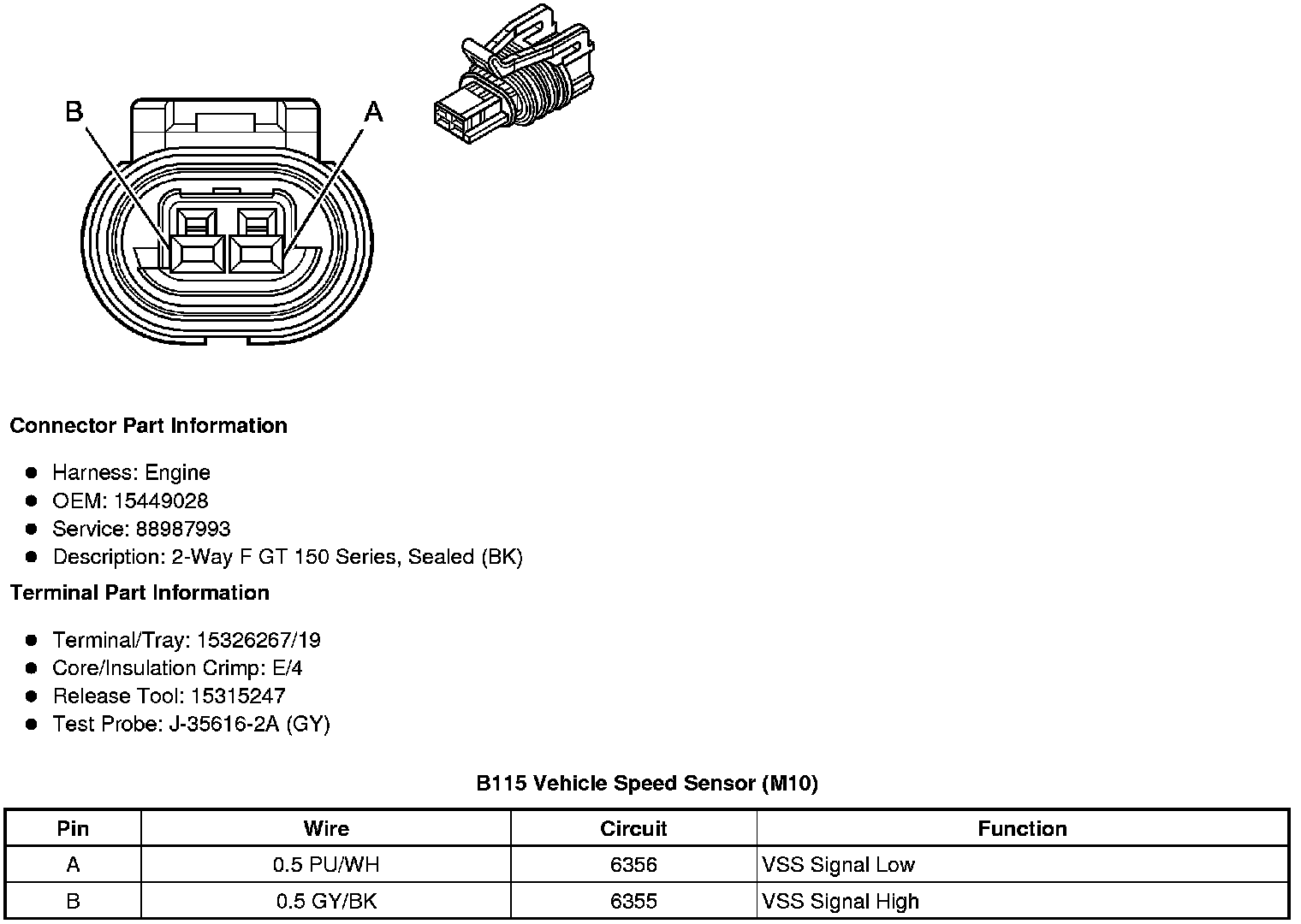

B115 Vehicle Speed Sensor (M10)
