Fog/Driving Lamp




Component Connector End Views

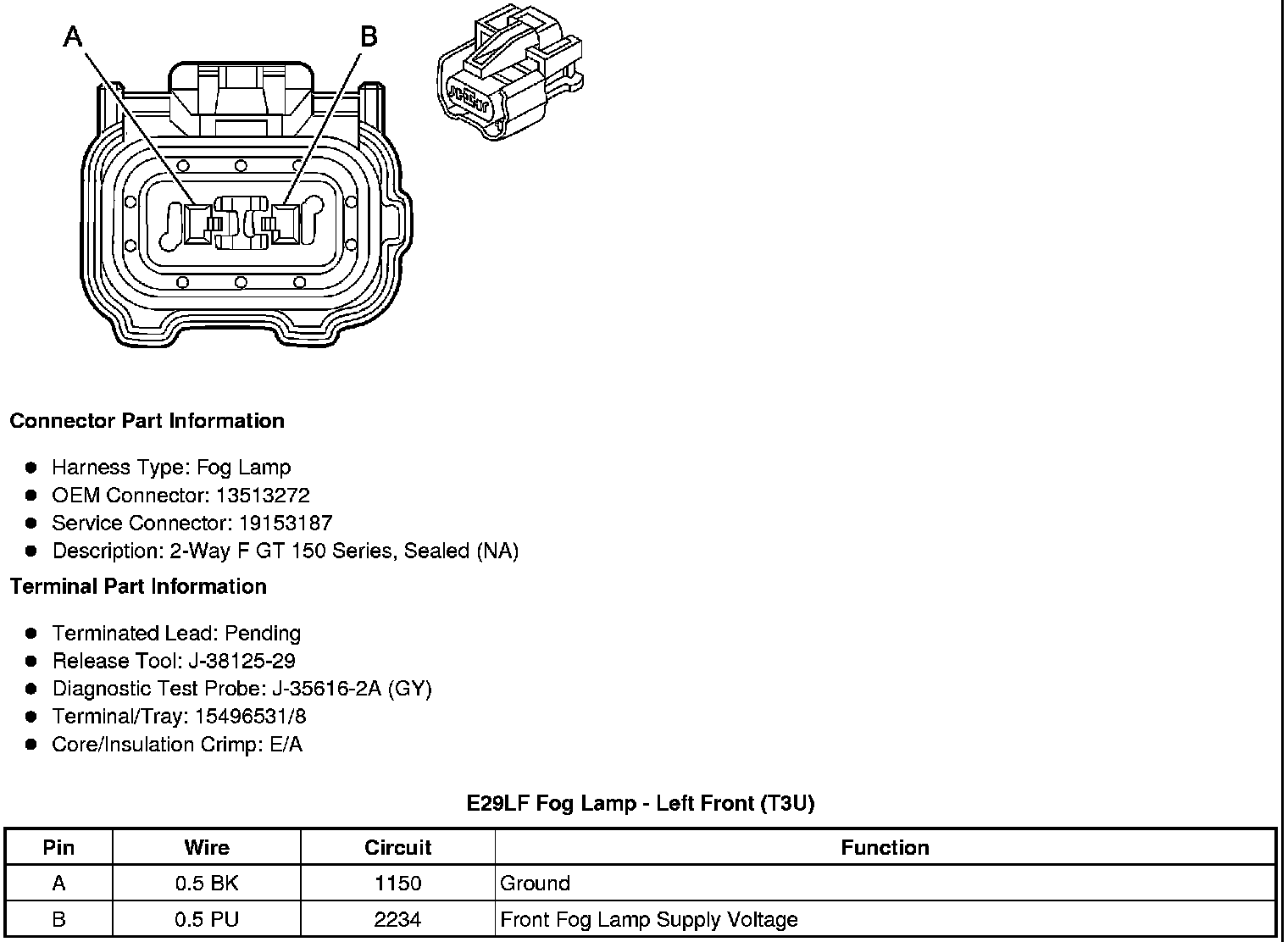

E29LF Fog Lamp - Left Front (T3U)





E29RF Fog Lamp - Right Front (T3U)
