Hybrid/EV Battery Interface Control Module 3 X2 K112C
Hybrid/EV Battery Interface Control Module 3 X2 K112C

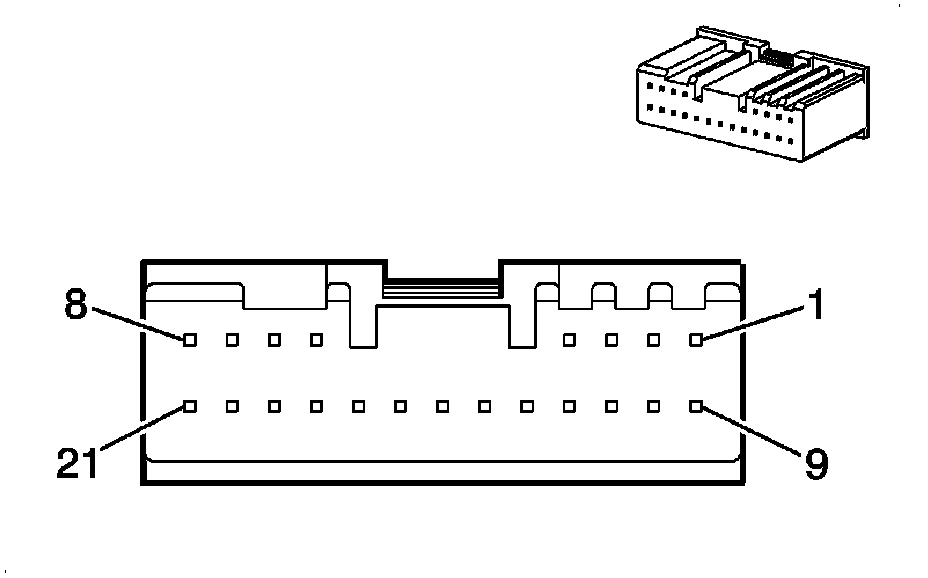

Component Connector End Views

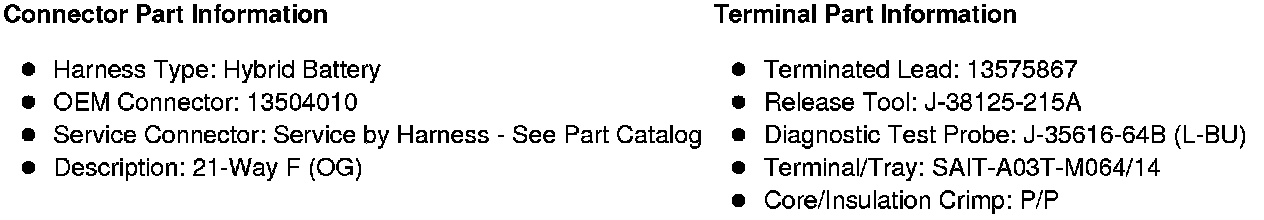

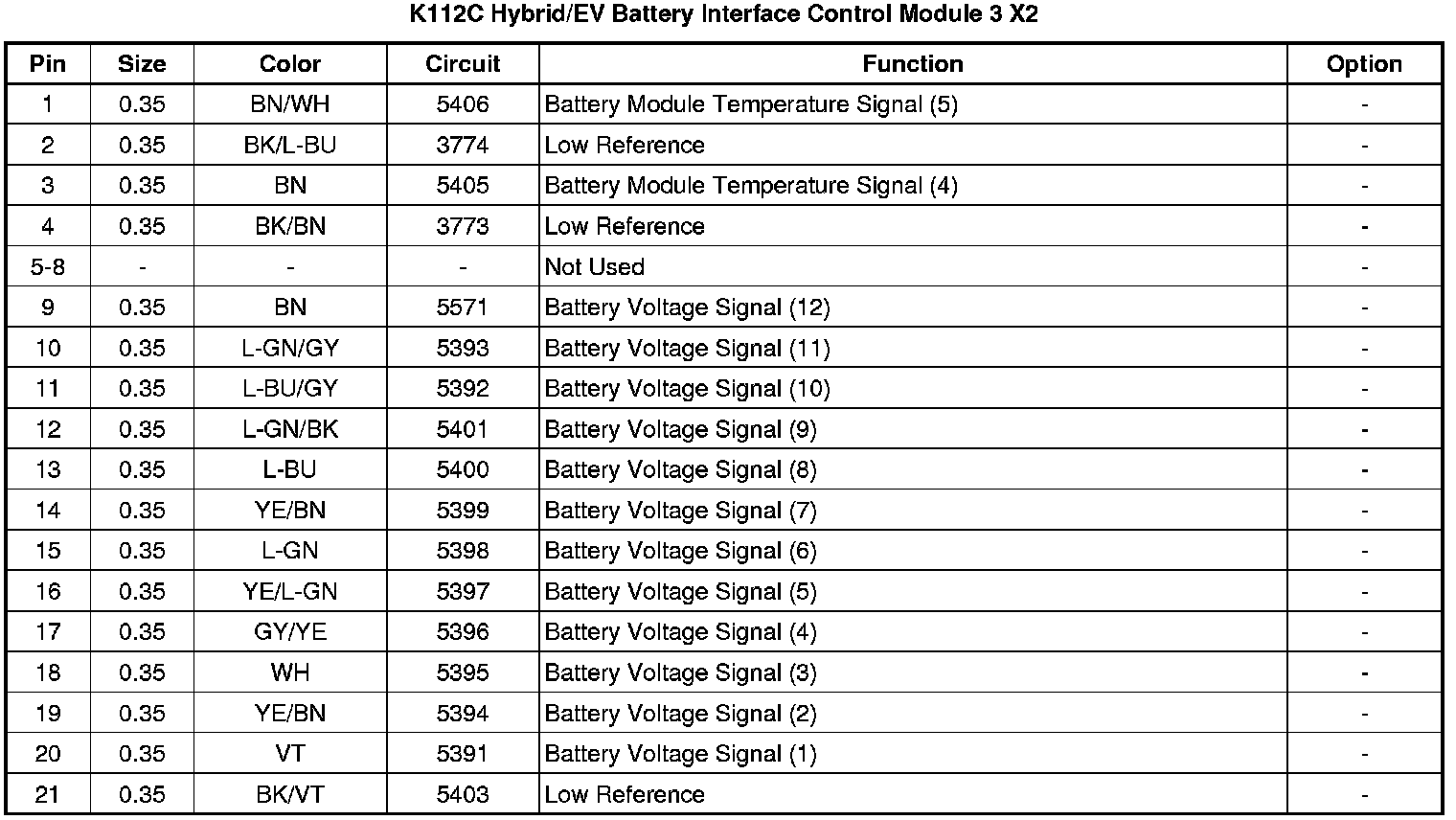

K112C Hybrid/EV Battery Interface Control Module 3 X2
