Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Speed Sensor, A/T >> Output Speed Sensor Connector

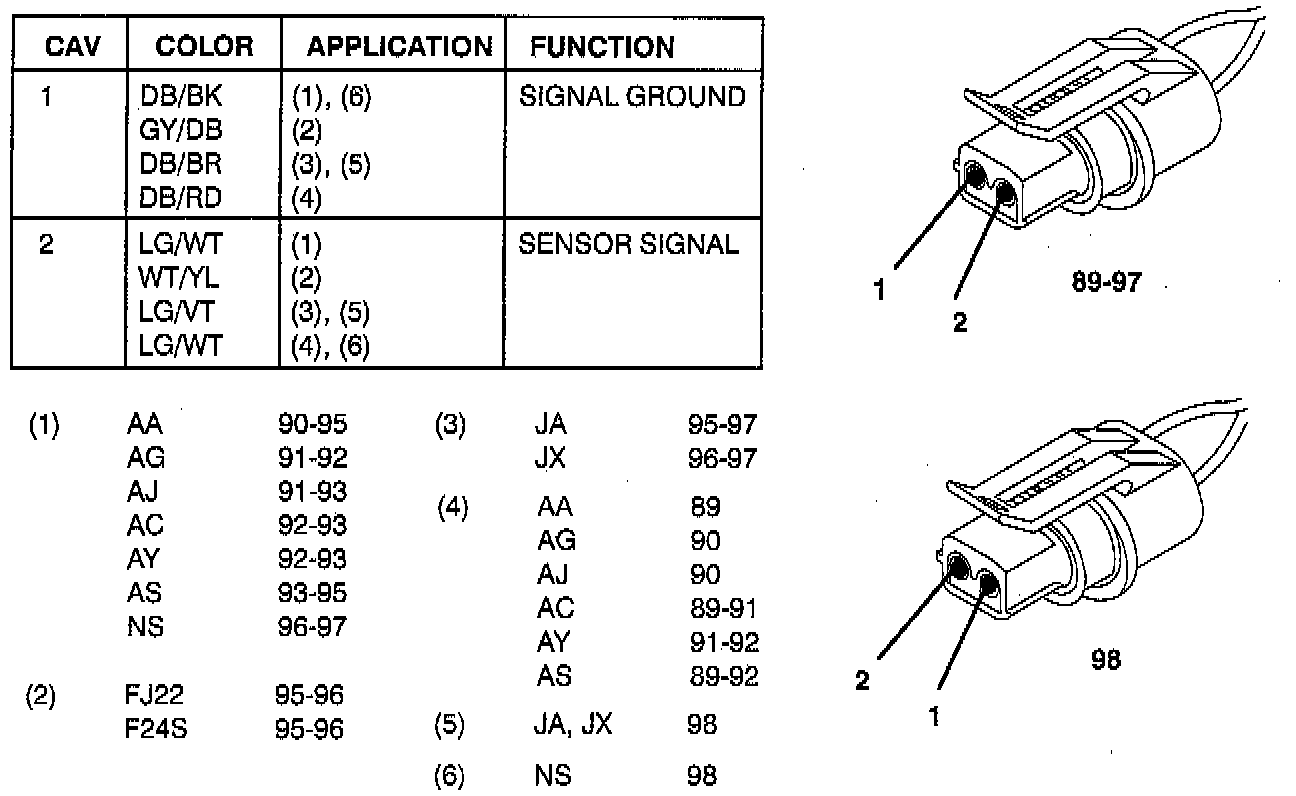

Output Speed Sensor Connector

Output Speed Sensor:
