Electronic Brake Control Module: Service and Repair

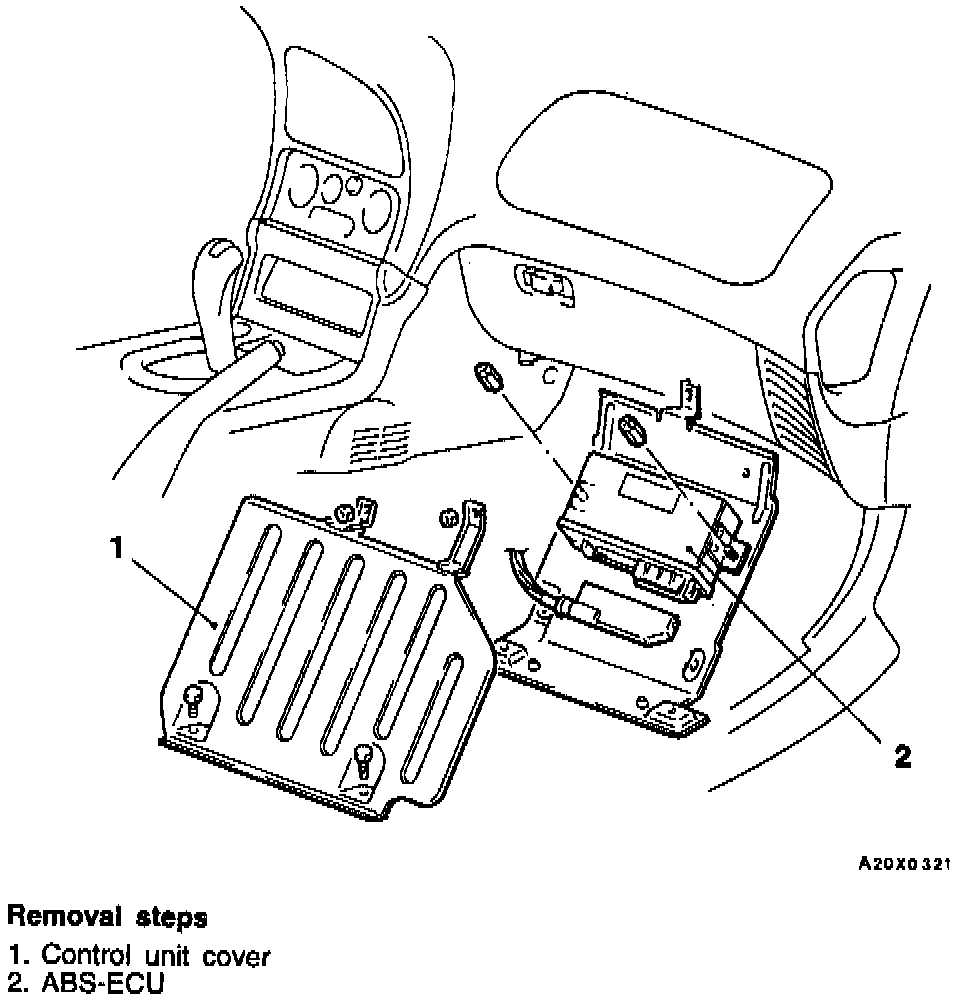

ABS-ECU Removal And Installation:






REMOVAL
1. Remove RH Cowl side trim and front scuff plate.
2. Remove control unit cover.
3. Remove Antilock Brake System Electronic Control Module.

INSTALLATION
1. Follow removal procedure in reverse order.
