Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Cable >> Testing and Inspection >> Spark Plug Cable Resistance Check

Spark Plug Cable Resistance Check

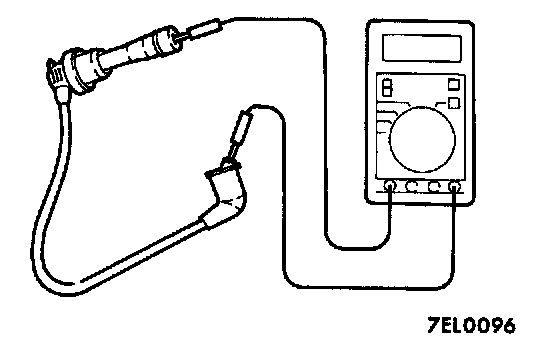

Measure the resistance of the all spark plug leads.
1. Check cap and coating for cracks.
2. Measure resistance.

Limit: max. 22 kOhms
