Ignition Power Transistor

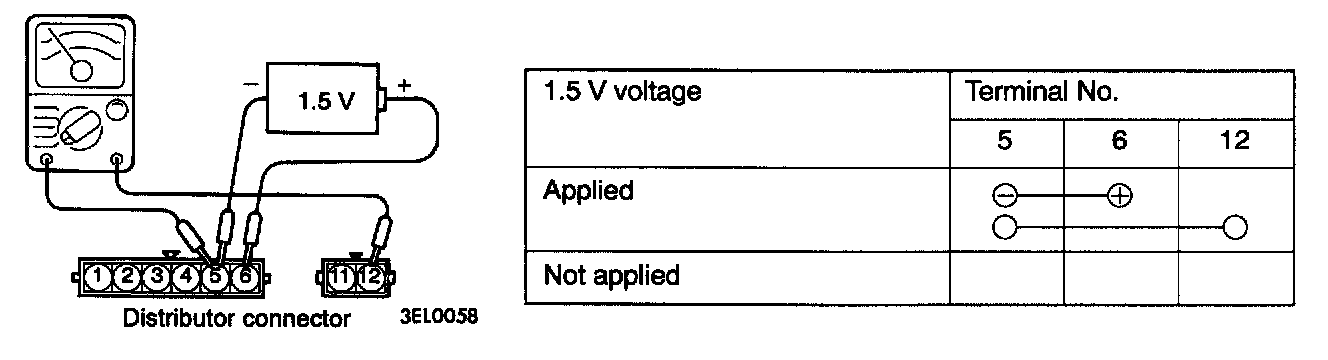

1. Disconnect the ignition power transistor connector. Check the continuity between terminals 5 and 12 with the voltage applied and not applied.

NOTE: An analog type ohmmeter should be used.

2. Replace the ignition power transistor if it is defective.
