A/C Heater Control (MTC)
A/C Heater Control (MTC)

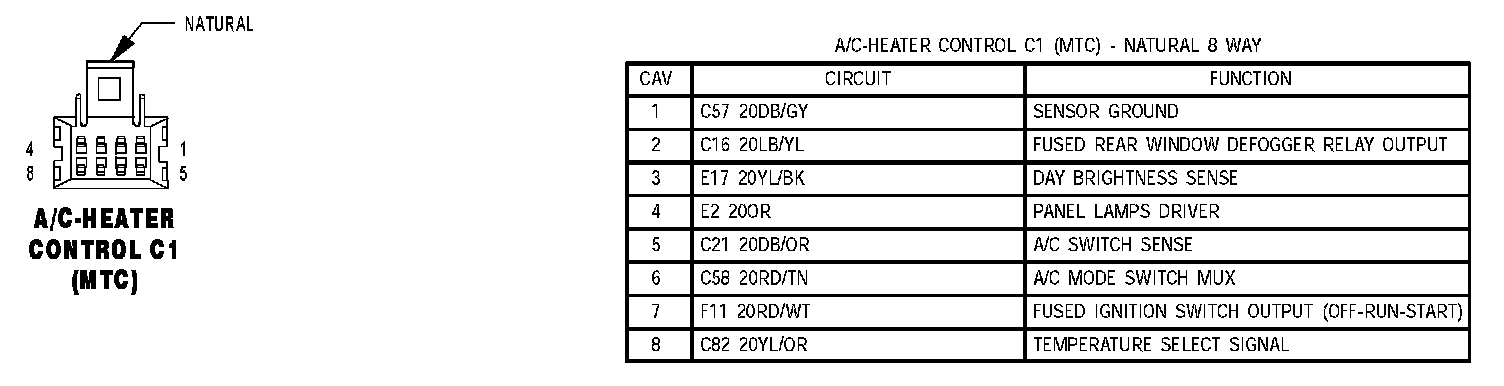

A/C Heater Control C1 (MTC):

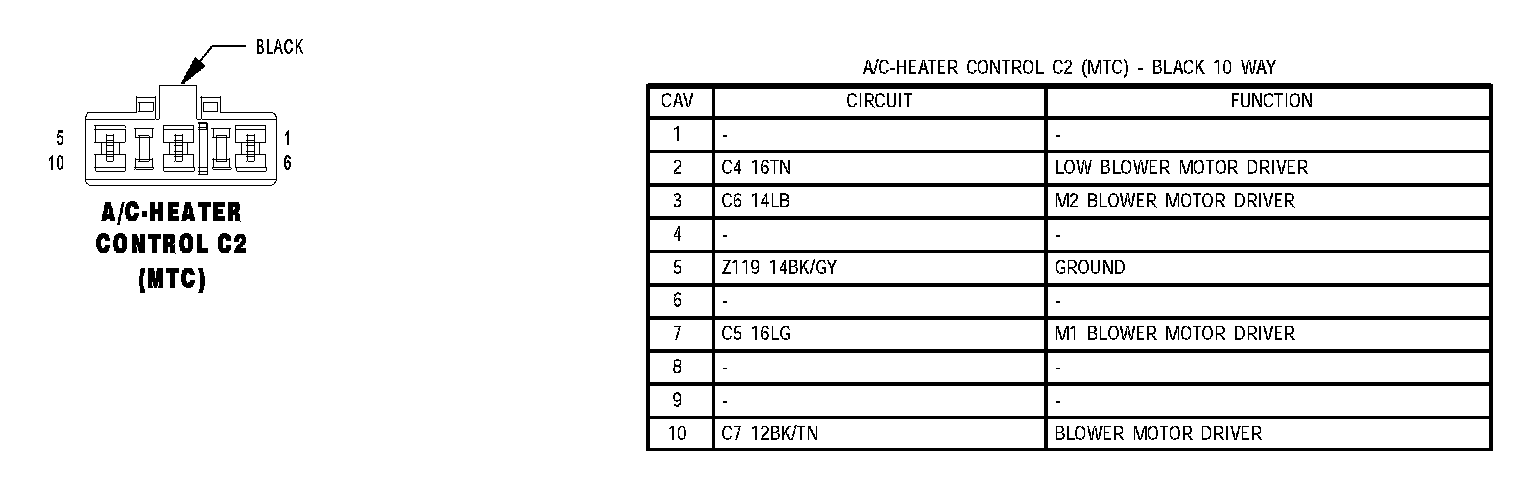

A/C Heater Control C2 (MTC):
