Home >> Chrysler >> 2009 >> 300 SRT-8 V8-6.1L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly

Differential Assembly





REAR AXLE - G648

AXLE

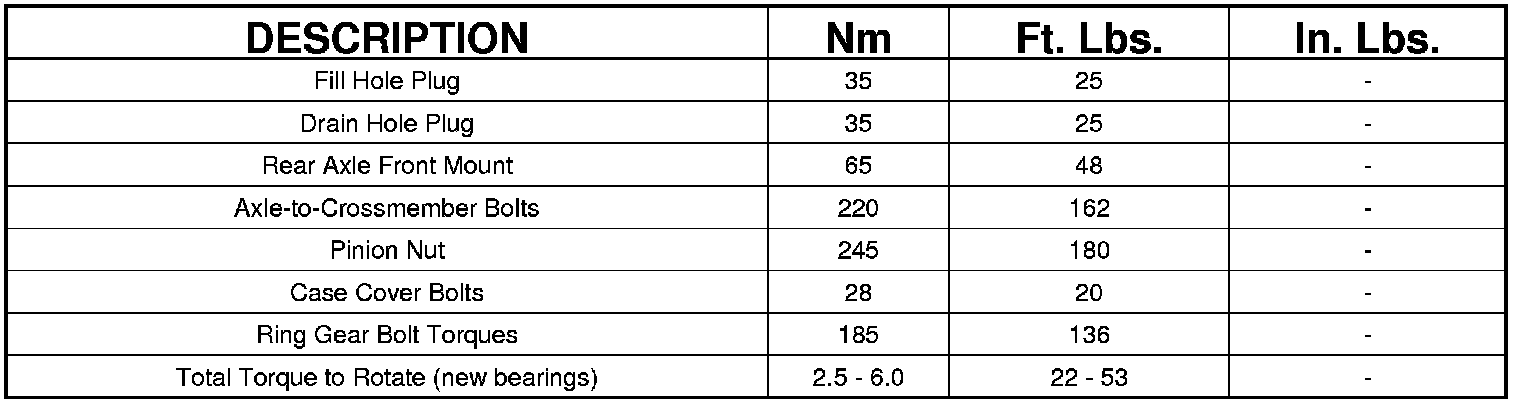

TORQUE
