Input Speed Sensor - Installation

INSTALLATION

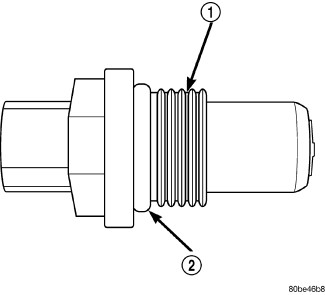

1. Verify O-ring (2)(Figure 1) is installed into position.

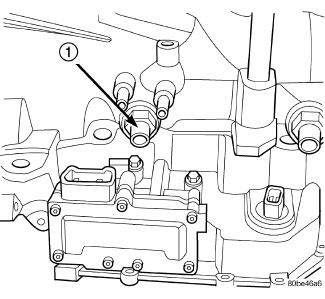

2. Install and tighten input speed sensor (1)(Figure 2) to 27 Nm (20 ft. lbs.).

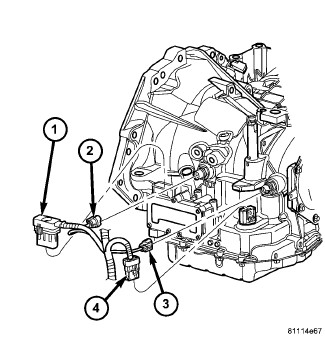

3. Connect speed sensor connector (4)(Figure 3).
4. Connect battery negative cable.
