Air Temperature Sensor ( Ambient / Intake ): Specifications

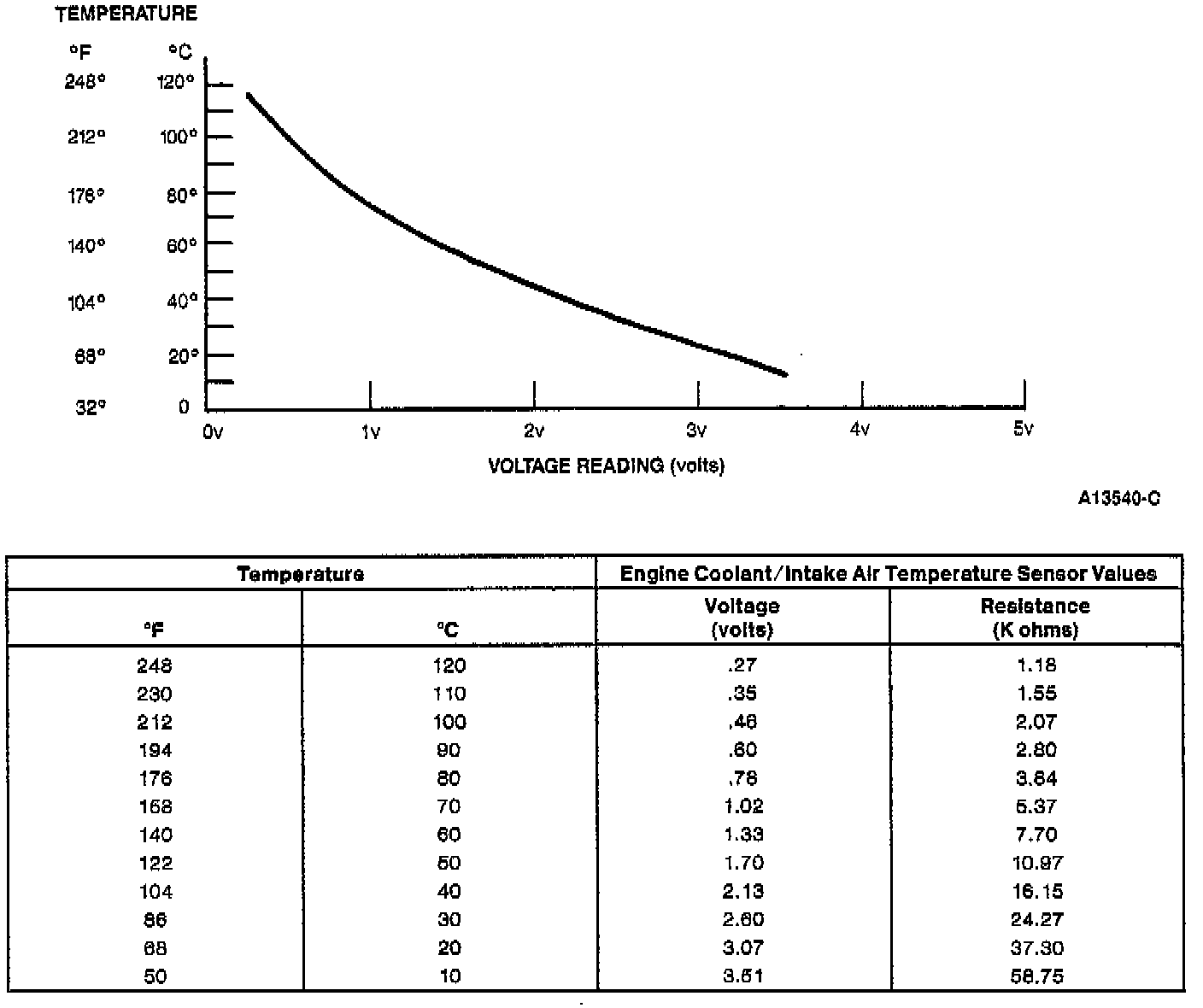

ECT/IAT Sensor Temperature/Voltage Chart:
