Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Transmission Range (TR) Sensor Diagnosis Chart

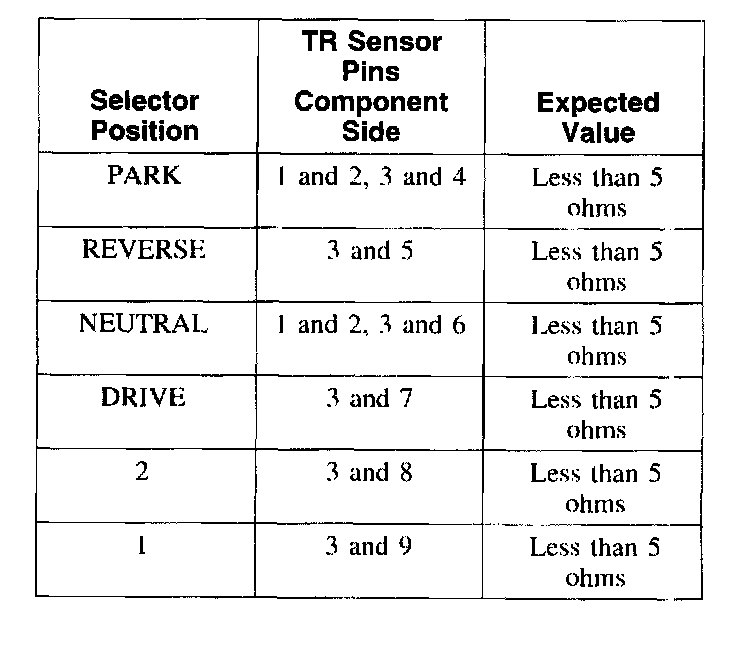

Transmission Range (TR) Sensor Diagnosis Chart

Transmission Range (TR) Sensor Diagnosis Chart
