Home >> Ford >> 2011 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Pressure Module >> C4321A Tire Pressure Monitor/Vehicle Security Module (TPM/VSM)

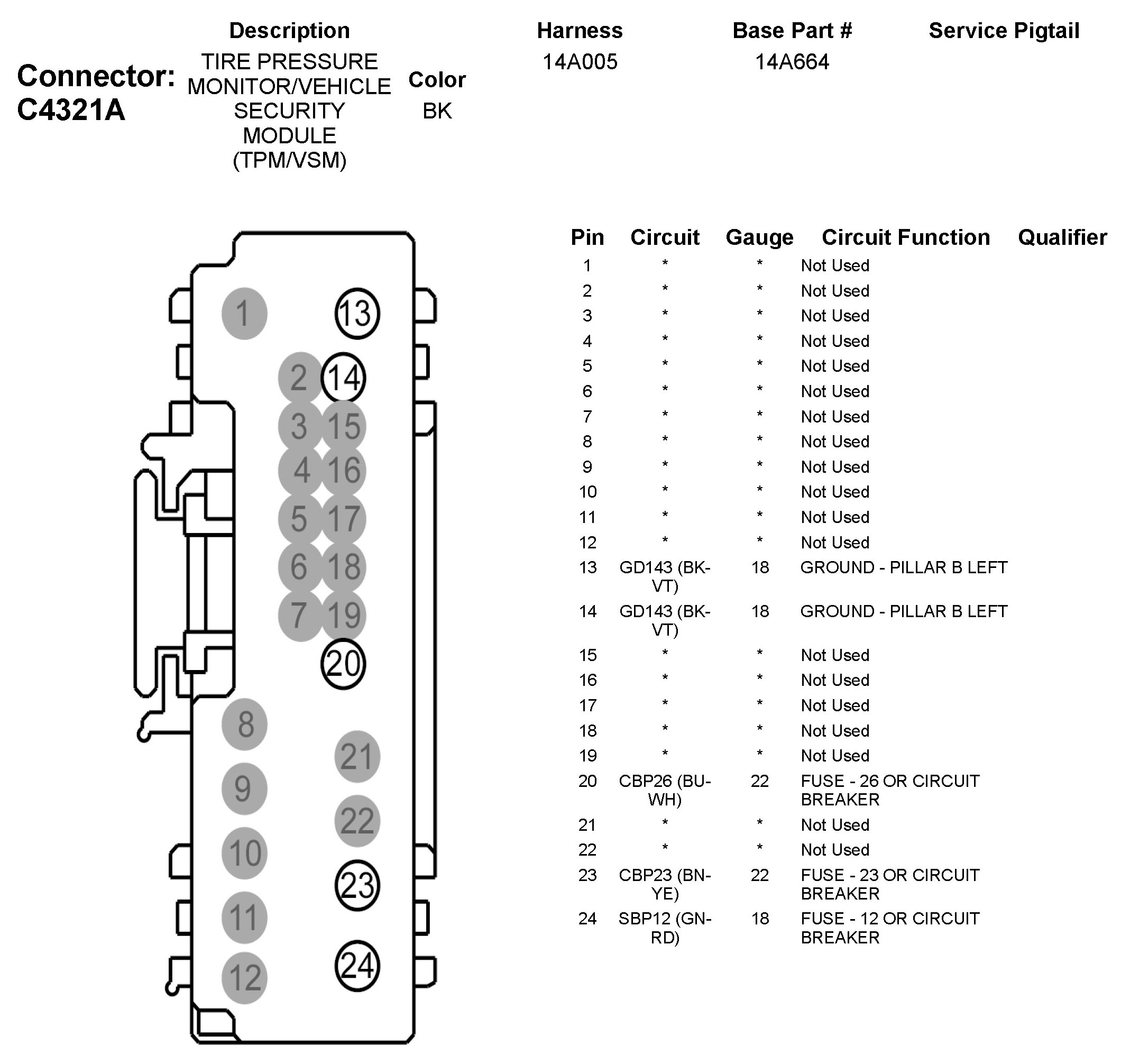

C4321A Tire Pressure Monitor/Vehicle Security Module (TPM/VSM)
