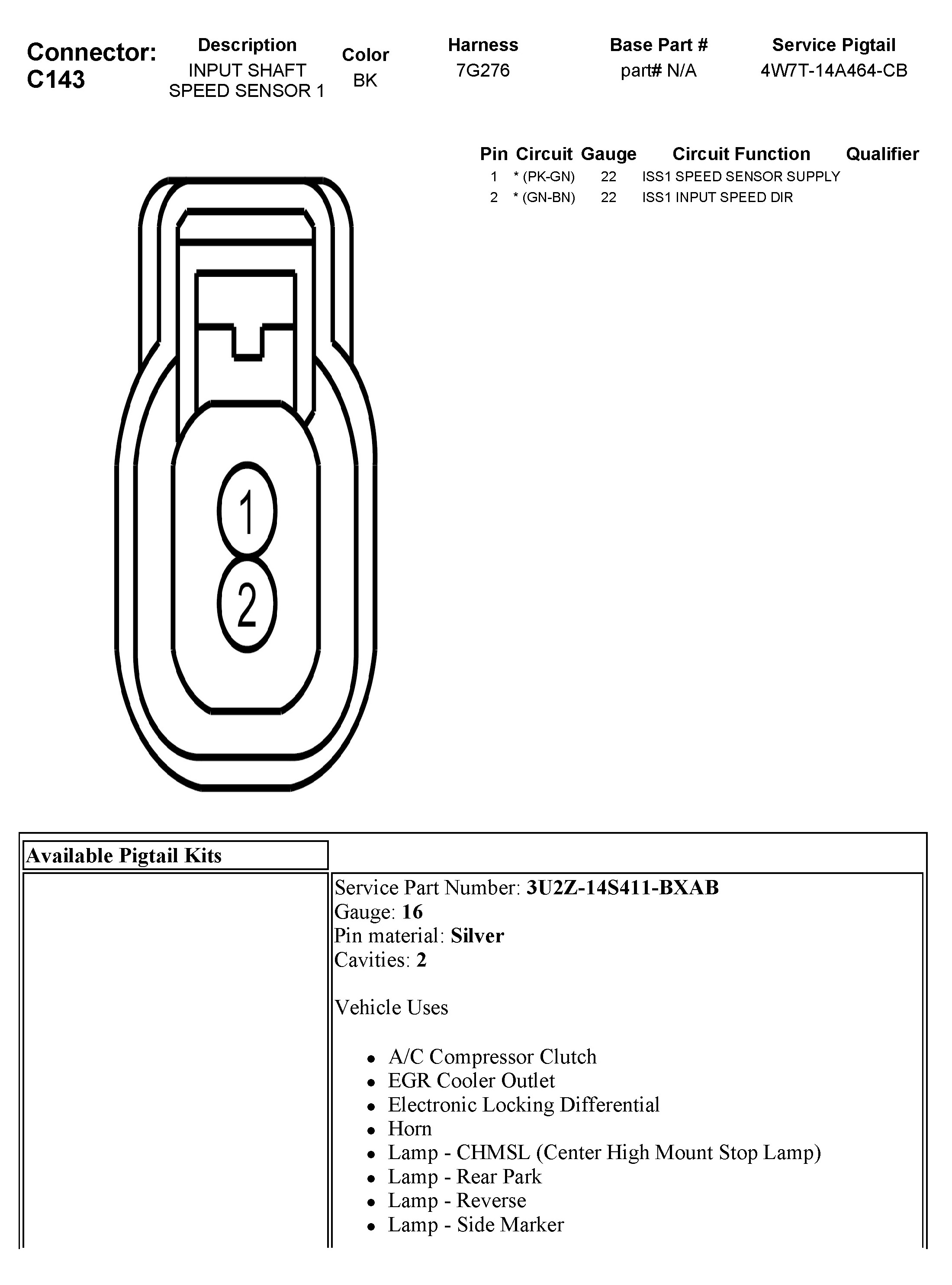

Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatically Shifted Manual Transmission/Transaxle >> Transmission Speed Sensor, ASMT >> C143 Input Shaft Speed Sensor 1
