Fuel Pump/Trailer Brake Control Module

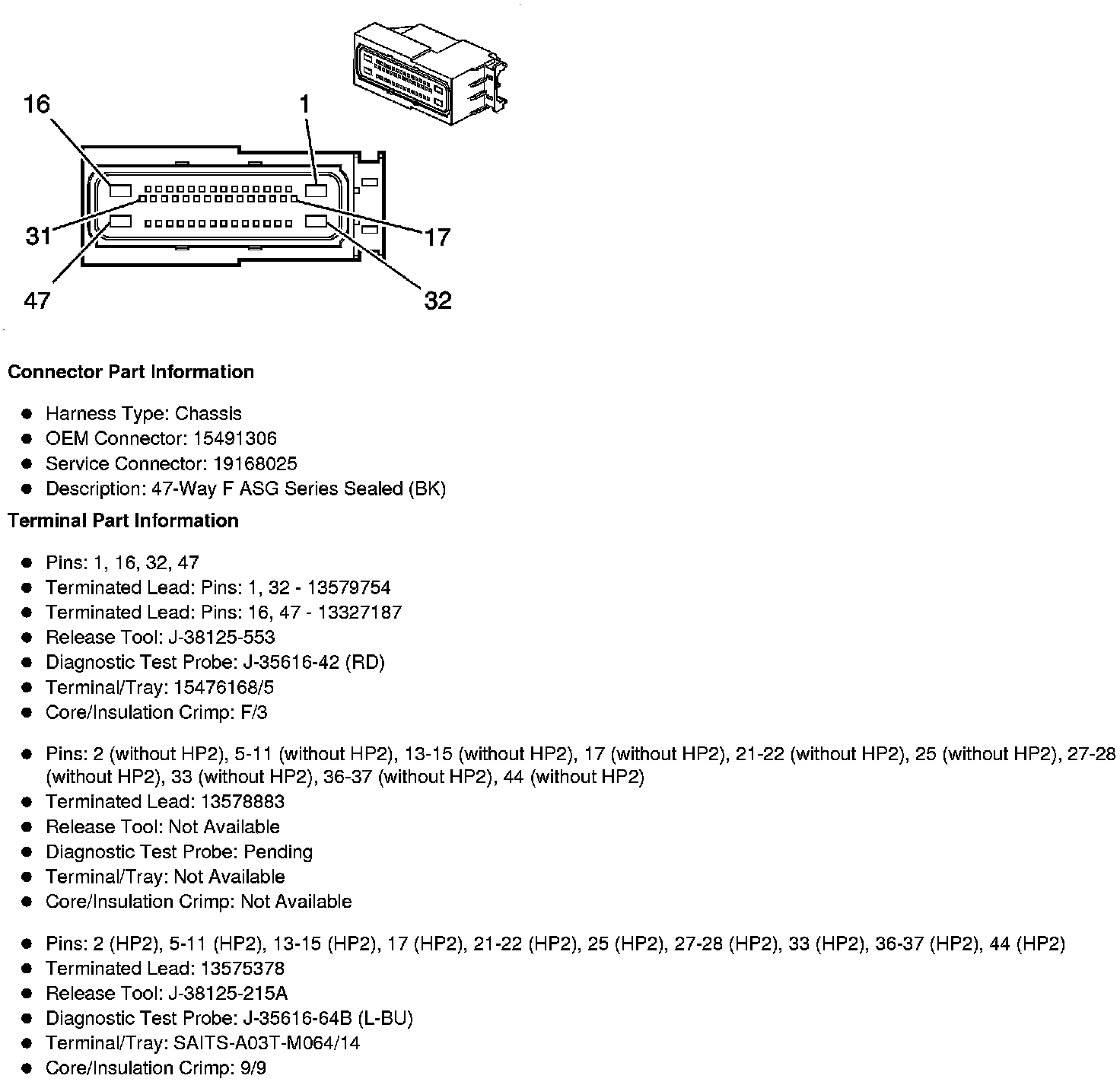

Component Connector End Views

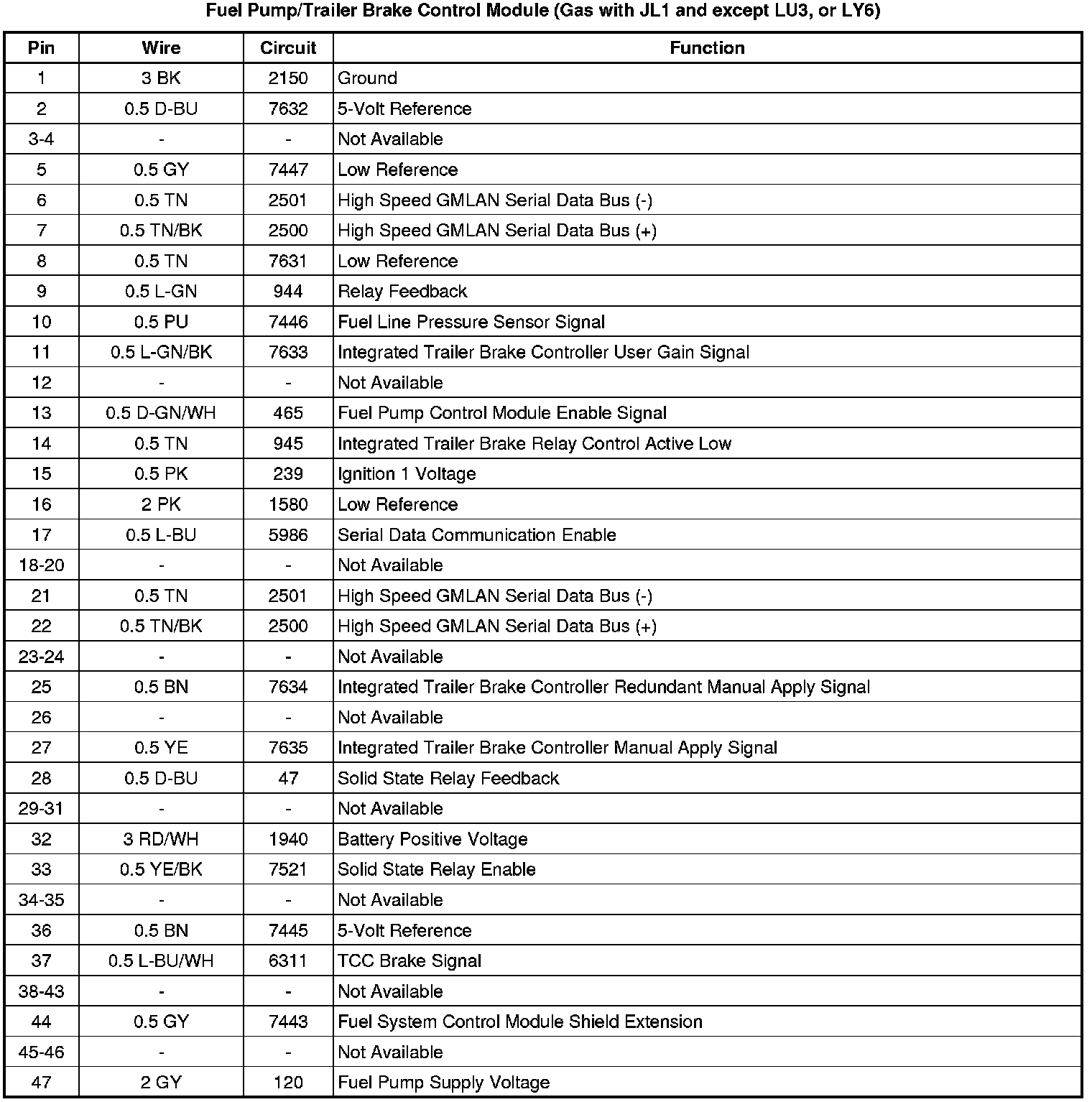

Fuel Pump/Trailer Brake Control Module (Gas with JL1 and except LU3, or LY6)
