Home >> Honda >> 2009 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 202 Driver's Power Window Motor Connector View

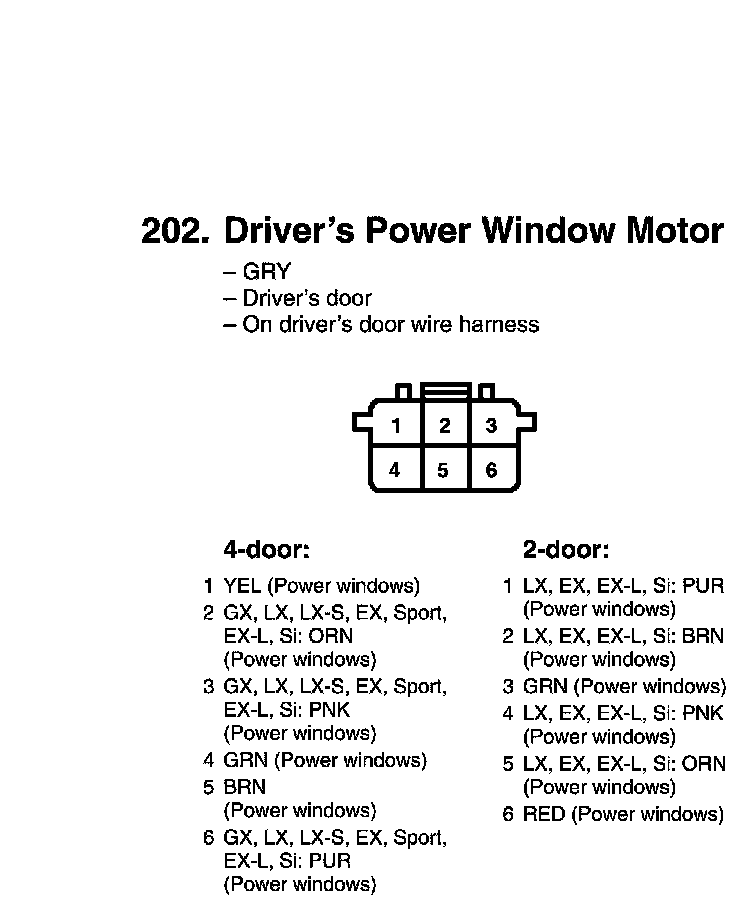

View 202 Driver's Power Window Motor Connector View
