Home >> Honda >> 2012 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse/Relay Boxes Locations Under-Dash Fuse/Relay Box - Front Side

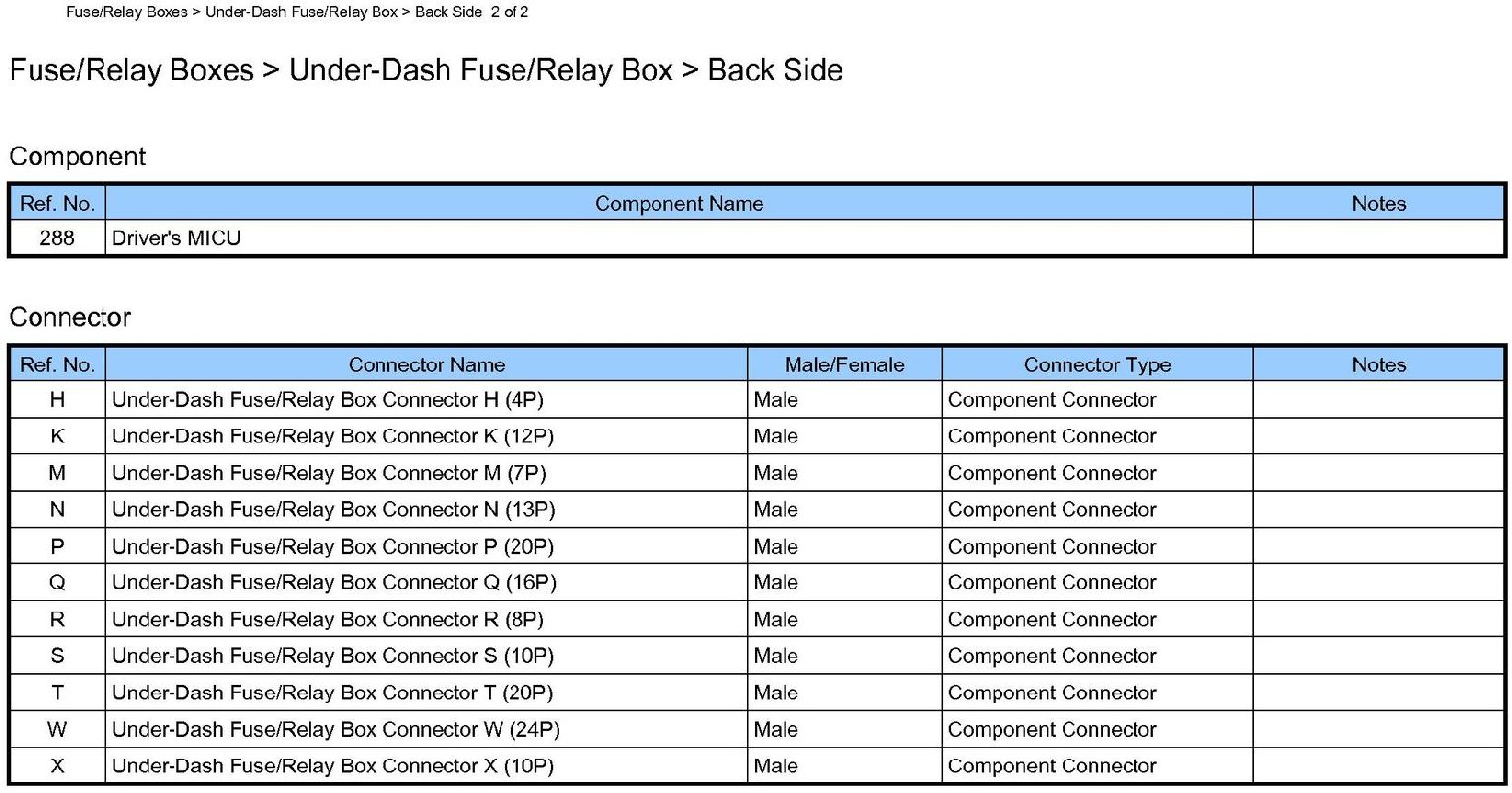

Fuse/Relay Boxes Locations Under-Dash Fuse/Relay Box - Front Side
