Control Module HVAC

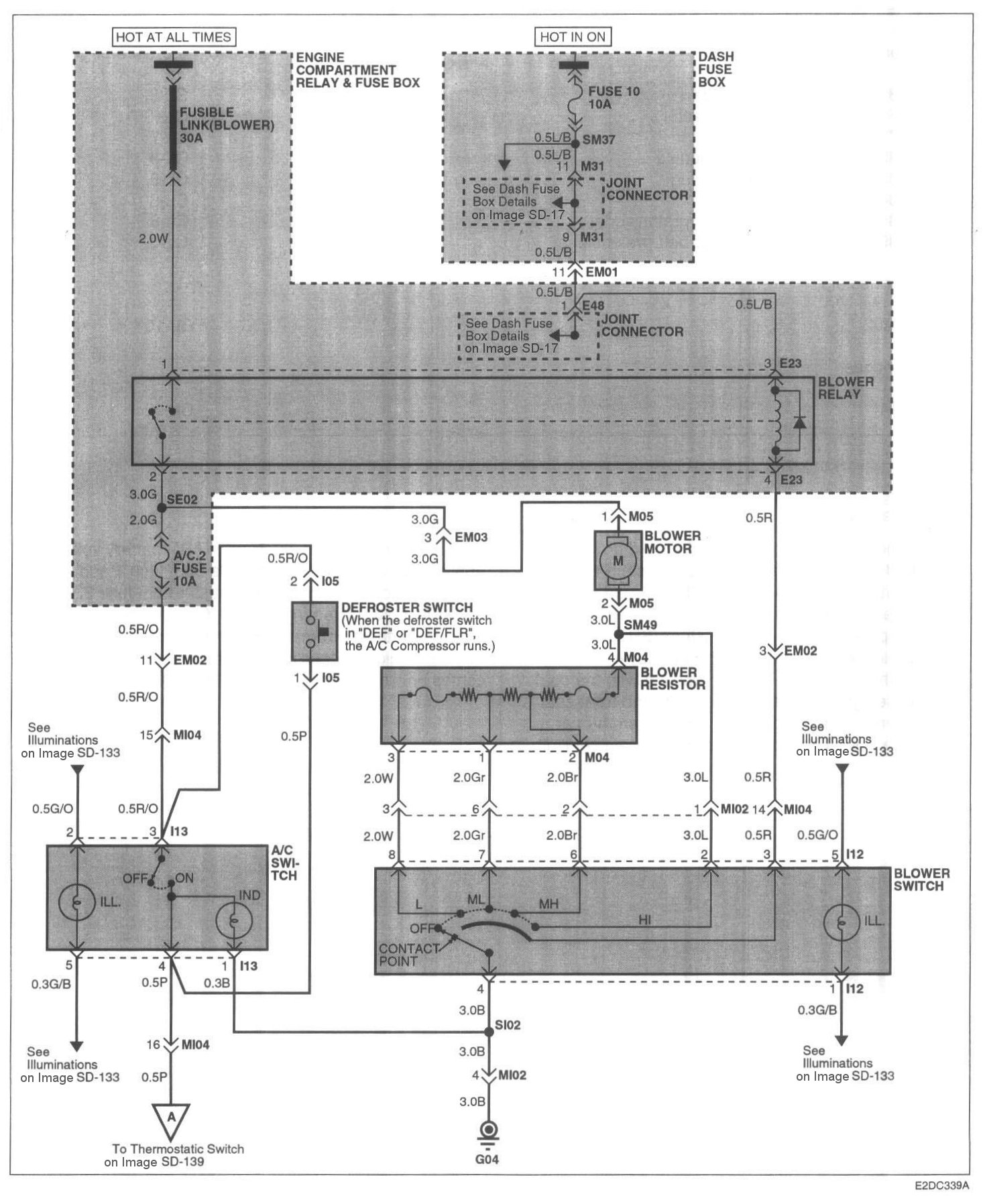

Image SD-138 Blower And A/C Controls (1):

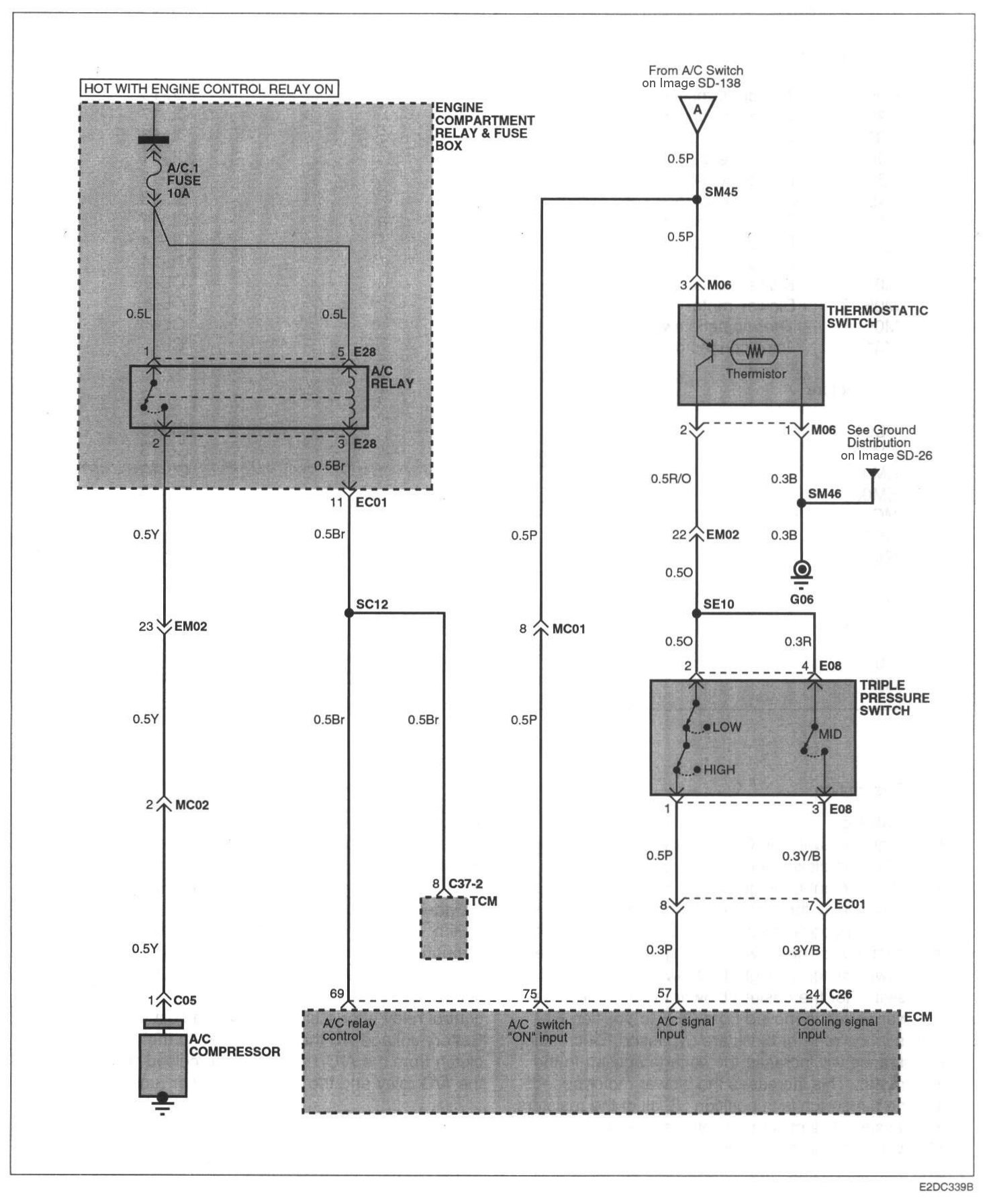

Image SD-139 Blower And A/C Controls (2):
