Electronic Brake Control Module: Testing and Inspection

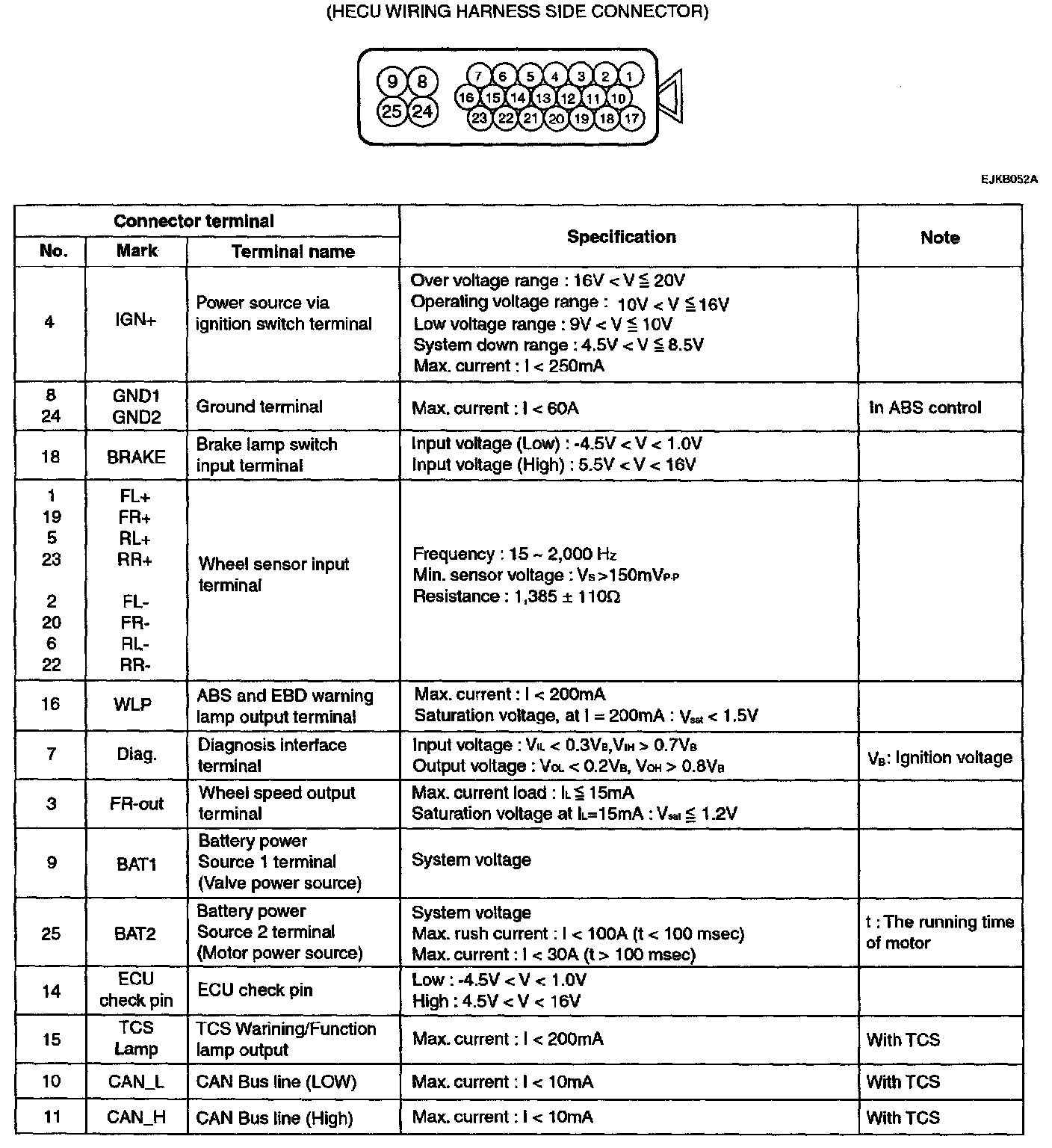

INSPECTION AT HECU TERMINALS





(HECU WIRING HARNESS SIDE CONNECTOR)
