Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module >> Rear Seat Warmer Module RH (W/O CCS)

Rear Seat Warmer Module RH (W/O CCS)

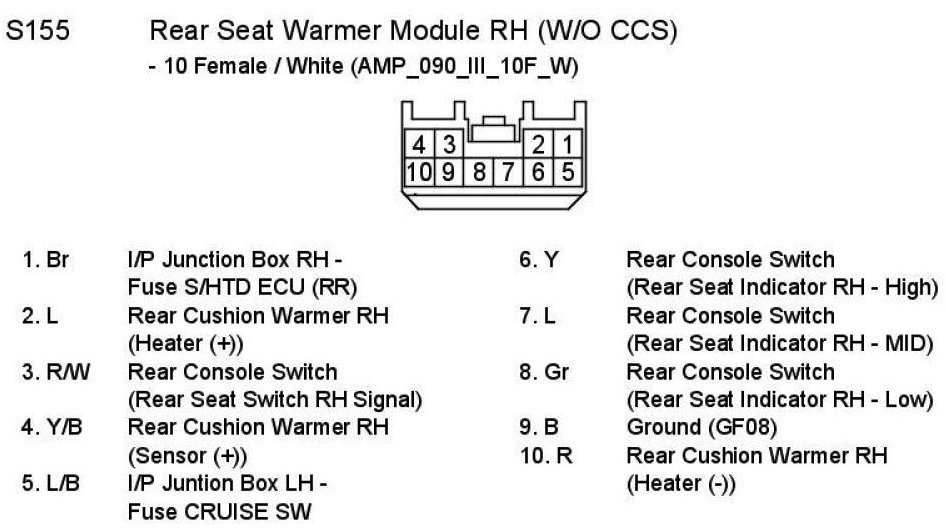

S155 Rear Seat Warmer Module RH (W/O CCS):
