Home >> Hyundai >> 2013 >> Accent L4-1.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

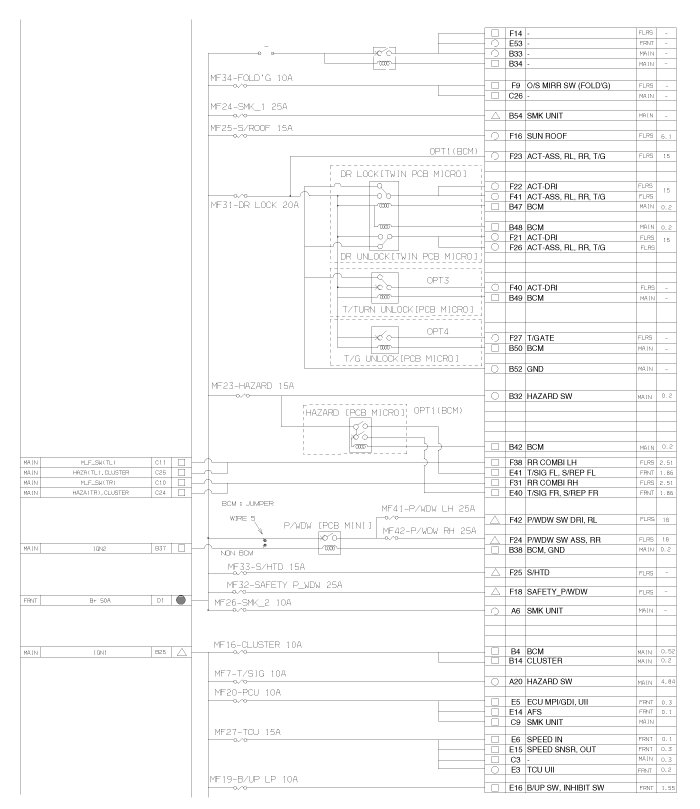

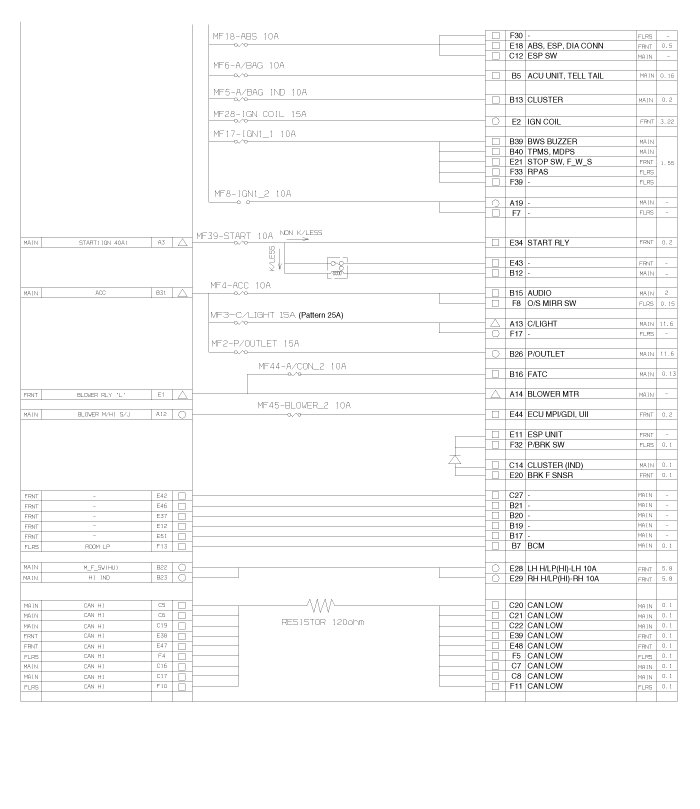

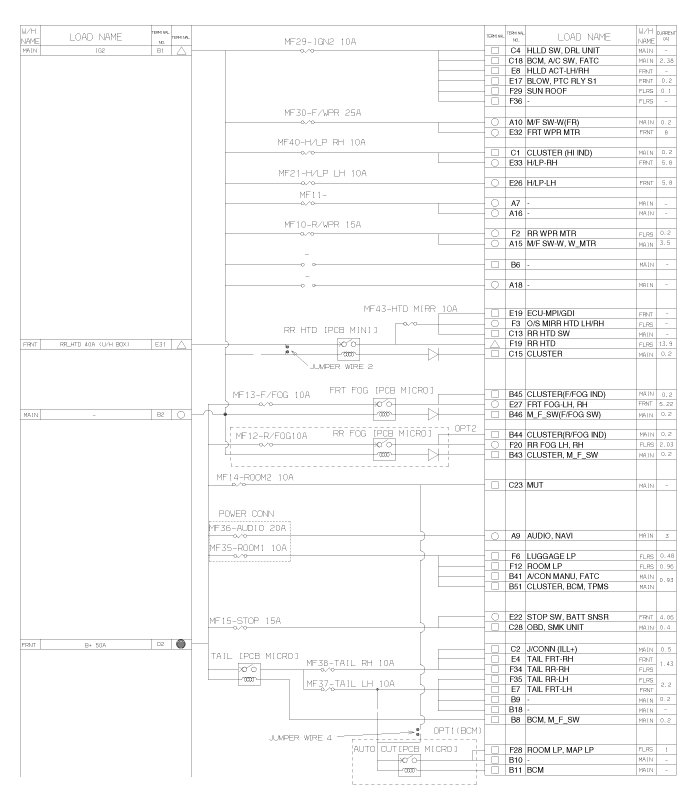

Circuit Diagram
